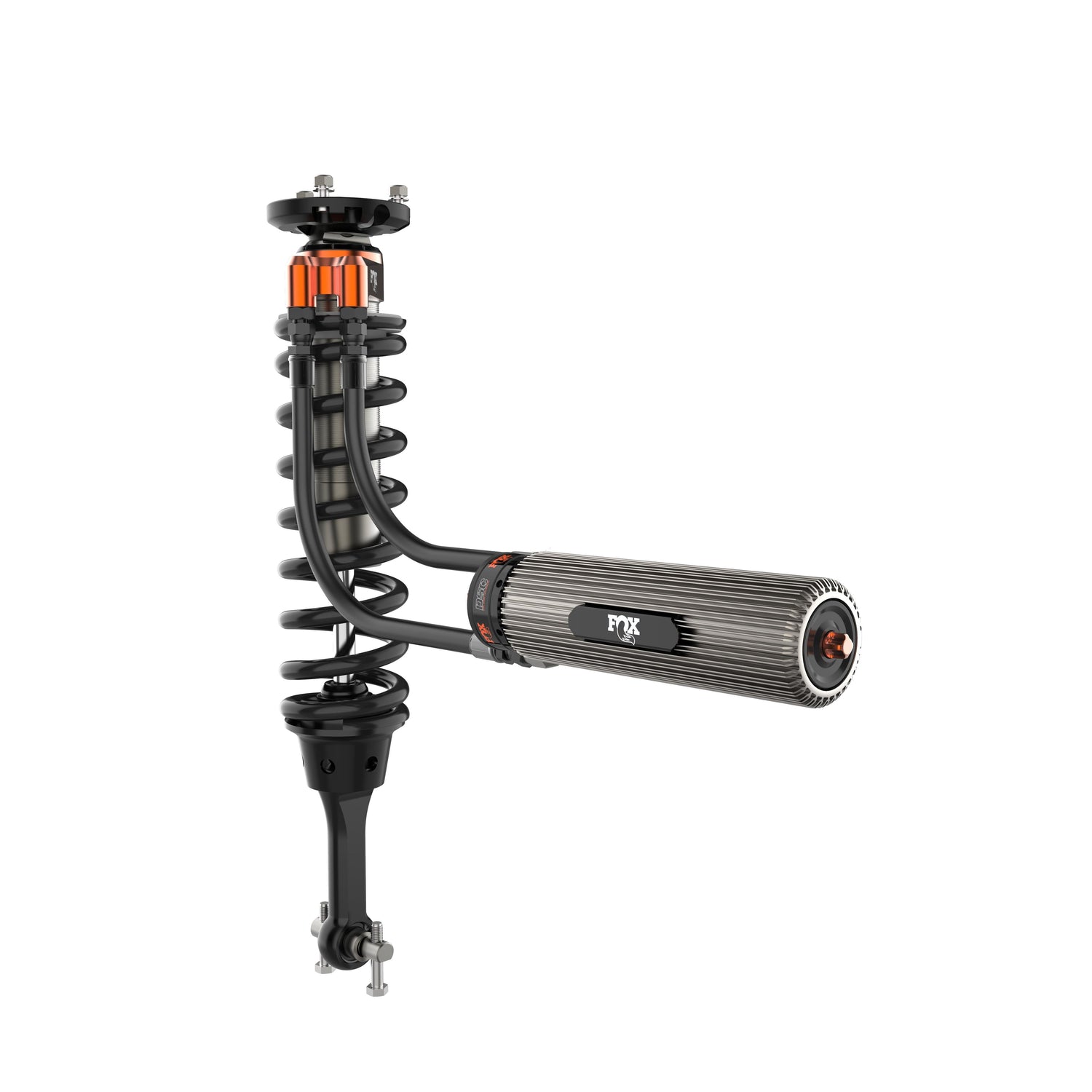

2021-2025 F-150 3.0 Series 2.5" Lift Internal Bypass Front R/R Coilovers w/ DSC (883-06-191)

Description

FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box.

Part Number: 883-06-191

Features

• 3.0" impact-extruded and CNC machined 6061-T6 hard-anodized aluminum Body
• Patented, internal bypass design
• Application-specific springs
• 7/8" stainless steel Shafts
• Vehicle-specific tuning maximizes performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Recirculating the Reservoir bridge keeps shock temperatures cool
• Finned Reservoir, with DSC adjuster
• Rear Shaft guards protect against roost

Specs:

• Travel: 5.24"
• Front Lift Height: 2.5"
• Extended Length: 22.49"
• Compressed Length: 17.25"
• Top Mount OEM
• Bottom Mount Bar Pin

Notes

• Requires Upper Control Arm
