2021-2025 Yukon/Tahoe/Suburban 3" Elite Leveling Kit W/ King 2.5 Shocks Front & Rear (510-P1237)

Description

Level out your 2021-2025 Yukon/Tahoe/Suburban with this all-inclusive 3" Elite Leveling Kit W/ King 2.5 Shocks Front & Rear.

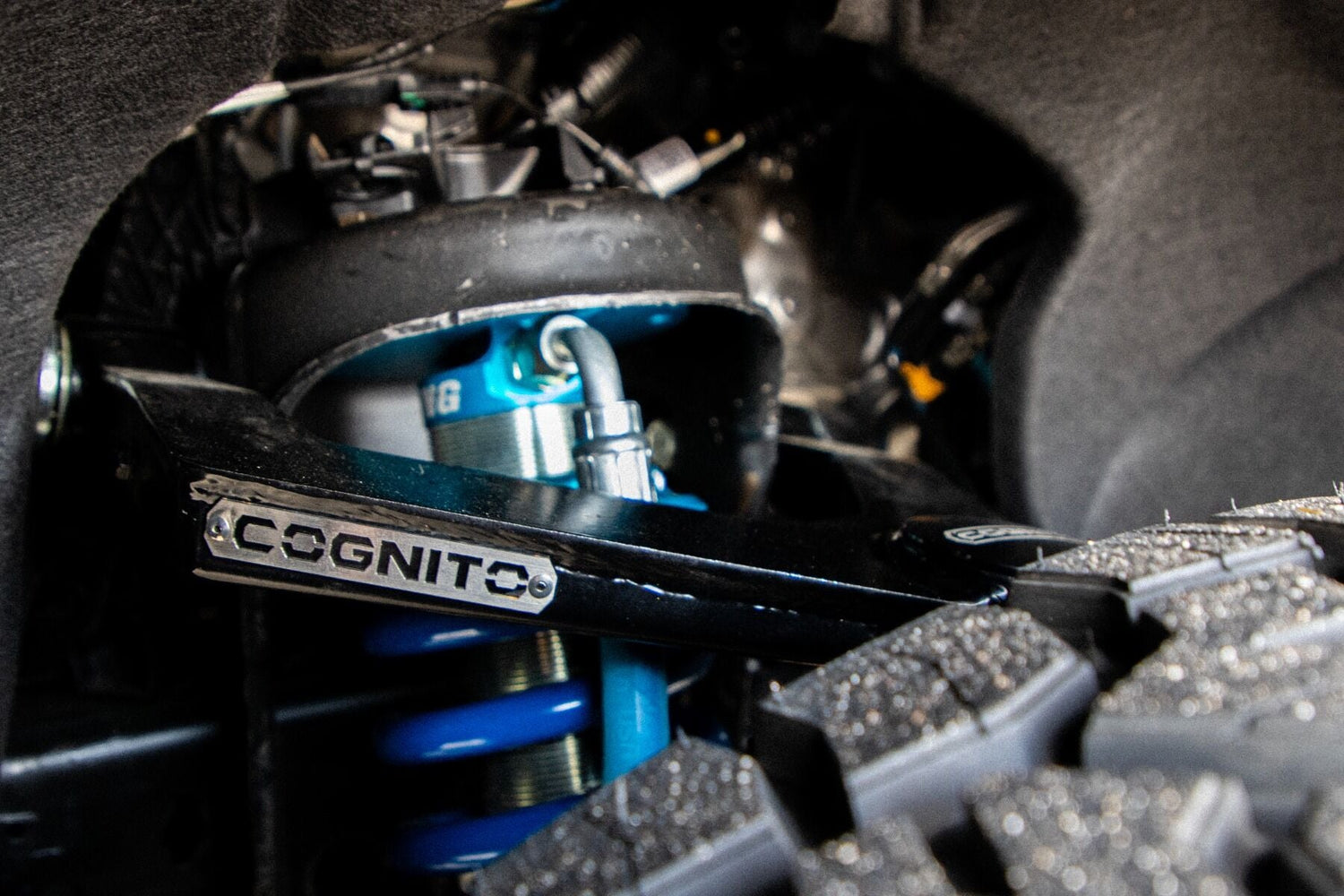

The Ball Joint SM Series Upper Control Arms, with their boxed sheet metal arms that are CNC robot-welded and powder-coated semi-gloss black, add style and function. By improving the allowable droop travel, you'll experience better performance on your ride.

Experience premium quality ride and performance, custom-tuned for your GM application with this King OEM performance kit!

Part Number: 510-P1237

Features

• Yields 3" of front lift
• Yields 2" of rear lift

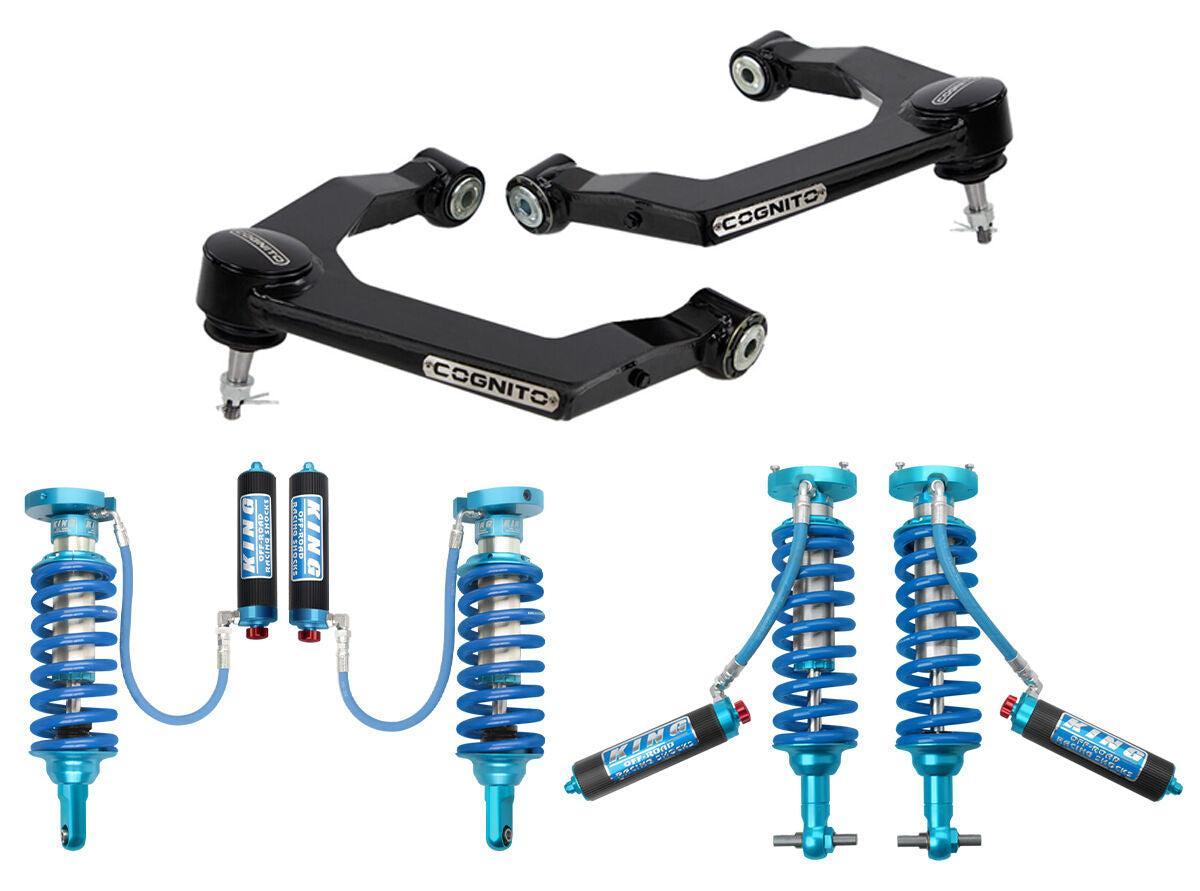

• Ball Joint SM Series Upper Control Arm Kit
• A Pair of Front King 2.5" Remote Reservoir Shocks with Compression Adjusters
• A Pair of Rear King 2.5" Remote Reservoir Shocks with Compression Adjusters
• Corrected ball joint angle

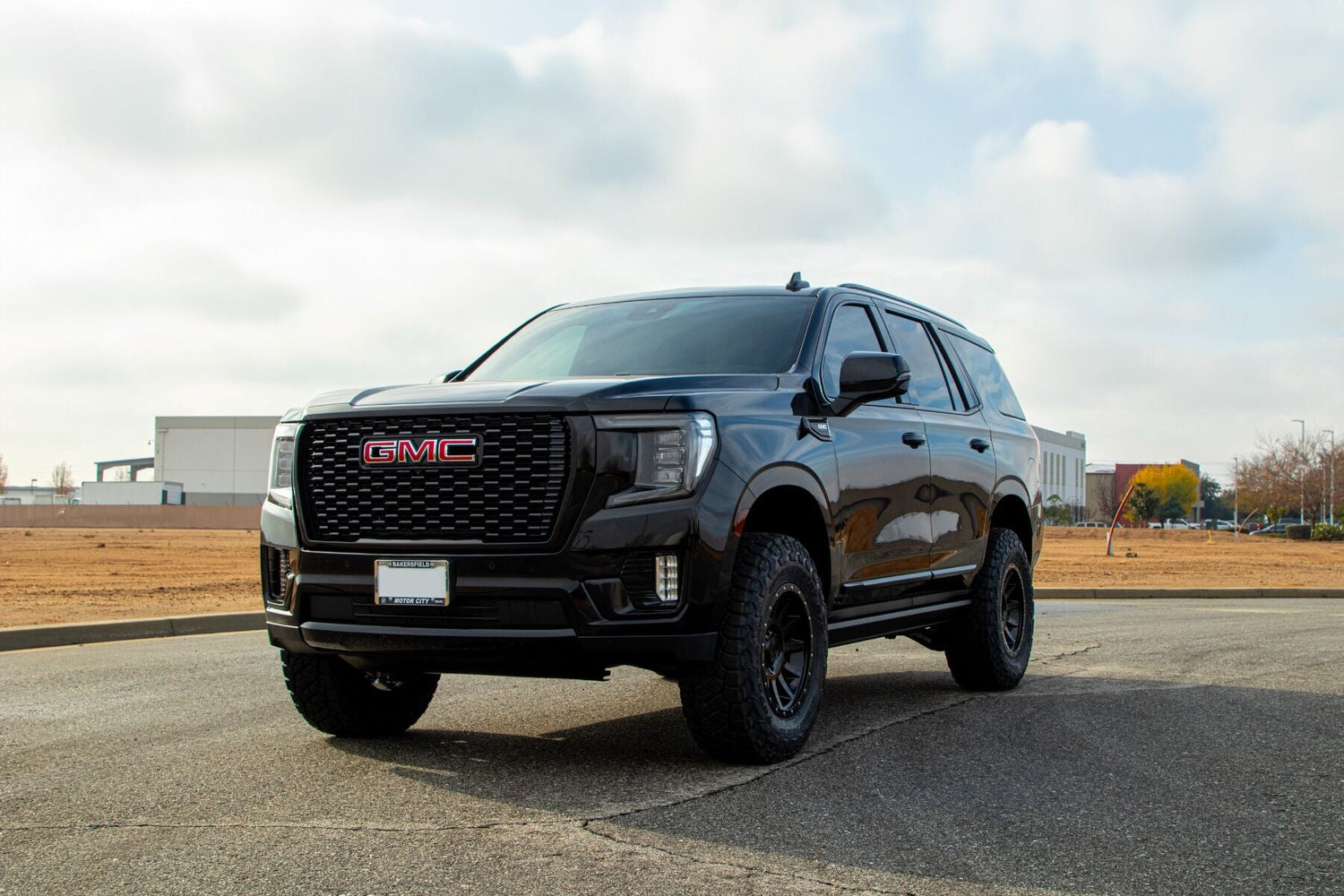

• Enhances the SUV's appearance and reduces the factory nose-down rake
• Maintains adequate droop travel to retain ride quality

Installation

• 6-hour DIY install time
• Click Here 7434

Notes

• NOT compatible for use with SUVs that have air ride suspension.
• Any models that have ride height sensor and/or electrical shock connection will need a 3rd party fix. We recommend visiting modsandprojects.com for the solution until available directly from Cognito.
• Tire fitment is less on the AT4 unless extensive trimming is done. (see Tire Fitement)

Tire Fitment

• Max tire size with trimming inner fender liner: - 295/70R18 with 18"x9" wheel 0mm offset - 295/60R20 with 20"x9" wheel 0mm offset
• Tire fitment is less on the AT4 unless extensive trimming is done.

• AT4 has a different front bumper, the bottom of the plastic bumper cover has to be trimmed back extensively to fit 34x11.5 tire with 9” wide wheel with 0mm offset.

  Recommend a +18mm offset and 33” tire to minimize the trimming.

Additional Fitment

Warranty

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
