2021-2025 Bronco 3-4" Lift FOX Factory Race Series 3.0 Coilovers (BDS2245FRS)

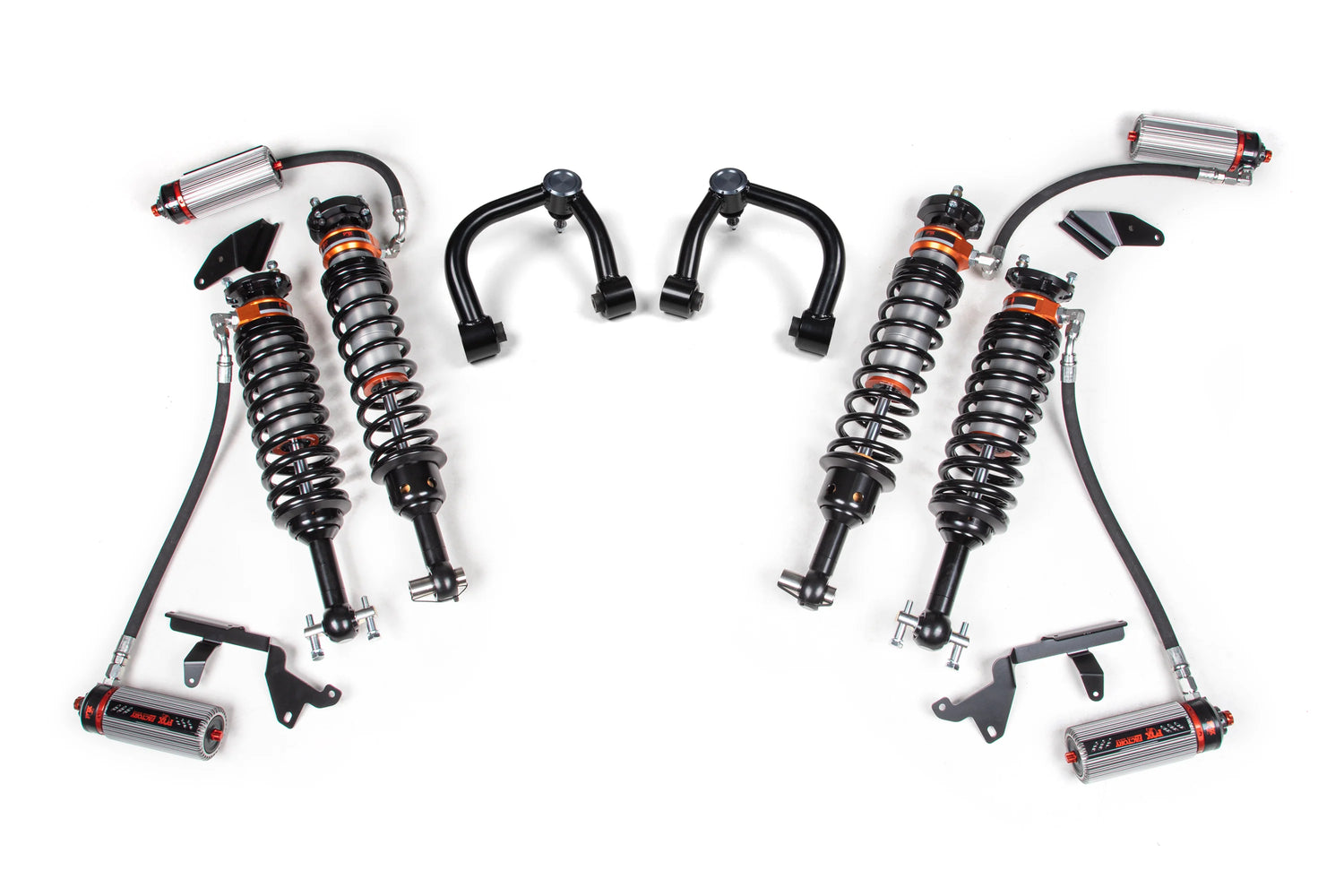

Experience uncompromising off-road performance with BDS Suspension's FOX Factory Race Series 3.0 coilover system engineered for your Bronco 4-Door. This precision-tuned 3 to 4-inch lift delivers enhanced ground clearance and aggressive stance while accommodating up to 37-inch tires. Built around FOX's legendary 3.0 coil-over shocks and reinforced upper control arms, the kit maximizes suspension articulation and travel for serious terrain conquest. Purpose-built for durability and dynamic handling, this race-proven suspension transforms your Bronco's capability both on and off the pavement.

Features

• Performance UCAs increase strength and allow for more suspension travel
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
• Factory Protection Plus drivetrain warranty included
• Easy, 100% Bolt on installation
• 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body
• Patented, internal bypass design
• Application-specific springs
• 7/8" stainless steel shafts
• Vehicle-specific tuning maximizes performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Finned reservoir, with DSC adjuster
• Position- and velocity-sensitive damping maximize comfort and control through any terrain
• Tune vehicle for load, environment, and driving style with DSC adjusters

• Ball Joint Control Arm

Compatibility Notes

• Not compatible with Raptor Models.
• Is compatible with HOSS 3.0 Bronco Models
• Lift height is based on base suspension package, Badlands and Sasquatch models will net less lift however final ride height is the same for all trims.
• Do NOT hit the aluminum knuckle with a hammer to separate the ball joint. Use appropriate ball joint separation tool (OTC 204592).
• Does not fit Bronco Sport models.
• 2 Door | Without Sasquatch Package - 4.5" Lift
• 4 Door | Without Sasquatch Package - 4" Lift
• 2 Door | With Sasquatch Package - 3.5" Lift
• 4 Door | With Sasquatch Package - 3" Lift

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 2.5"
• Rear Lift Method : Coil-Over
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 2-3.5"

Tire Fitment

• 37 x 12.5 with 17 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
