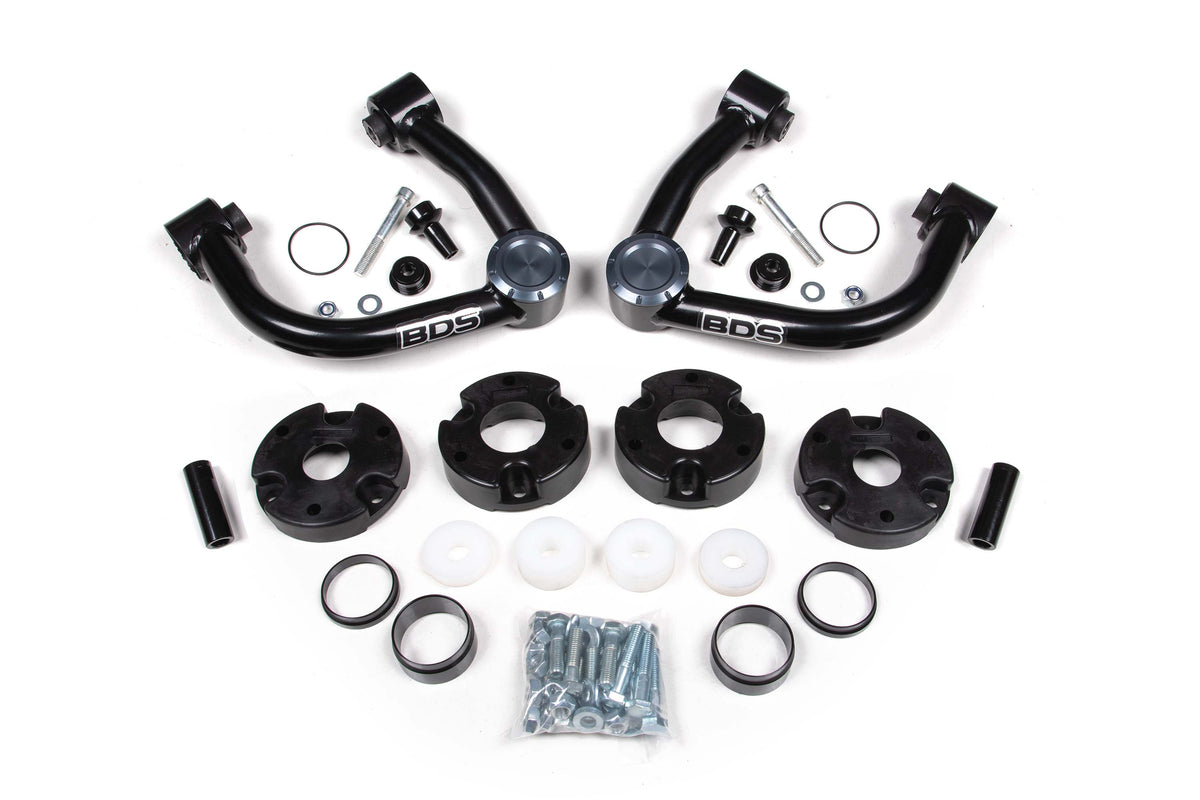

2021-2025 Bronco 3" Lift Kit w/ HD Upper Control Arms (BDS023301)

Description

BDS's 3 inch Bronco kit is engineered for tire clearance and trail performance without over-extending the suspension or the driveline at full droop. Instead of one tall spacer, it uses a small pre-load spacer and a top spacer so ball joints and CVs stay within their limits, and it adds heavy-duty 1.5 inch tubular upper control arms with FK uniball joints for travel and strength. A pair of heavy-duty tie rod reinforcement sleeves is in the box for peace of mind on the trail. Clears 35 inch tires.

Features

• 3 inch lift with clearance for up to 35 inch tires
• Two-piece strut spacer design keeps ride quality without over-extending the suspension during down travel
• Heavy-duty upper control arms: 1.5 inch OD x .120 wall tubing, indexed ball joint cup, FK uniball for maximum travel
• Durometer-specific rubber bushings at the frame mounts for maintenance-free operation
• Heavy-duty tie rod reinforcement sleeves included
• Maintains vehicle ride and handling performance while improving off-road capability
• Black powder coat finish with billet aluminum dust caps

Specs

• Lift height: 3 in.
• Lift method: two-piece strut spacer (pre-load spacer plus top spacer)
• Max tire size: 35 in.
• Country of origin: USA
• Part number: BDS023301

Notes

• BDS fitment lists 2021-2025 Bronco Base, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak, Heritage and Stroppe editions; some rows are tagged 2-door, so confirm 4-door coverage with BDS before relying on it.
