2021-2025 Bronco 4" Lift Kit (BDS2500FPE)

Build the ultimate 2021-2025 Ford Bronco with the BDS KOH Edition suspension package, proven by KOH racer Jason Scherer on the King of Hammers course, with clearance for up to 37" tires. Up front it runs FOX 2.5 Performance Elite remote-reservoir coil-overs, heavy-duty tubular upper control arms, steering tie rod sleeves, a max tire clearance kit for 37s and lower control arm skid plates. The rear runs matching FOX 2.5 coil-overs, lower tubular trailing arms built from 1.9" heavy-wall tubing, an adjustable track bar and lower shock skids. The FOX 2.5 shocks add a remote reservoir for cooling and a Dual Speed Compression adjuster with 10 low-speed and 12 high-speed settings.

Features

• FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow more suspension travel
• Rear trailing arms built from 1.9 inch OD heavy-wall tubing with factory-style rubber bushings
• Adjustable rear track bar for proper rear axle alignment
• Steering tie rod sleeves increase the diameter of the factory tie rods
• Thick steel skid plates protect shocks from damage
• Max tire clearance kit allows room for 37 inch tires without rubbing
• Durable textured black powdercoat finish
• Fully assembled and ready to install out of the box

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Coil-Over
• Shocks Included: Yes
• Front Lift Height: 3.5 inch
• Rear Lift Height: 3.5 inch

Notes

• Do NOT hit the aluminum knuckle with a hammer to separate the ball joint. Use the appropriate ball joint separation tool (OTC 204592).
• Will not work with models that have a height sensor attached to the UCA.
• Does not fit Bronco Sport models.
• Not compatible with Raptor models.
• Compatible with HOSS 3.0 Bronco models.

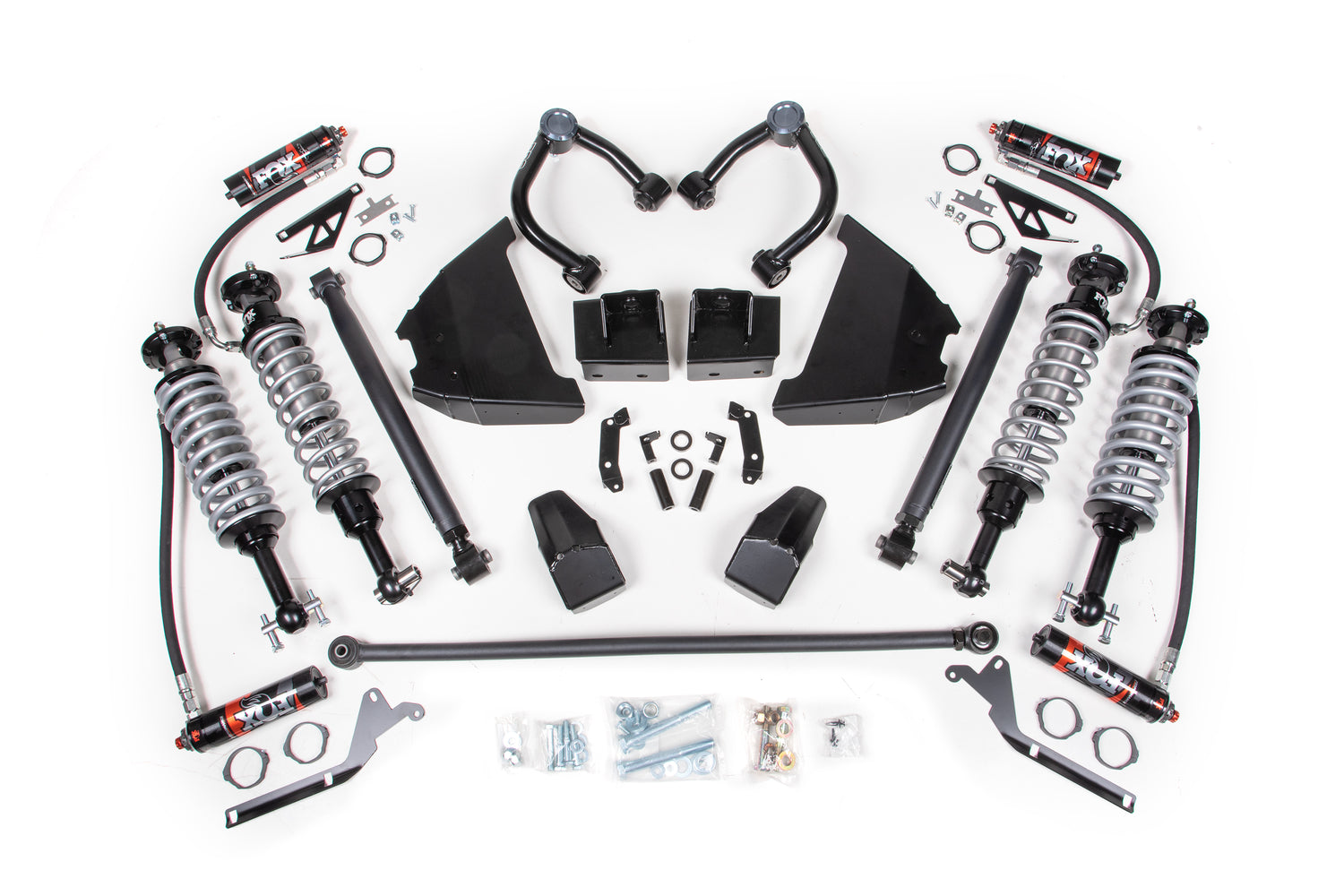

Includes

• BDS343009, 2021-2023 Ford Bronco, Rear Track Bar (UPC 711745613744)
• BDS743000, 2021-2023 Ford Bronco, Suspension Skid Front/Rear Box Kit (UPC 711745613768)
• BDS743001, 2021-2023 Ford Bronco, Front UCA, Body Mount, Tie Rod Sleeve Box Kit (UPC 711745613751)
• BDS743009, 2021-2023 Ford Bronco, Rear Control Arms - Rubber Bushings (UPC 711745613737)
• FOX88406447, Kit: PVD, KOH Edition: 21-OnN Ford Bronco, 4 Door, w/UCA, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, Base 4 inch Lift, Sasquatch 3 inch Lift, Dual Speed Compression Adjust
• FOX88406448, Kit: PVD, KOH Edition: 21-ON Ford Bronco, 4 Door, Rear Coilover, 2.5 Truck Fox Performance Elite Series, R/R, Base 3 inch Lift, Sasquatch 2 inch, Dual Speed Compression Adjust
