2021-2025 F-150 2" Leveling Kit (BDS1913FSL)

Level out your 2021-2025 Ford F-150 and improve the ride with this BDS 2" leveling kit featuring FOX 2.0 coil-over shocks with clearance for up to 35" tires. Up front the kit includes FOX 2.0 Performance Series coil-over shocks and heavy-duty tubular upper control arms built from 1.5" OD x .120-wall tubing with an indexed ball joint cup for added down travel and camber adjustment, greaseable ball joints, and a billet aluminum dust cap. The rear uses a matching set of FOX 2.0 Performance shocks. The FOX coil-overs feature a 2.0" machined 6061-T6 aluminum body, internal floating piston to eliminate oil aeration, and a 5/8" hard chrome plated shaft, preloaded with springs and top-plate for easy installation.

Features

• FOX Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
• HD Upper control arms provide superior strength and proper alignment
• Provides level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

Notes

• Works with bar pin lower strut mounts. For eye-style lower strut mounts use 2009-13 model kits.
• Control arms with sensors are designed to keep the sensor arm in the stock position (the same position as the OE control arm). This applies to the adaptive headlamp option where the beams move with the steering wheel; check your upper control arms for a mounted sensor if unsure.
• Do NOT hit the aluminum knuckle on later model trucks with a hammer to separate the ball joint. Use the appropriate ball joint separation tool.
• For replacement ball joints, use BDS081203. The ball joint is directional and must be installed with the dot facing either inward or outward on the vehicle, otherwise, damage may occur.

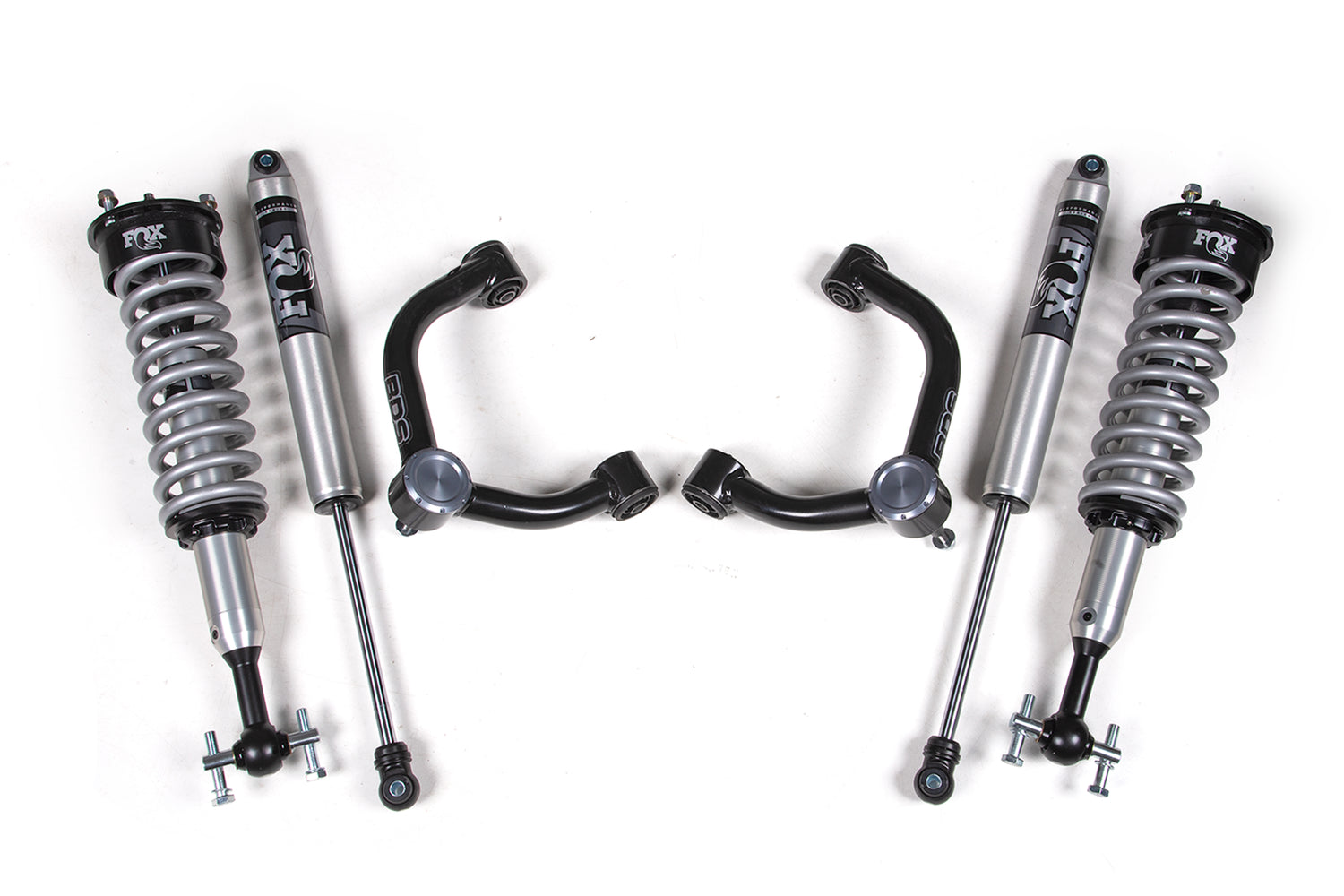

Includes

• BDS123262, 2021-2024 Ford F150 Upper Control Arm Box Kit W/ Sensor (UPC 711745604131)
• FOX98502146, 2021-2024 Ford F150 4wd Front Coilover, PS, 2.0, Internal Floating Piston, 4.9 Inch, 0-2 Inch Lift
• FOX98524265, 2021-2024 Ford F150 4wd Rear, PS, 2.0, Internal Floating Piston, 10.6 Inch, 0-1 Inch Lift
