2021-2025 F-150 2" Lift FOX 2.0 Elite UCA Non-CCD (BDS1913FPE)

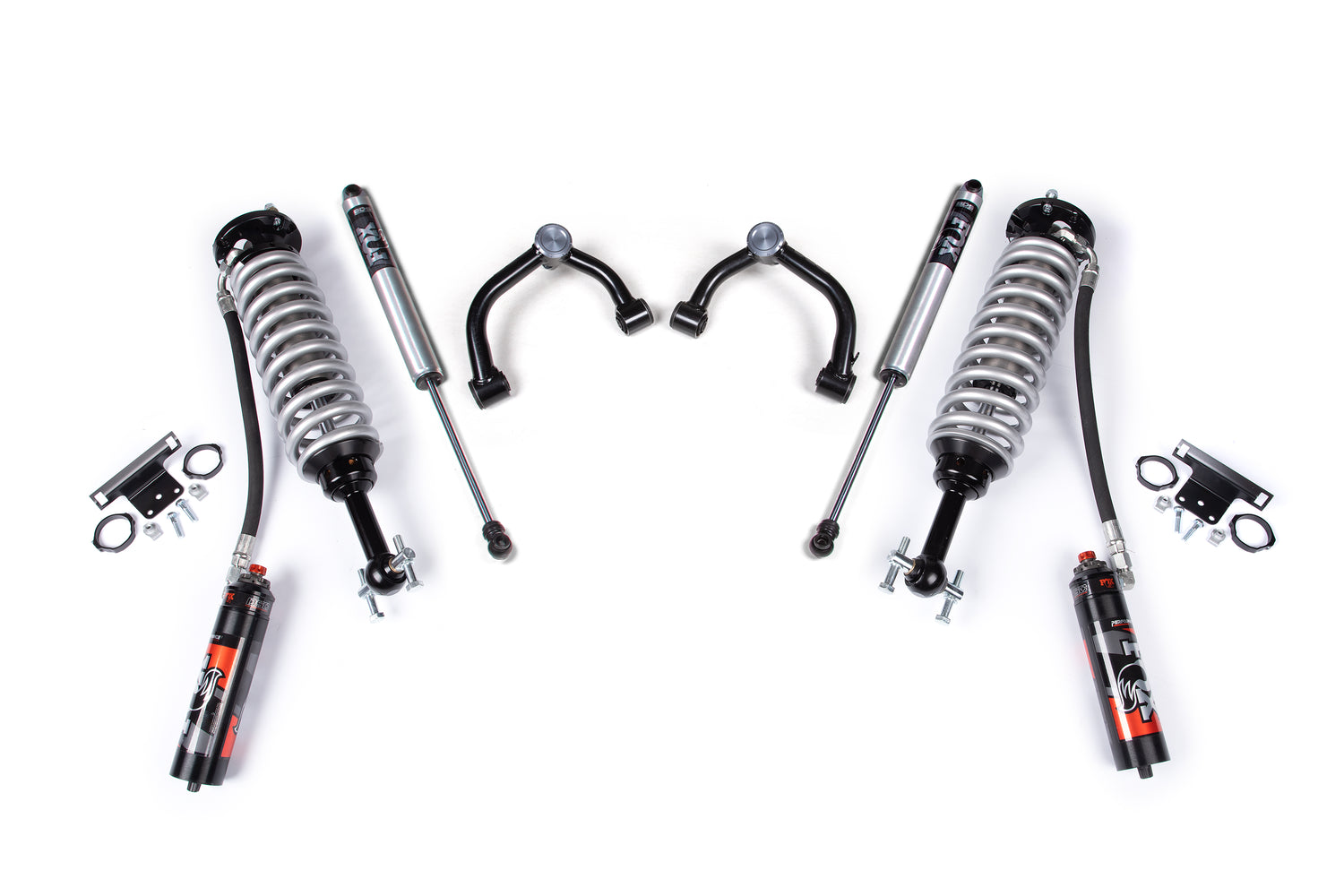

Level out your 2021-2025 Ford F150 truck and improve the ride with this 2.5 inch performance suspension system featuring FOX Performance Elite Series 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes FOX Performance Elite Series 2.5 coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX shocks for the smoothest ride.

Features

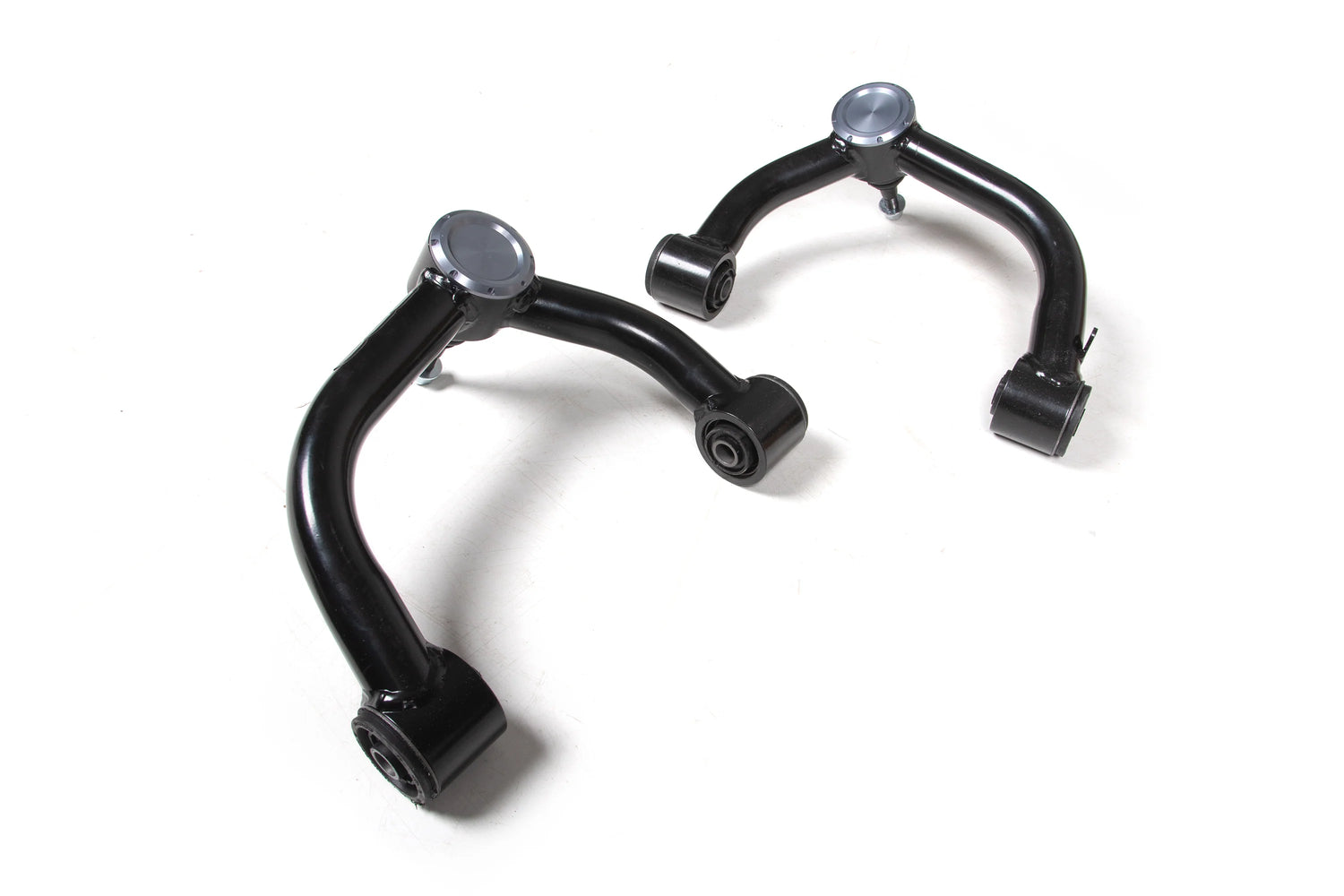

• HD Upper control arms provide superior strength and proper alignment
• Adjustable height to fine tune
• Front FOX 2.5 Performance Elite coil overs for unmatched performance and capability with simple adjustment of settings
• Provides level stance from front to rear
• Easy, 100% Bolt On installation
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
• Functions with Blue Cruise

Shock Features

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Notes

• Models with Adaptive headlights option only have a driver's side mounted ride height sensor. Adaptive headlight kit will not fit models with sensors on both front arms.
• Will NOT work with trucks that have CCD (Continuous Controlled Damping)
• Will NOT work with Diesel models.
• Not compatible on trucks with the On-Board Scales option
• Shock length too short for Tremor
• Excludes Raptor
• 35" x 12.5" with 4.75" Wheel Backspacing Recommended
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 2"
• Rear Lift Method : Stock
• Rear Lift Height : 0"
• Shocks Included : Yes
• Lift Height : 2-3.5"

Tire Fitment

• 33 x 12.5 with 17 x 9 and 5 in. Backspace
