2021-2025 F-150 2" Leveling Kit with FOX 2.5 Performance Elite Shocks (BDS1912FPE)

Level out your 2021-2025 Ford F-150 and improve the ride with this 2" suspension system featuring FOX Performance Elite Series 2.5 coil-over shocks from BDS, with clearance for up to 35" tires. Up front it pairs the FOX 2.5 coil-overs with heavy duty tubular upper control arms built from 1.5" OD x .120-wall tubing with an indexed ball joint cup that corrects ball joint positioning for added down travel and camber adjustment. The rear runs a matching set of FOX shocks.

The FOX 2.5 Performance Elite shocks include a remote reservoir for extra fluid capacity and cooling, plus Dual Speed Compression adjustment offering 10 low-speed and 12 high-speed settings to dial in for terrain, load, and speed.

Features

• HD upper control arms provide superior strength and proper alignment
• Adjustable height to fine tune
• Front FOX 2.5 Performance Elite coil overs with simple adjustment of settings
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments
• 100 percent bolt-on installation
• 2.5-inch impact extruded aluminum body
• 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: None
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

Notes

• Will NOT work with trucks that have CCD (Continuous Controlled Damping)
• Will NOT work with Diesel models
• Not compatible on trucks with the On-Board Scales option
• Shock length too short for Tremor
• Excludes Raptor
• 35" x 12.5" with 4.75" wheel backspacing recommended

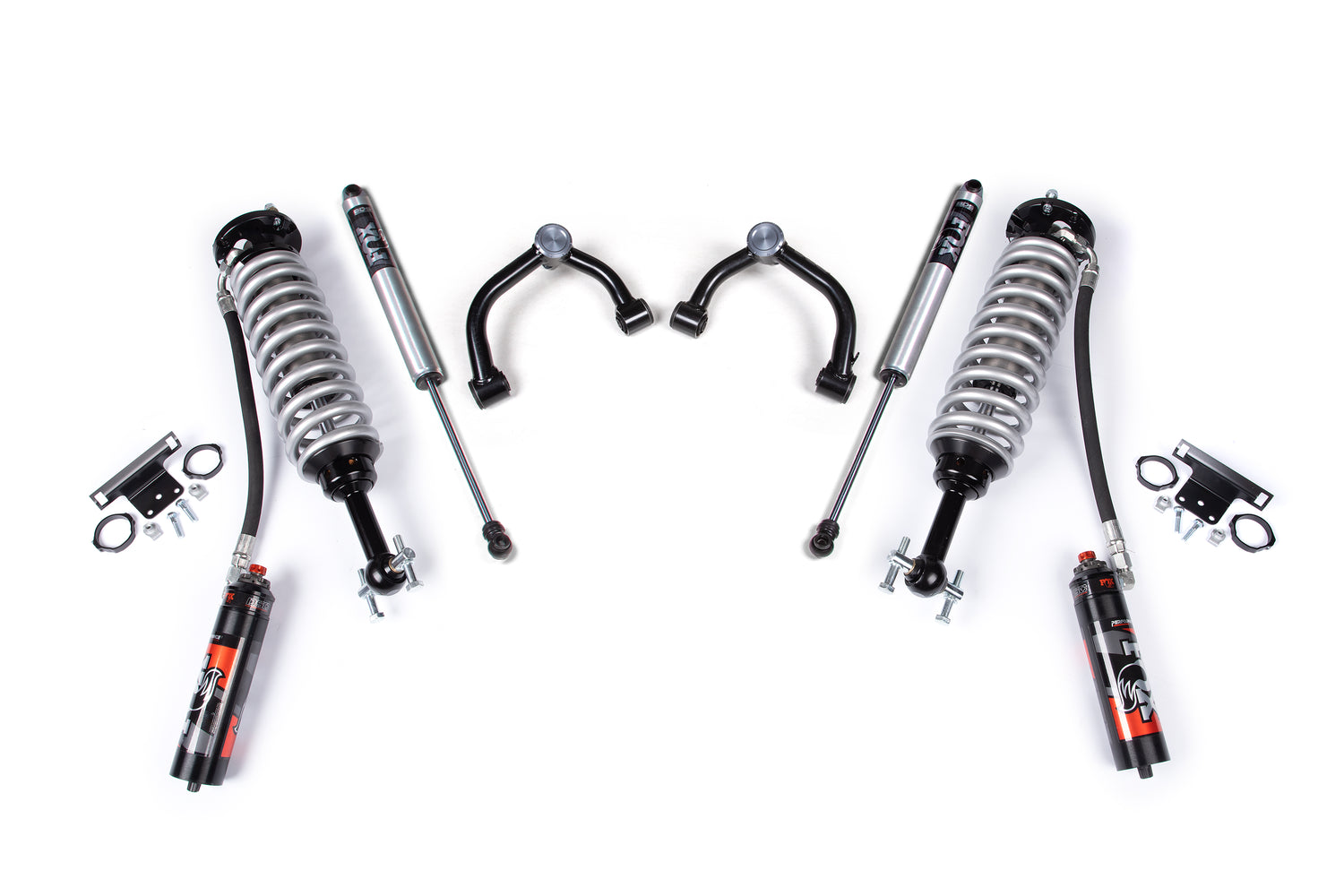

Includes

• BDS123261, 2021-2024 Ford F150 Upper Control Arm Box Kit W/O Sensor (UPC 711745604124)
• FOX88306199, Kit: 2021-2024 Ford F150, Front, 2.5 Truck Fox Performance Elite Series, R/R, 0-2 InchРЎСљ Lift, Dual Speed Compression Adjust
• FOX88326122, Kit:2021-2024 Ford F150, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 0-2 InchРЎСљ Lift, Dual Speed Compression Adjust
