2021-2025 F-150 4" Lift Kit with NX2 Nitro Shocks (BDS1902H)

BDS steps up the performance and capability of the 2021-2024 Ford F150 trucks with 4-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

Features

• Block kits replace factory 1-1/4 inch block. The stock block will not be reinstalled.
• Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
• This system has not been tested on models equipped with Ford BlueCruise.
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Tail low to level stance
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.75

Notes

• 18 inch or larger diameter wheels are required. Stock 17 inch and 18 inch wheels cannot be re-installed. Stock 20 inch wheels can be used with up to a 305/60R20 Tire.
• 18 inch wheels with 5-5.5 inch backspacing should be test fit prior to mounting the Tire to ensure proper clearance to the steering knuckle/tie rod. 5.5 inch backspacing is highly recommended for Tire-to-frame crash bar clearance.
• Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
• Crash bars may require modification based on wheel and Tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
• Does NOT fit diesel models.
• Will not work with Tremor models.
• Will not work with models with CCD (Continuous Controlled Damping)
• Requires frame bracket modification.

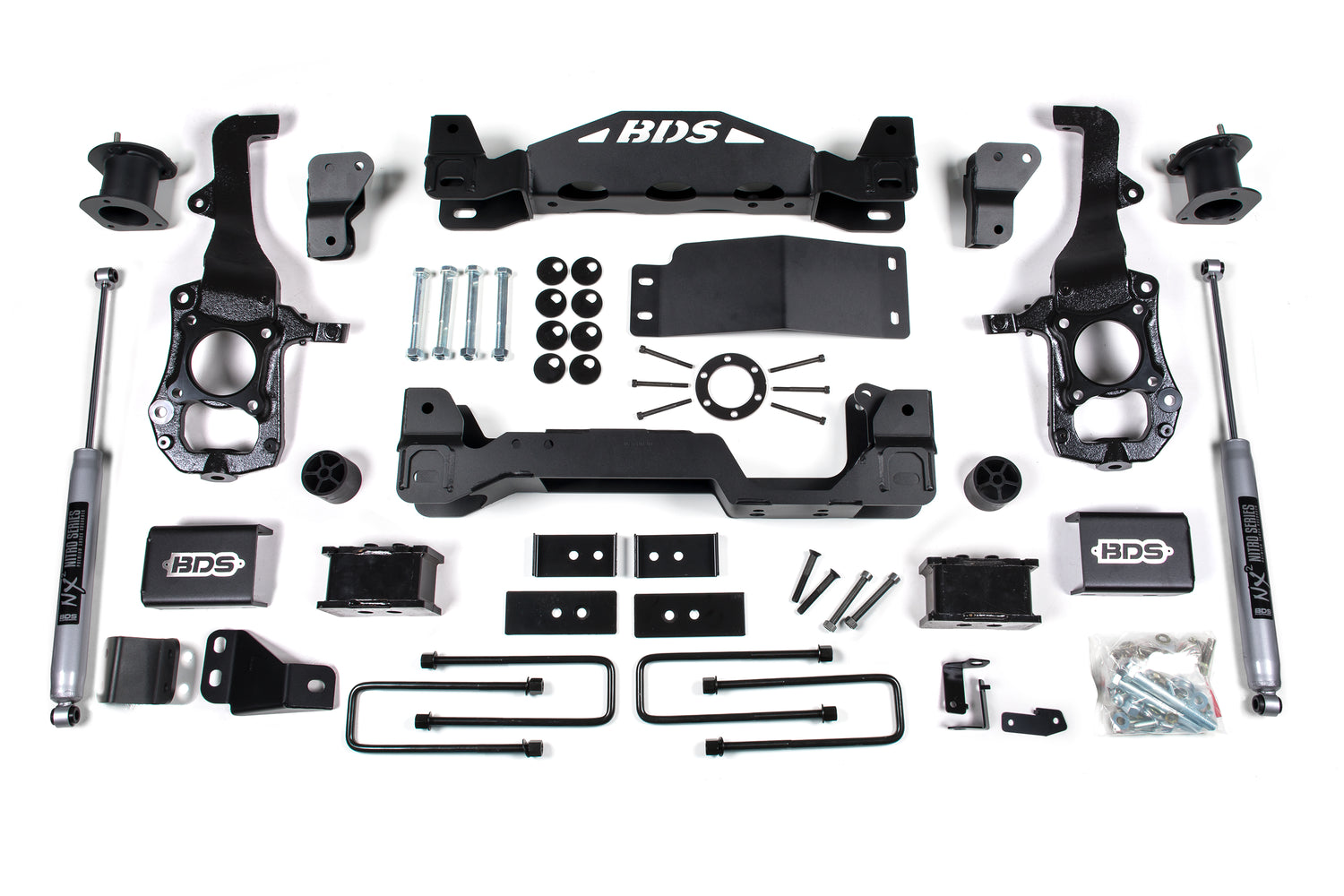

Includes

• BDS013208, 2021-2024 Ford F150 2 inch Rear Box Kit (UPC 658848613144)
• BDS023414, 2021-2024 Ford F150 4 inch Spacer Box Kit (UPC 658848615711)
• BDS023652, 2021-2024 Ford F150 Front Box Kit (1of2) (UPC 658848615964)
• BDS023653, 2021-2024 Ford F150 Front Box Kit (2of2) (UPC 658848615971)
• BDS023670, 2021-2024 Ford F150 Knuckle Box Kit - DS (UPC 658848616053)
• BDS023671, 2021-2024 Ford F150 Knuckle Box Kit - PS (UPC 658848616060)
• BDS85651, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (UPC 711745609464)
