2021-2025 F-150 2.5" Leveling Kit (BDS1912FRS)

Level out your 2021-2025 Ford F-150 and improve the ride with this BDS Suspension 2.5" performance system built around FOX Factory Race Series 3.0 coil-over shocks, with clearance for up to 35" tires. Up front it runs the FOX 3.0 coil-overs plus heavy-duty tubular upper control arms; the rear runs a matching set of FOX 3.0 shocks. The UCAs use 1.5" OD x .120-wall tubing with an indexed ball joint cup to correct ball joint position for added down travel and camber adjustment, with durometer-specific frame bushings, greaseable ball joints and a black powder coat finish.

Features

• HD upper control arms provide superior strength and proper alignment
• Adjustable height to fine tune
• Front FOX 3.0 Factory Race Series IBP coil-overs with simple setting adjustment
• Rear FOX 3.0 Factory Race Series IBP shocks for improved ride and capability
• Provides level stance from front to rear
• Easy, 100 percent bolt-on installation
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: None
• Shocks Included: Yes
• Front Lift Height: 2.5 Inch
• Rear Lift Height: 0 Inch

Notes

• Will NOT work with trucks that have CCD (Continuous Controlled Damping).
• Will NOT work with diesel models.
• Not compatible with trucks that have the On-Board Scales option.
• Will NOT work with the Raptor model.
• Adaptive headlamps: beams move with steering. If unsure whether equipped, check the upper control arms for a mounted sensor.

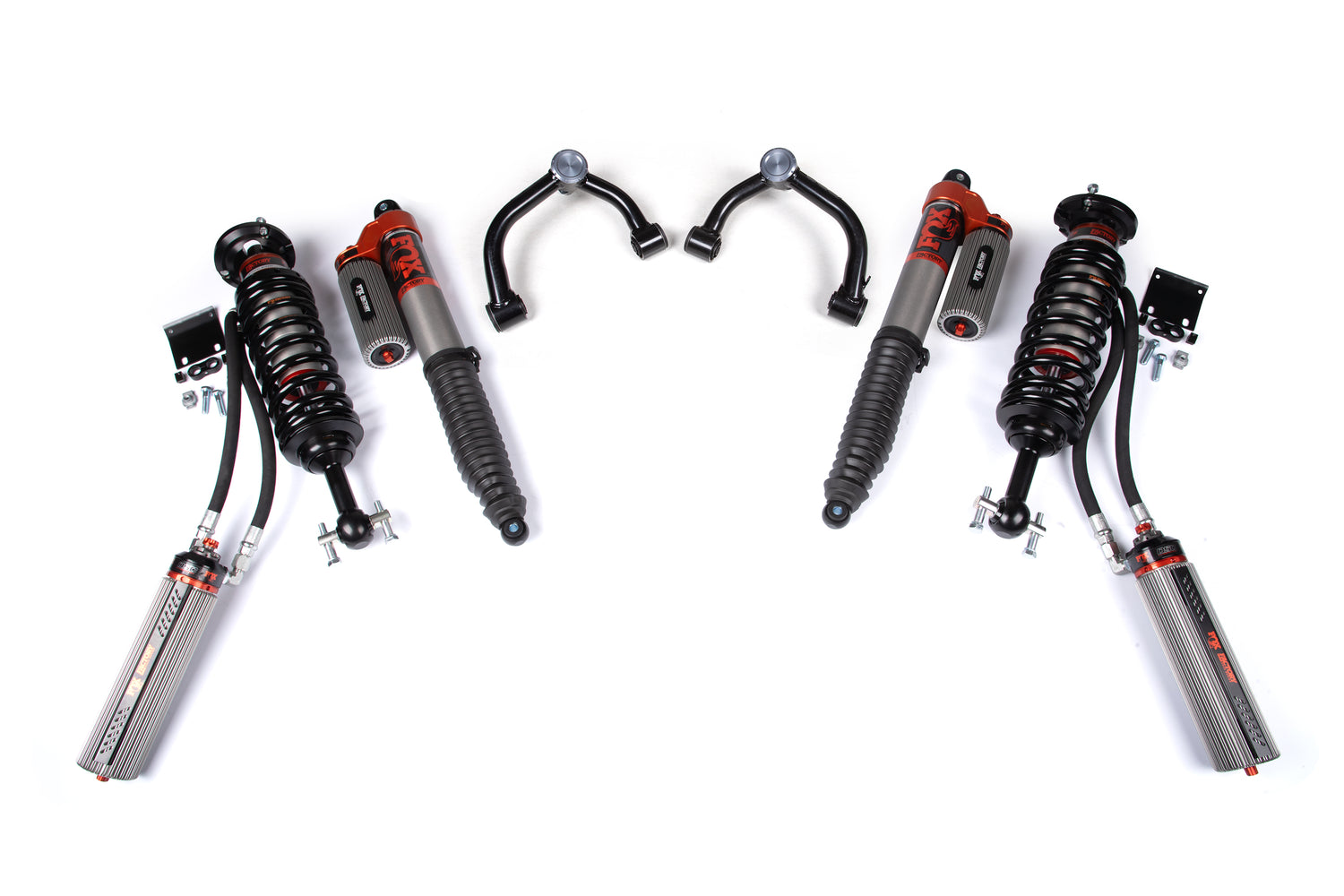

Includes

• BDS123261, 2021-2024 Ford F150 Upper Control Arm Box Kit W/O Sensor (UPC 711745604124)
• FOX88306191, Kit: 2021-2024 Ford F150, 4WD, Front Coilover, Internal Bypass, NF: 3.0 Series, Recirc R/R, Dual Speed Compression Adjust, 2.5 Inch LIFT
• FOX88326121, Kit: 2021-2024 Ford F150, Rear, 3.0 Truck FRS, P/B, 0-1 InchРЎСљ Lift, Dual Speed Compression Adjust
