2021-2025 F-150 6" Lift Kit (BDS1961H)

BDS 6" suspension lift for the 2021-2025 Ford F150 factory equipped with CCD (Continuously Controlled Damping) with clearance for up to 37" tires. The high-clearance design corrects suspension and steering geometry while improving ground clearance and offroad protection. Up front it uses 1/4" thick high-arched steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets, a skidplate, CNC-machined ductile iron steering knuckles, sway bar relocation brackets, brake line brackets, and alignment cam bolts. In the rear it uses high strength fabricated lift blocks and longer u-bolts plus shock relocation brackets to maintain the factory CCD shocks.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts lift and level the stance
• Shock relocation brackets included to maintain CCD shock system

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Blocks
• Shocks Included: No
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5, 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5/4.58

Notes

• Will not work with aftermarket Upper Control Arm kits that do not have provisions for both driver and passenger side ride height sensors.
• 18 inch or larger diameter wheels required. Stock 17 inch and 18 inch wheels cannot be re-installed. Stock 20 inch wheels can be used with up to a 305/60R20 tire.
• 18 inch wheels with 5-5.5 inch backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5 inch backspacing is highly recommended for tire to frame crash bar clearance.
• Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included).
• Block replaces the factory 1-1/4 inch block; stock block will not be reinstalled.
• Crash bars may require modification based on wheel and tire choice; it is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
• Does NOT fit diesel models.
• Will not work with Tremor models.
• Some trucks with a 2-piece drive shaft may have a Ford recall (Safety Recall 21S25); BDS recommends having it performed prior to installing the lift.
• This system has not been tested on models equipped with Ford BlueCruise.

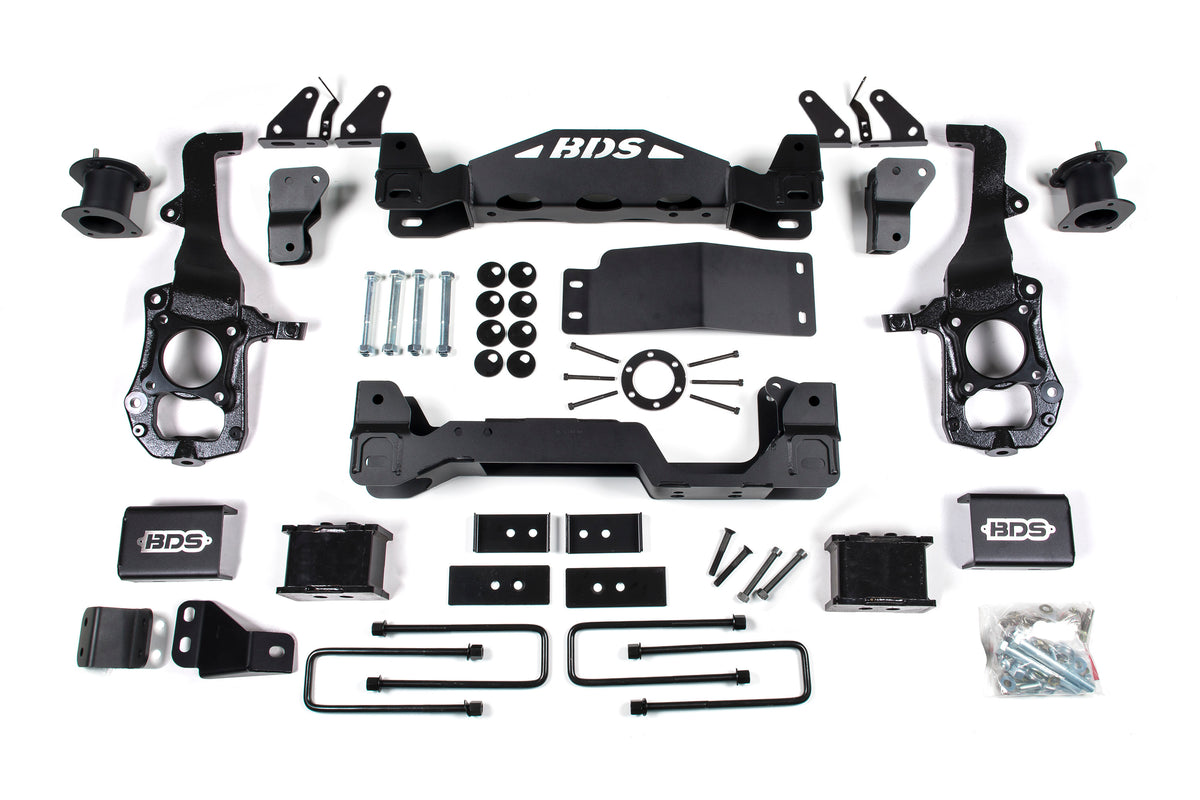

Includes

• BDS013538, 2021-2024 Ford F150 5 inch Rear Box Kit (UPC 658848613663)
• BDS023645, 2021-2024 Ford F150 4wd 6 inch Strut Spacer Box Kit, CCD Only (UPC 711745606524)
• BDS023652, 2021-2024 Ford F150 Front Box Kit (1of2) (UPC 658848615964)
• BDS023653, 2021-2024 Ford F150 Front Box Kit (2of2) (UPC 658848615971)
• BDS023670, 2021-2024 Ford F150 Knuckle Box Kit - DS (UPC 658848616053)
• BDS023671, 2021-2024 Ford F150 Knuckle Box Kit - PS (UPC 658848616060)
