2021-2025 F-150 6" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1579FPE)

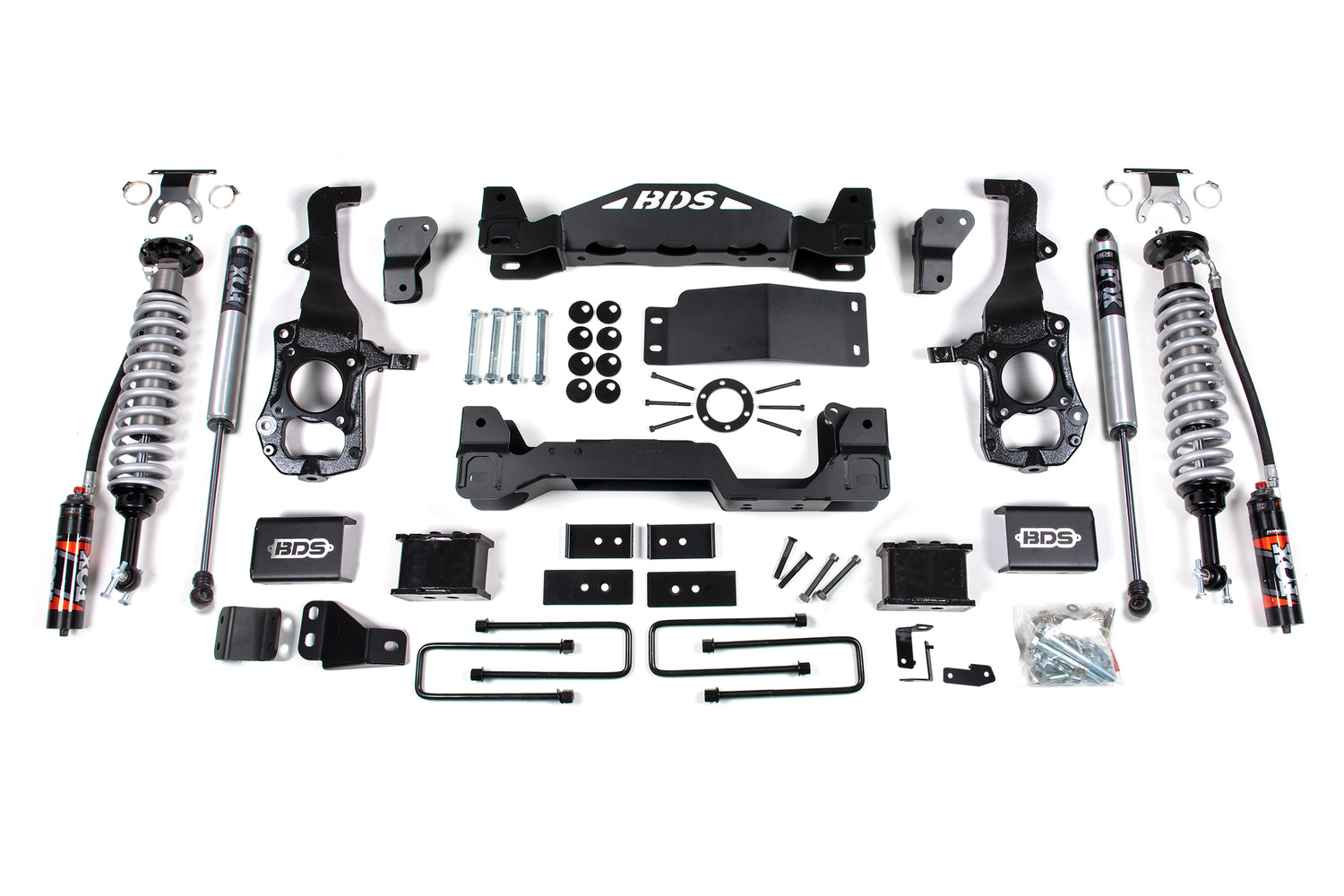

Maximize the 2021-2025 Ford F150 with this BDS 6" coil-over lift kit running FOX Performance Elite 2.5 coil-over shocks, with clearance for up to 37" tires. Up front it uses FOX 2.5 remote reservoir coil-overs, high-arched 1/4" steel crossmembers, differential relocation brackets and a skid plate, plus CNC-machined ductile iron steering knuckles that correct steering geometry and keep ESC compatible. The rear runs fabricated lift blocks, longer u-bolts and FOX 2.0 Performance Series shocks.

The FOX 2.5 Performance Elite shocks add a remote reservoir for extra fluid capacity and cooling, with Dual Speed Compression Adjusters offering 10 low-speed and 12 high-speed settings.

Features

• FOX 2.5 remote reservoir coil-over shocks for increased travel
• Dual Speed Compression Adjust: 10 low-speed and 12 high-speed compression settings via twist knobs
• Black anodized aluminum reservoir to increase cooling efficiency
• High clearance 1/4" steel crossmembers improve strength and off-road capability
• Heavy duty CNC-machined steering knuckles correct steering geometry and maintain ESC compatibility
• Differential skid plate for off-road protection
• Rear lift blocks and u-bolts to lift and level the stance
• 2.5" Impact extruded aluminum body
• 7/8" hard chrome plated heat-treated alloy steel shaft
• External reservoir separates shock oil from high-pressure nitrogen
• Fully serviceable for a lifetime of use
• 1-year manufacturer's warranty

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5, 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 4.5/5.5

Notes

• 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
• 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
• Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included).
• Block kits replace the factory 1-1/4" block. The stock block will not be reinstalled.
• Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
• Does NOT fit diesel models.
• Will not work with Tremor models.
• Some trucks with a 2-piece driveshaft may have a Ford recall on the rear driveshaft (Safety Recall 21S25). BDS recommends having this performed prior to installing the lift.
• This system has not been tested on models equipped with Ford BlueCruise.
• Will not work with models with CCD (Continuous Controlled Damping).
• 5" block kit recommended for a more level stance; 4" block kit will result in a tail low stance.

Includes

• BDS013538, 2021-2025 Ford F150 5 inch Rear Box Kit (UPC 658848613663)
• BDS023652, 2021-2025 Ford F150 Front Box Kit (1of2) (UPC 658848615964)
• BDS023653, 2021-2025 Ford F150 Front Box Kit (2of2) (UPC 658848615971)
• BDS023670, 2021-2025 Ford F150 Knuckle Box Kit - DS (UPC 658848616053)
• BDS023671, 2021-2025 Ford F150 Knuckle Box Kit - PS (UPC 658848616060)
• FOX88406327, Kit: BDS 2015-2024 Ford F150, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
