2021-2025 F-150 6" Lift Kit with NX2 Nitro Shocks (BDS1579H)

BDS steps up the 2021-2025 Ford F150 with this 6" suspension lift kit, clearing up to 37" tires. Up front it uses high-arched 1/4" steel crossmembers, top mounted strut spacers, differential relocation brackets and a skid plate, plus CNC-machined ductile iron steering knuckles that correct steering geometry and keep ESC compatible. The rear runs fabricated lift blocks and longer u-bolts with NX2 Nitro or optional FOX 2.0 Performance Series shocks.

Features

• High clearance 1/4" steel crossmembers improve strength and off-road capability
• Heavy duty CNC-machined steering knuckles correct steering geometry and maintain ESC compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for off-road protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving
• Optional FOX 2.0 Performance Series shocks for maximum on and off-road performance
• NX2: nitrogen-charged twin-tube, 10-stage velocity-sensitive valving, 1-3/8" high-flow piston, self-lubricating seals, silver powder coat finish, dual-welded ends

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5, 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 4.5/5.5

Notes

• 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
• 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
• Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included).
• Block kits replace the factory 1-1/4" block. The stock block will not be reinstalled.
• Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
• Does NOT fit diesel models.
• Will not work with Tremor models.
• Some trucks with a 2-piece driveshaft may have a Ford recall on the rear driveshaft (Safety Recall 21S25). BDS recommends having this performed prior to installing the lift.
• This system has not been tested on models equipped with Ford BlueCruise.
• Will not work with models with CCD (Continuous Controlled Damping).

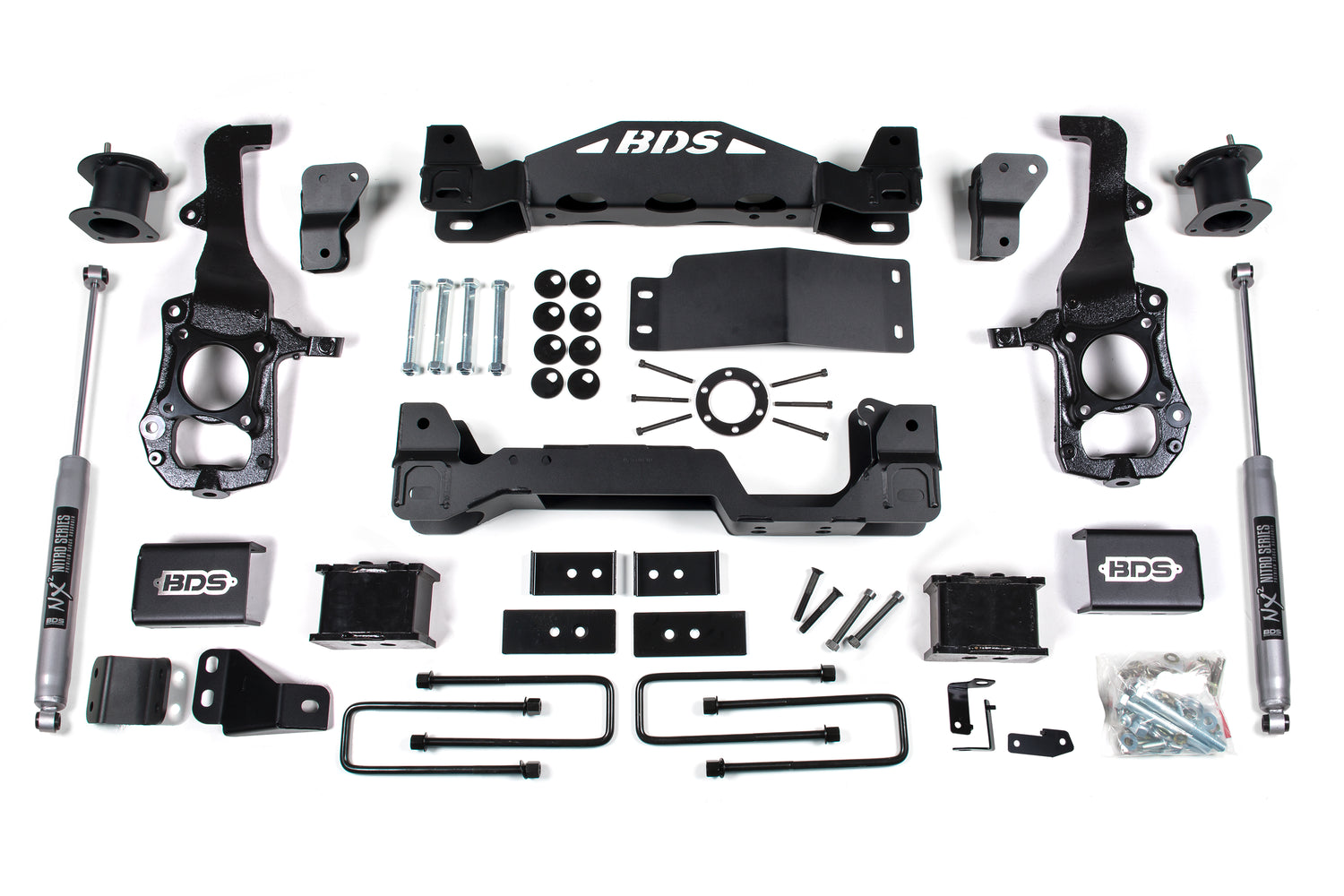

Includes

• BDS013538, 2021-2025 Ford F150 5 inch Rear Box Kit (UPC 658848613663)
• BDS023652, 2021-2025 Ford F150 Front Box Kit (1of2) (UPC 658848615964)
• BDS023653, 2021-2025 Ford F150 Front Box Kit (2of2) (UPC 658848615971)
• BDS023654, 2021-2025 Ford F150 6 inch Spacer Box Kit (UPC 658848615988)
• BDS023670, 2021-2025 Ford F150 Knuckle Box Kit - DS (UPC 658848616053)
• BDS023671, 2021-2025 Ford F150 Knuckle Box Kit - PS (UPC 658848616060)
• BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609693)
