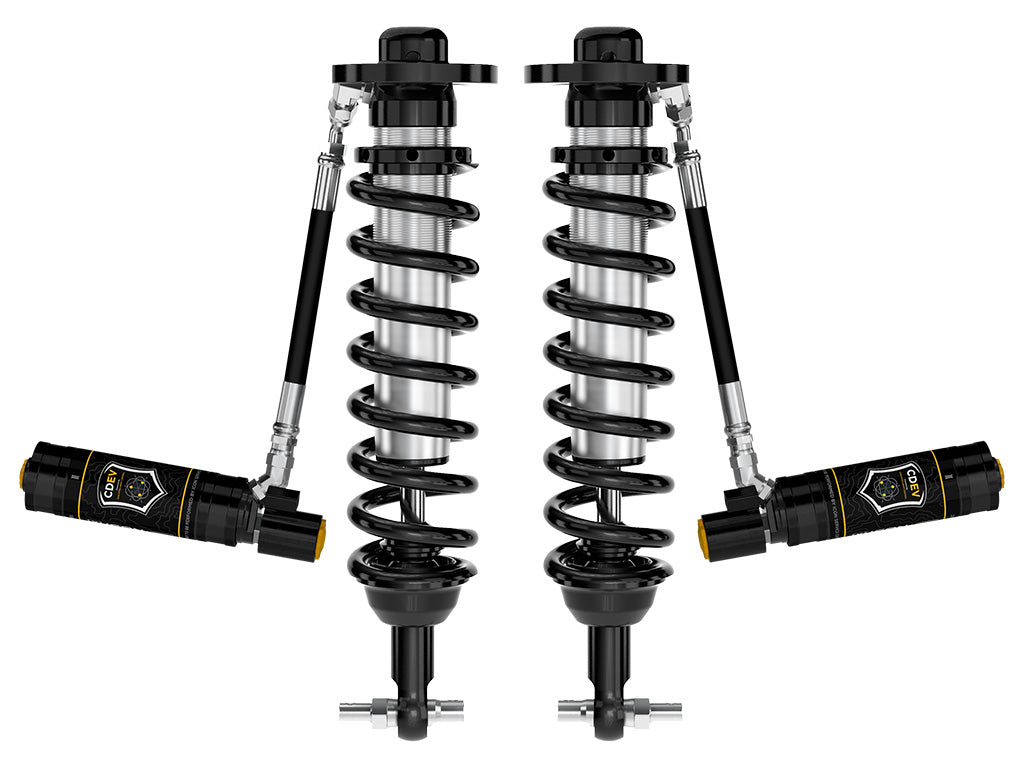

2021-2025 F-150 2.5 RR CDEV Front Coilover Kit (ICO91823E)

Drop in serious suspension performance on your 2021-2025 F-150 with ICON 2.5 Series coilovers. Remote reservoirs keep temps down and damping consistent when you push hard. Adjustable from 0-2.75" of lift over stock.

Features

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length yields maximum wheel travel
• Height-adjustable coilovers offer 0-2.75" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pins
• Fully rebuildable and re-tunable

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Important Notes

• Only fits 4WD models
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Will not work with factory installed electronically controlled suspension.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.

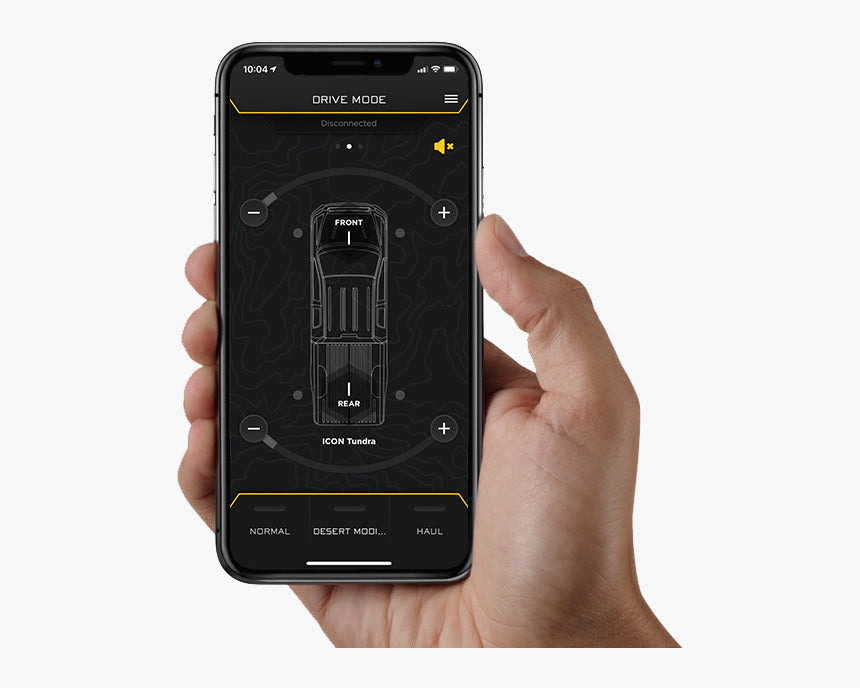

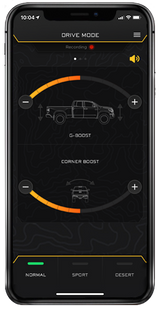

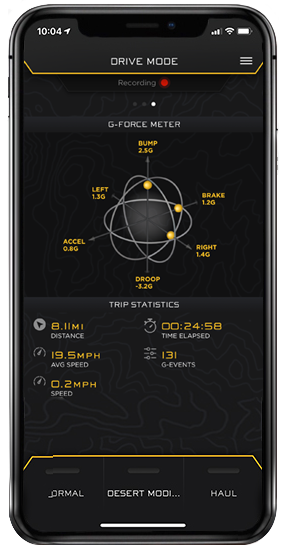

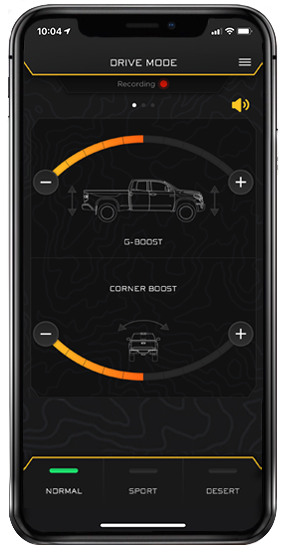

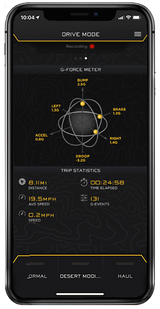

• An iOS operated device is required to run ICON Intelligent Control app
• Also requires installation of applicable IIC kit and CDEV rear shocks
• Will not fit F-150 Tremor or F-150 Raptor
• Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock

Manufacturer Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2021-2025 Ford F-150 4WD truck. These adjustable coilovers allow up 0-2.75" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5" shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance, both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series CDEV rear shock absorbers, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford F-150 4WD.
