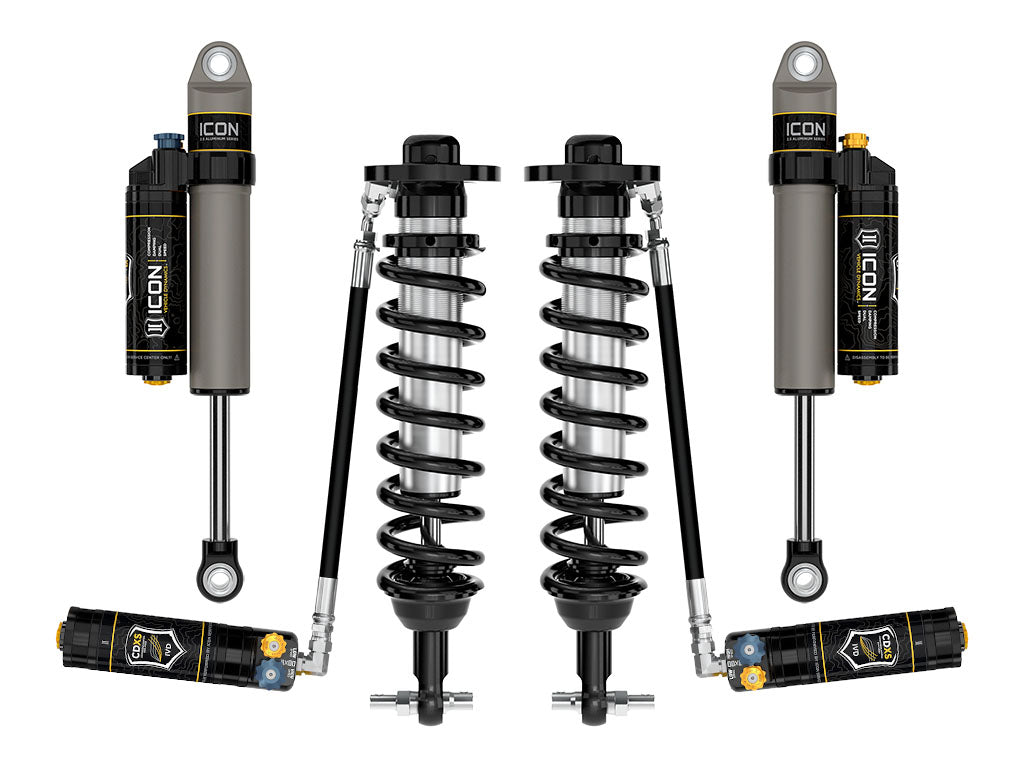

2021-2025 F-150 CDXS Front and Rear Lift Kit (ICOK93114D)

Level up your 2021-2025 F-150 with this complete ICON suspension system. 0-2.75" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

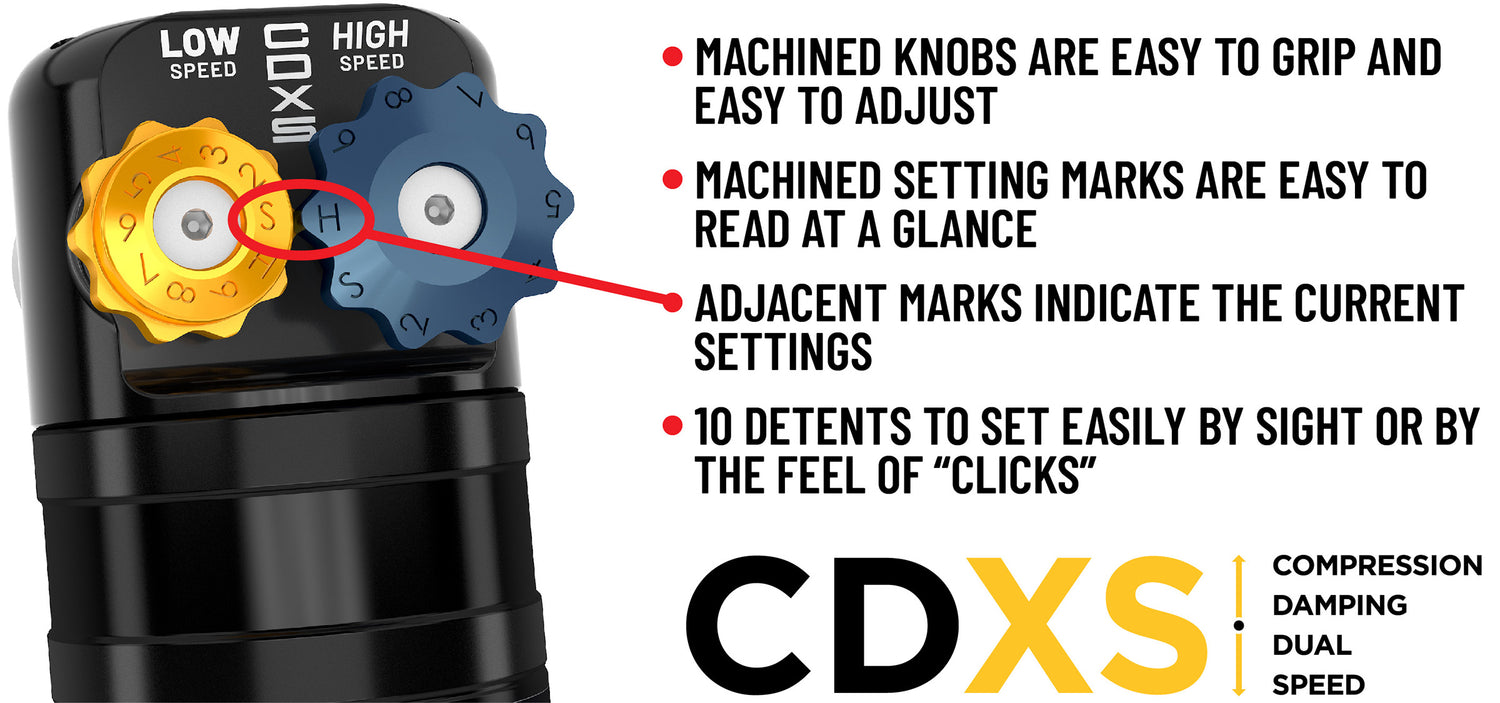

• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Adjustable coilovers from 0-2.75" of lift height
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pins
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 100% Bolt-on system - no cutting or welding necessary for install

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Only fits 4WD models
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Will Not Work With Factory Installed Electronically Controlled Suspension
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
• Will not fit F-150 Tremor or F-150 Raptor
• Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
• Included rear shocks are compatible with 0-1" of rear lift over stock on most models

Manufacturer Description

ICON Vehicle Dynamics 2021-2025 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5" coilover shocks featuring CDXS equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel" through the range of travel. These coilovers are also height adjustable from 0-2.75" of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series CDXS piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. The ICON Vehicle Dynamics 2021-2025 F-150 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
