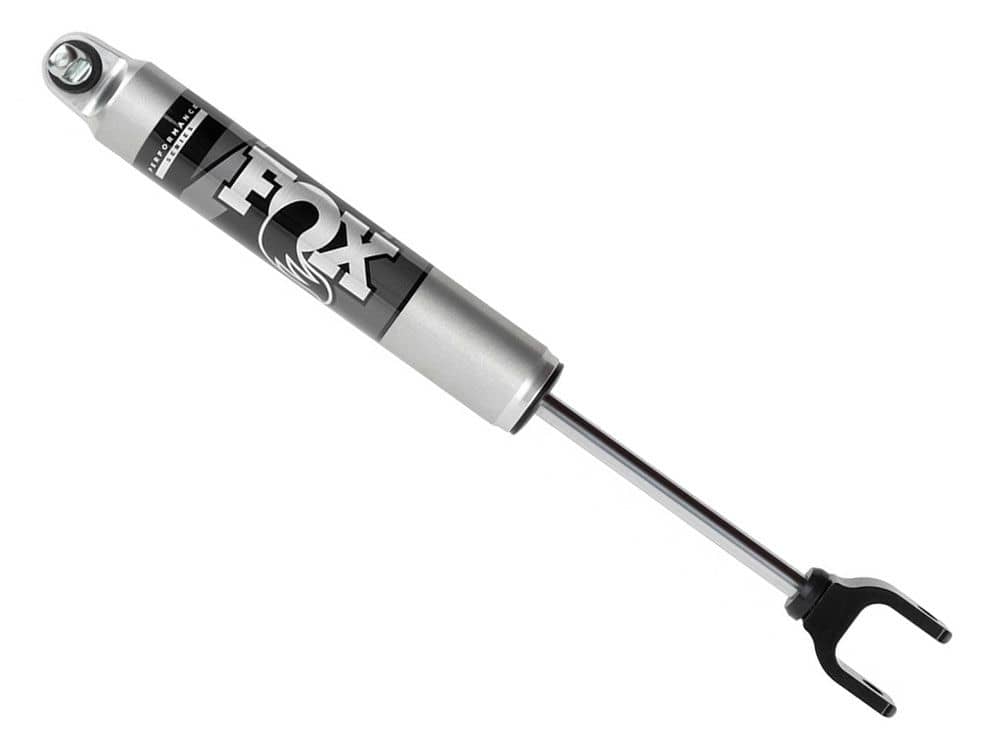

2020-2026 GM HD Front Fox 2.0 Series Shock 1-2.5" Lift (FOX98524240)

Upgrade the on-road comfort and off-road control of your Chevy Silverado or GMC Sierra 2500HD / 3500HD to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 1 to 2.5-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design


Specs

• Adjustable Damping : No
• Compressed Length : 13.28
• Extended Length : 18.91
• Finish : Clear-anodized
• Gas Charged : Yes
• Lower Mount Code : N/A
• Lower Mount Type : Clevis
• Shaft Diameter : 5/8"
• Travel Length : 5.63
• Type : Smooth Body IFP
• Upper Mount Code : BP5
• Upper Mount Type : Bar Pin
