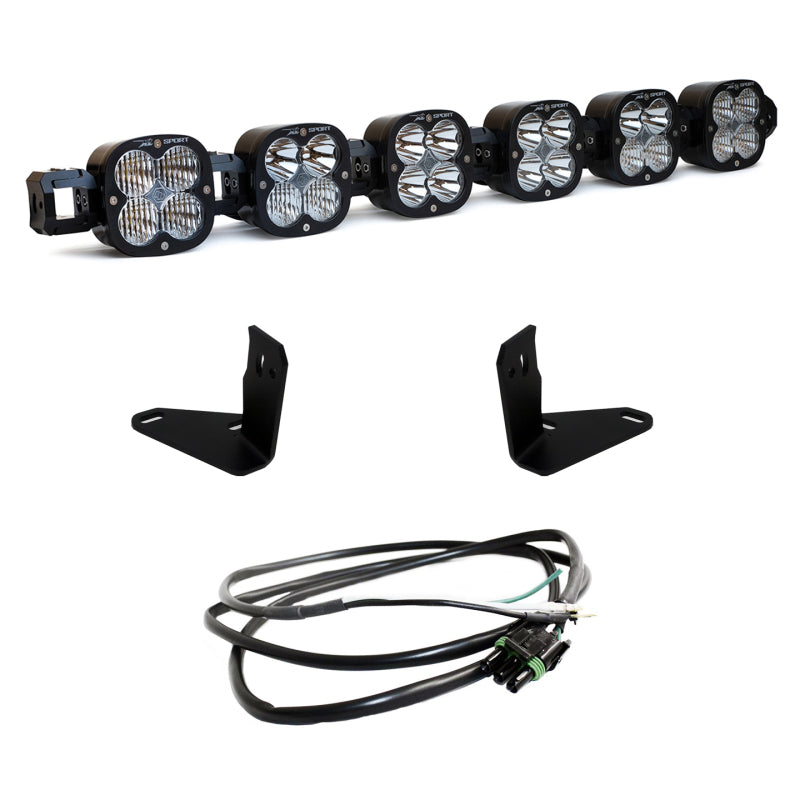

2021-2026 Bronco 6 XL Linkable Light Bar Kit Steel Bumper Mount w/ Upfitter (BAJ447750UP)

The 6 XL Linkable Bumper Light Kit offers extreme lighting performance and customization for high-speed off-road navigation. This system utilizes six XL Sport LED lights joined by a specialized linking system, allowing for 45 degrees of vertical pitch adjustment and independent horizontal adjustment for each unit. This design enables the user to create a custom arc or straight configuration that maximizes forward projection while completely eliminating hood glare for a clearer view of the trail.

Features

• XL Linkable system provides 45 degrees of vertical pitch adjustment per light
• Independent horizontal adjustment for custom straight or arched configurations
• High-intensity LED output designed for a blend of distance and peripheral coverage
• MoistureBlock technology ensures units are waterproof, rainproof, and submersible
• CopperDrive system safely drives LEDs at 100 percent power
• 5000K daylight color temperature reduces driver fatigue and eye strain
• Hard-coated polycarbonate lenses and powder-coated cast aluminum housings

Specifications

• Total Lumens: 18,900
• Wattage: 156W
• Amperage: 12A
• IP69K waterproof rating
• IK10 compliant for mechanical impact resistance

Notes

• This kit is designed for installation on factory steel bumpers.
• The included pre-load support brackets ensure light bar rigidity and prevent vibration in harsh terrain.
