2021-2026 Bronco Front and Rear Lift Kit (ICOK40014TX)

Level up your 2021-2026 Bronco with this complete ICON suspension system. 2-3" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Improved suspension performance and ride quality over stock
• Up to 11.5" front / 14" rear wheel travel with 35" tire fitment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
• Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25" of rear lift height over stock 4-door Sasquatch package equipped Broncos
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" diameter shafts
• ICON engineered coil springs featuring a unique dual rate rear coil design with increased spring rates for heavier equipped Broncos
• High strength alloy CNC machined lower bar pins
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)

Important Notes

• Will not fit Bronco Raptor
• 2 Door Models Will Sit Taller Than 4 Door Models.
• When Running 37" Tires Use Up Travel Limiters Part #611075 In The Front
• When Running 37" Tires Use Up Travel Limiters Part #611074 For The Rear
• Lift Heights & App Notes Based On Sasquatch Equipped Vehicles
• When Running Factory Lower Links Use Part #611072
• Shocks Are Fully Serviceable
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Rear reservoir brackets may interfere with some aftermarket step or rock slider mounts. Modifications may be required.
• Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
• Bronco Everglades will have front lift height range of 1.5-2.5" over stock
• ICON Heavy Rate Rear Coil Springs are optimized for increased rear ride height on Broncos with additional weight added to the rear. ICON Heavy Rate Rear Coil Springs will result in a slight positive rake when the Bronco is unloaded.

Manufacturer Description

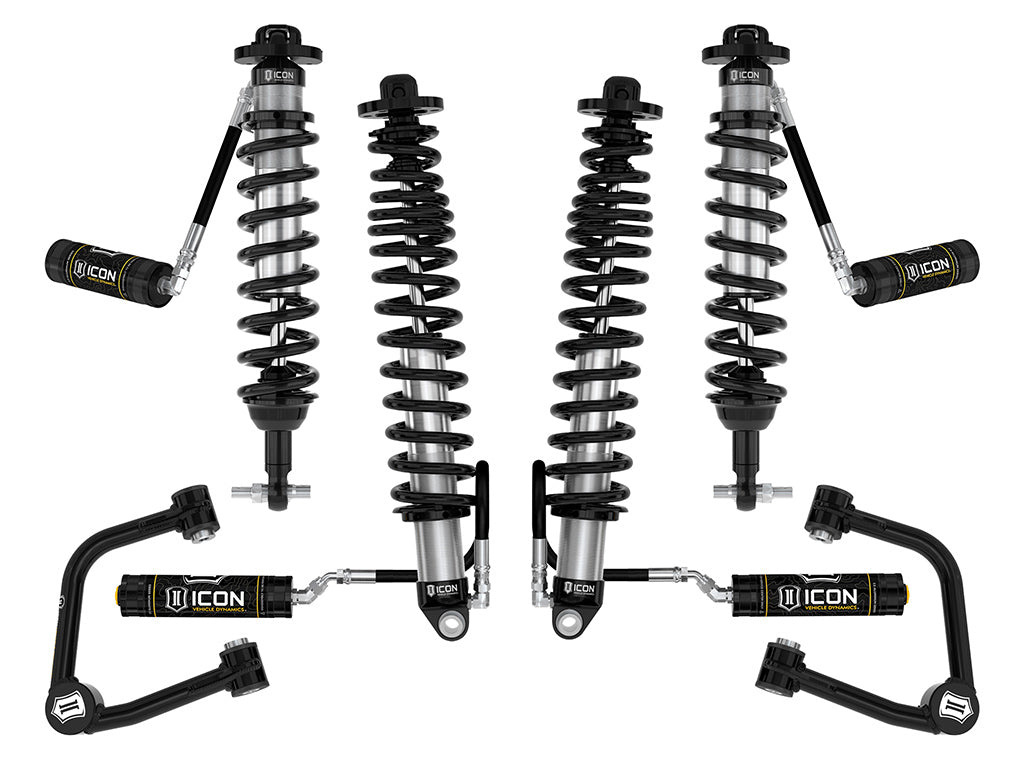

The ICON Vehicle Dynamics Stage 4 Suspension System for the 2021-2026 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3" of front lift and 1.25-2.25" of rear lift over stock 4-door Broncos with the Sasquatch Package. To provide for sustained shock performance at speed through rough terrain, Stage 4 adds remote reservoirs to the ICON Coilovers. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 4 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).
