2021-2026 F-150 6" MAX3.3 Suspension System w/ Falcon 3.3 Adj Shocks (42-21641)

Description

The ReadyLIFT 6-inch MAX3.3 Suspension System takes the 2021-2026 Ford F-150 4WD from capable to unstoppable. Built around Falcon 3.3 Fast Adjust remote reservoir dampers, it pairs a full 6 inches of lift with genuinely tunable ride quality, so the same truck can commute quietly on Monday, tow to camp on Friday, and get pushed hard on Saturday. Heavy-duty fabricated steel crossmembers, lifted knuckles and DOM tube steel upper control arms correct the suspension, steering and driveline geometry so factory handling manners survive the lift.

Features

• Delivers a full 6 inches of lift for serious ground clearance and a properly aggressive stance.
• Falcon 3.3 Fast Adjust dampers with two independent tuning knobs for on-road and off-road use.

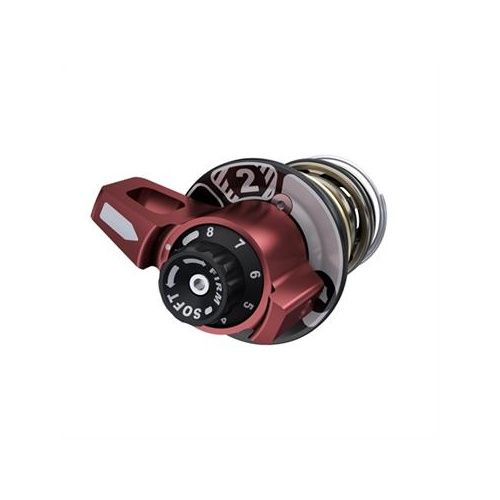

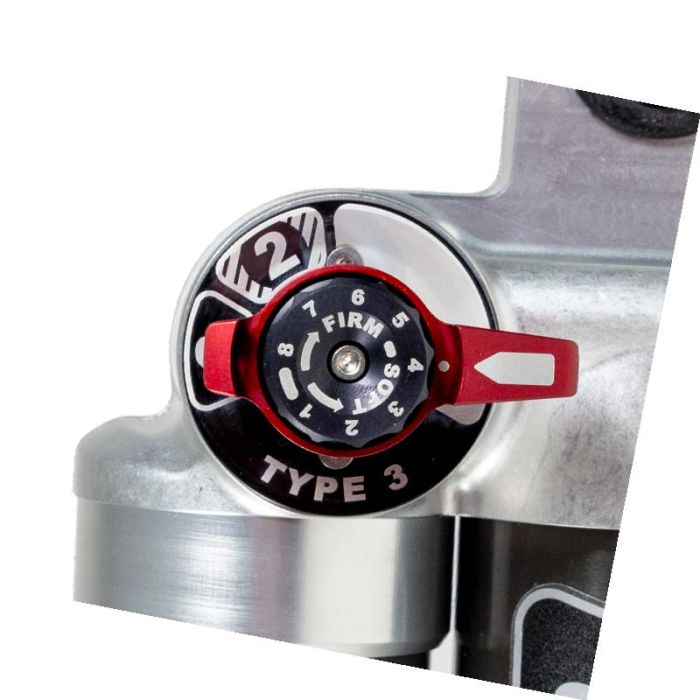

• 3-position Fast Adjust Knob for Soft, Custom and Firm compression; Soft mode partially bypasses the main piston for a plusher ride.
• 8-position Micro Adjust Dial for fine damping changes between the primary settings.
• Remote reservoir design raises the nitrogen-to-oil ratio for consistent damping across a wide temperature range.
• Hard-anodized large-bore 6061-T6 aluminum shock bodies resist impact and corrosion while carrying more oil.
• VOD (Volume Optimized Damping) digressive linear piston ramps up quickly to cut body roll and resist bottoming out.
• Red Line high-VI shock oil holds performance from -50F to 450F with anti-wear and lubricity additives.

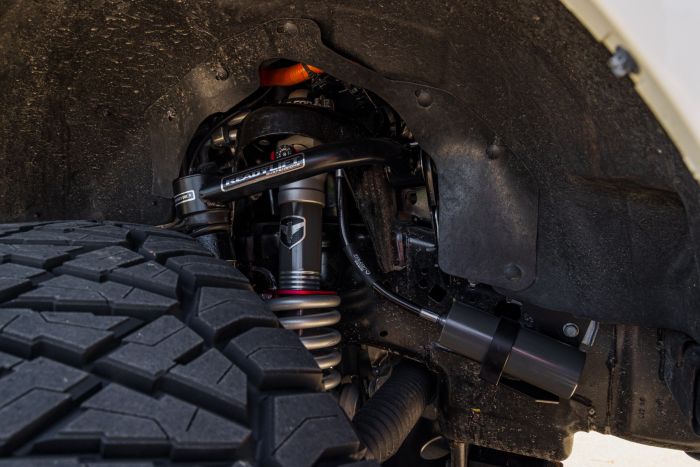

• DOM tube steel upper control arms with proprietary heavy-duty high-angle ball joints.
• Heavy-duty fabricated steel components built from 3/16" and 1/4" steel plate.

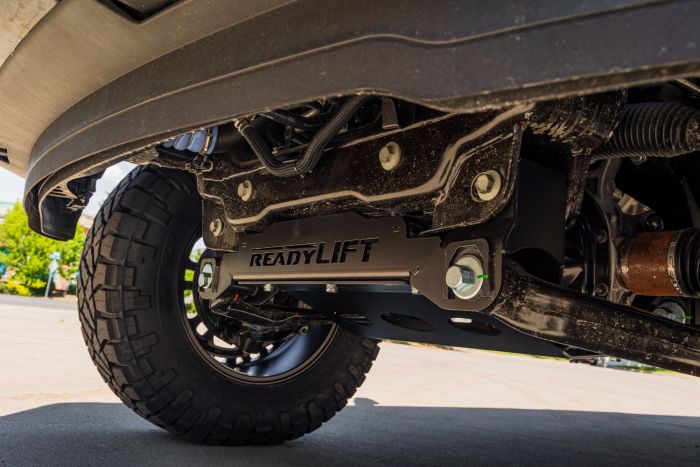

• Full-coverage differential skid plate in 3/16" steel plate.
• Fabricated steel 4" rear block with factory-style U-bolts for correct rake and a straightforward install.
• Includes HD alignment cam bolts for proper front-end alignment after the lift.

Notes

• Alignment, headlamp aim, and ADAS recalibration (if equipped) are required after installation.
• Trimming of the driver-side rear control arm pocket is required.
• Estimated installation time is roughly 10 hours plus alignment.

Compatibility Notes

• Fits 2021-2026 Ford F-150 4WD models only.
• Does not fit vehicles equipped with CCD (Continuously Controlled Damping).
• Does not fit 2WD models.
• Does not fit Raptor models.
• Does not fit F-150 models equipped with the diesel engine.

Tire Fitment

• Recommended (no trimming): 295/65R20 tires on 20x9 wheels with 0 offset.
• Maximum fitment (with trimming): 37x12.50 tires on 20x9 wheels with 0 offset.

Shock Specs

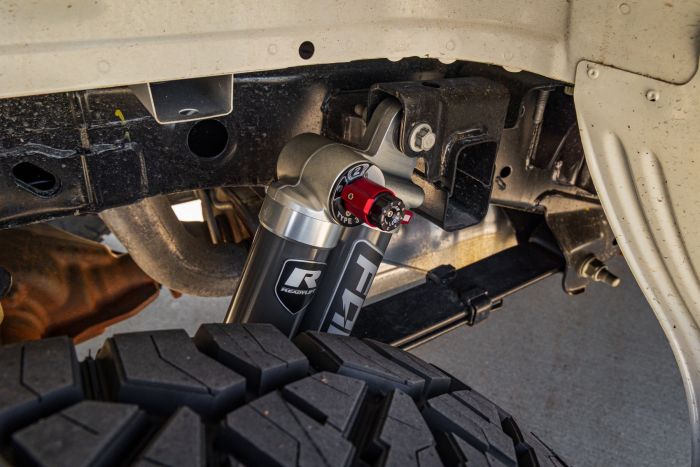

• Shock Type: Falcon 3.3 Fast Adjust remote reservoir dampers, front and rear.
• Construction: Hard-anodized large-bore 6061-T6 aluminum bodies.
• Internal Technology: Volume Optimized Damping (VOD) digressive linear piston.
• Fluid: Red Line high VI shock oil, consistent from -50F to 450F.
• Adjustability: Independent 3-position Fast Adjust Knob and 8-position Micro Adjust Dial.

Specs

• Lift Height: 6 inches.
• UCA Material: DOM tube steel with proprietary heavy-duty high-angle ball joints.
• Crossmember Material: Heavy-duty fabricated 3/16" and 1/4" steel plate.

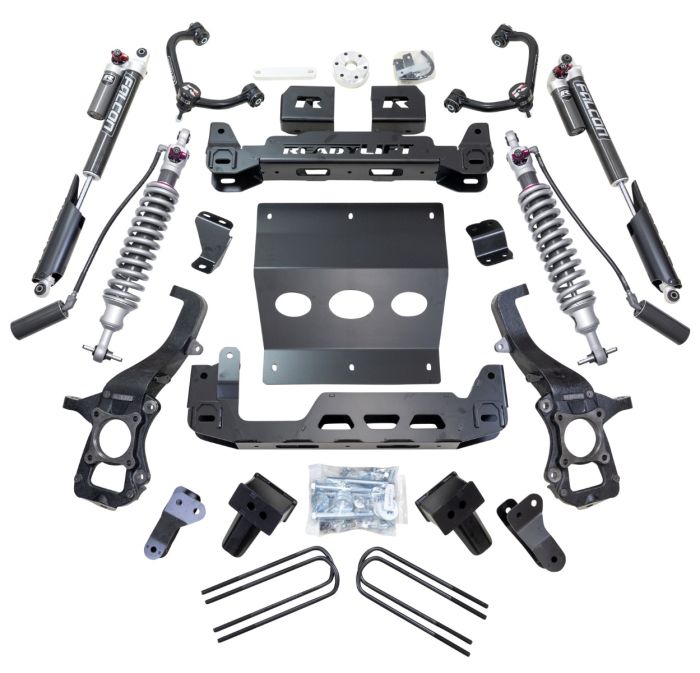

• Kit Contents: Front and rear Falcon 3.3 Fast Adjust dampers, DOM tube steel upper control arms, lifted knuckles, strut spacers, front and rear fabricated steel crossmembers, full-coverage differential skid plate, 4" fabricated rear block with factory-style U-bolts, brake line brackets, HD alignment cam bolts, and all necessary hardware.
