2021-2026 F-150 Raptor 6XL Pro Linkable LED Light Bar Kit (BAJ448095)

The XL Linkable Bumper Light Kit for the Ford Raptor is engineered for drivers who want a fully adjustable, high-output lighting system that performs as aggressively as the truck itself. Built around the XL Linkable platform, this bumper-mounted setup delivers a powerful blend of distance, width, and near-field illumination while eliminating hood glare. With modular adjustability and a clean integrated appearance, this system is designed to adapt to demanding off-road conditions and high-speed night driving.

Features

• XL Linkable system provides up to 45 degrees of vertical pitch adjustment per light or across the entire assembly.
• Independent horizontal adjustment allows straight or arced configurations to match bumper contours.
• Multi-pattern light output delivers smooth coverage across Zones 1 through 4.
• Bumper-mounted design minimizes hood glare and maximizes usable forward light.
• Next-generation LEDs provide high output with consistent beam blending.
• Pre-load brackets included for added mounting stability.
• Black rock guards included to protect lenses when lights are not in use.
• Wiring is fully crimped and trimmed for an efficient installation and future expandability.

Specifications

• Lighting System: 6XL Linkable
• Total Output: 18,972 lumens (Sport) or 24,570 lumens (Pro)
• Lens Configuration: Clear, multi-pattern
• Adjustment Range: 45 degrees vertical pitch
• Color Temperature: 5000K Daylight

Notes

• Designed specifically for bumper-mounted auxiliary lighting applications.

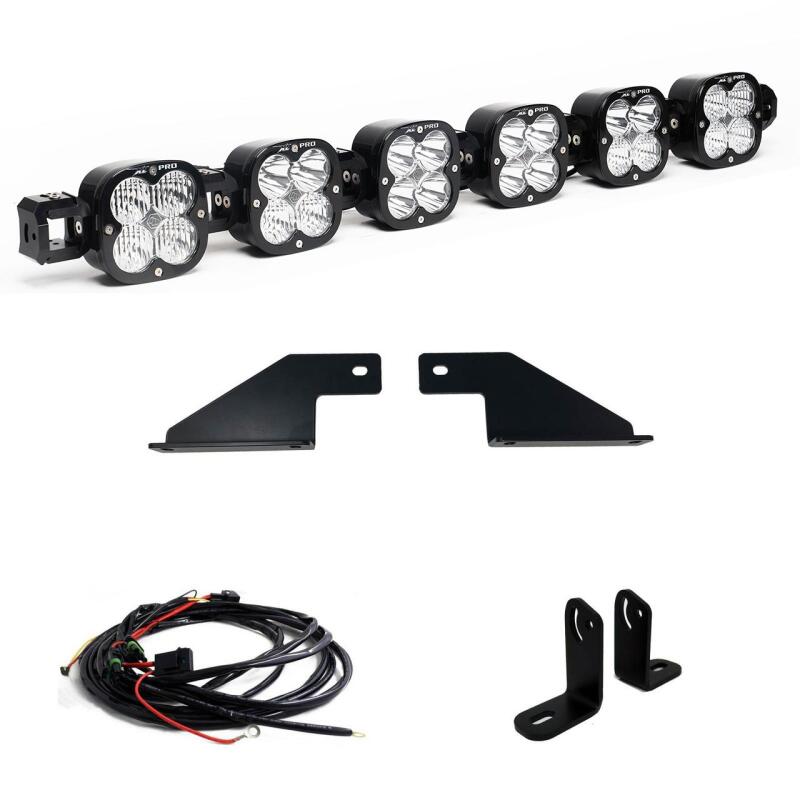

• Includes mounting brackets, wiring harness, pre-load brackets, and protective rock guards.
• Backed by a 30-day satisfaction guarantee and limited lifetime warranty.
