2022-2024 Tundra 3" SST Lift Kit w/ 2.1 Suspension System (62-52420)

Description

This is quite literally and figuratively the next level in terms of performance lift kits and suspension! ReadyLift's cutting-edge suspension system is specially engineered to deliver a bold stance, superior handling, and rugged durability, all while elevating your Toyota's performance, style, and capabilities to unprecedented levels. Featuring HD UCAs and CV axles for optimal articulation and travel over any terrain that won't bind or vibrate.

Part Number: 62-52420

Features

• No cutting, no hassle, just a straightforward upgrade

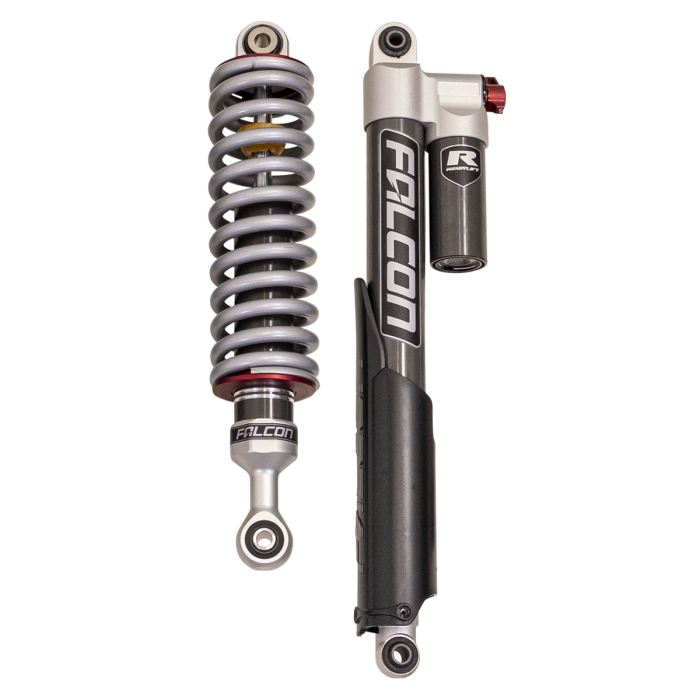

• Falcon 2.1 Series Suspension System delivers superior ride quality and handling

• HD Full coverage Front Skid Plate protects your differential and engine

• Optimized ball joint angles for maximum suspension articulation and durability

• Designed for maximum travel, reduced vibration, & unmatched reliability

• Maintains CV axle integrity through all suspension cycles
• Elevate your truck’s stance without compromising ride quality

Tire Fitment:

• 35" Maximum tire diameter
• 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

Additional Info

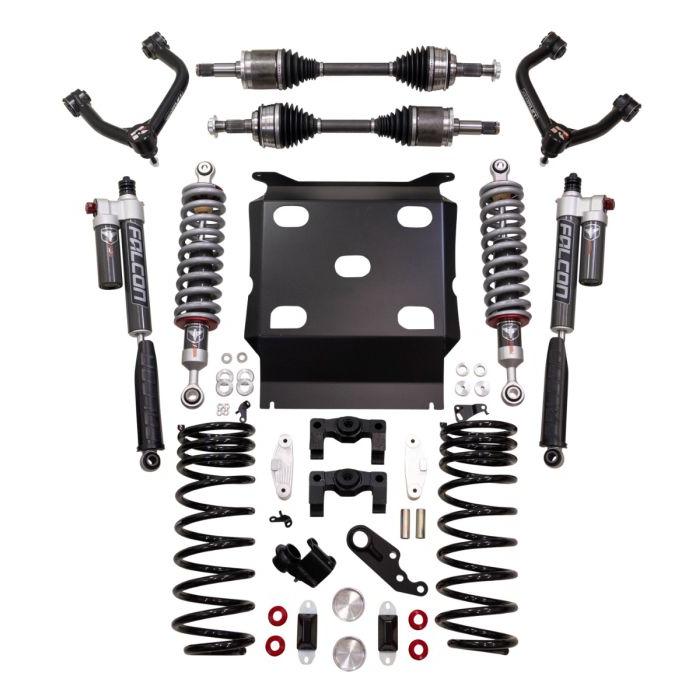

Includes:

• x2 - 1.08 ODX.54IDX.188 L R/R SHOCK CENTERING RING
• x1 - Premium rear left and right

• x2 - Premium Front Shock
• x1 - Differential Drop Spacer
• x4 - 1.52" OD x 0.85" ID Polyurethane Bushings
• x2 - 0.87" OD x 0.56" ID x 2.65" Crush Sleeves
• x2 - End Link Spacers
• Brake Line Relocation Bracket Right & Left Hand Side

• x2 - TUNDRA 0.55" FBSE
• Hardware pack for 62-52420
• x1 - Rear Brake line relocation bracket
• x4 - Rear Brake line spacer
• x2 Coil Springs
• Front skid plate
• x2 - 1.75 Outer Bump Stop extension
• x2 - rear outer bump stop
• x2 - inner rear bump stop extension 1.5"
• CV Axle kit
• Left and Right knuckle steering stop
• Left and Right front differential drop
• Left and Right UCA assembly

Notes

• This kit is not compatible with Tundra’s equipped with air ride, TRD Pro, or AVS systems.
