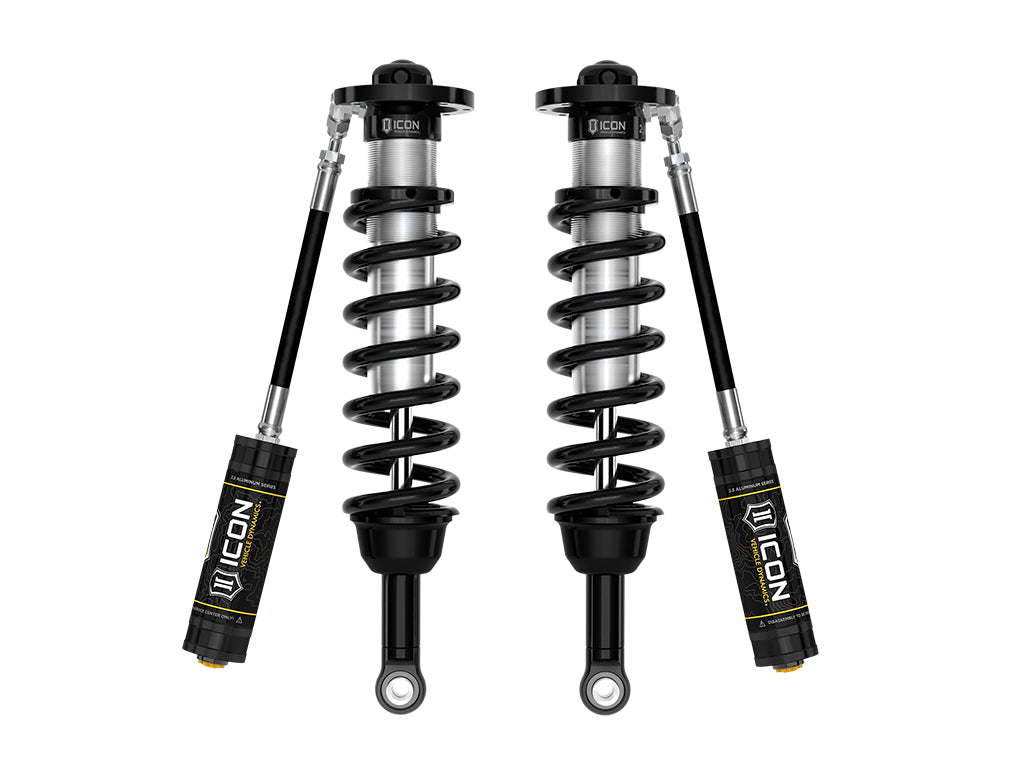

2022-2024 Tundra 2.5 RR Front Coilover Kit (ICO58771)

Drop in serious suspension performance on your 2022-2024 Tundra with ICON 2.5 Series coilovers. Remote reservoirs keep temps down and damping consistent when you push hard. Adjustable from 5-6" of lift over stock.

Features

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Specific length designed for use with ICON 6" Lift Performance Suspension System
• Adjustable ride height offers 5-6" of front lift over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Wheel & Tire Recommendations

• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Shocks are fully serviceable. Lift heights Indicated are for a stock equipped vehicle.
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• ICON Delta Joint Pro upper control arms required
• Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
• Requires minimum of 20" diameter wheels.
• Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
• Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
• Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
• Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.

Manufacturer Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6" of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.
