2022-2024 Tundra Front and Rear Lift Kit (ICOK53271)

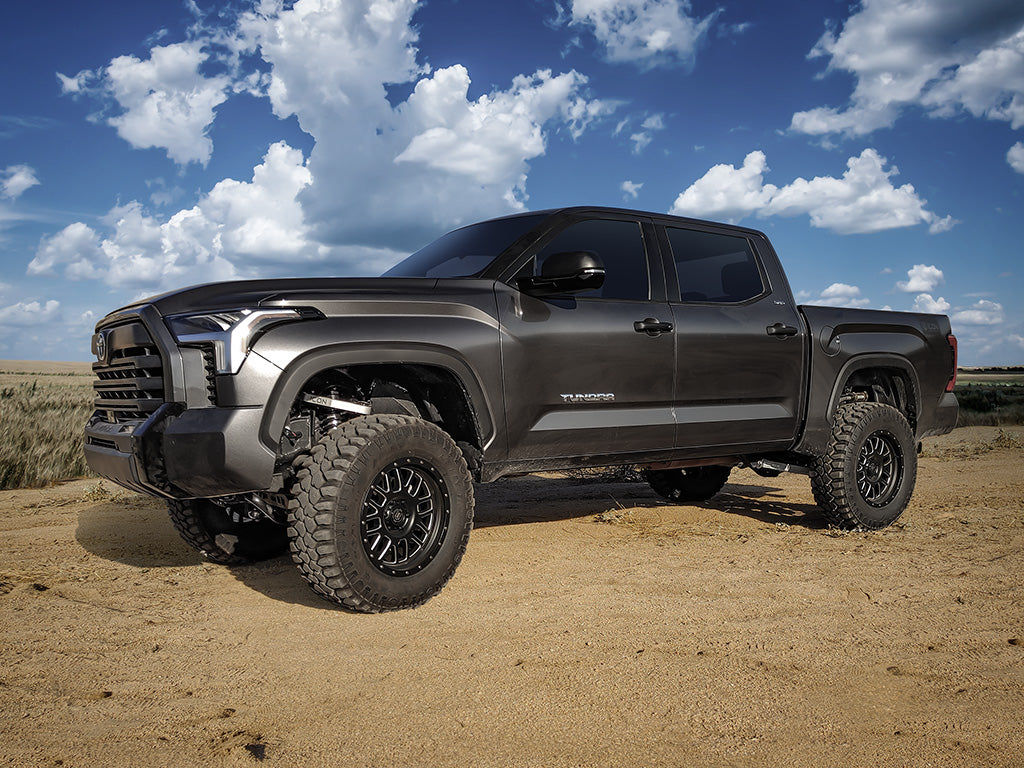

Level up your 2022-2024 Tundra with this complete ICON suspension system. 6" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

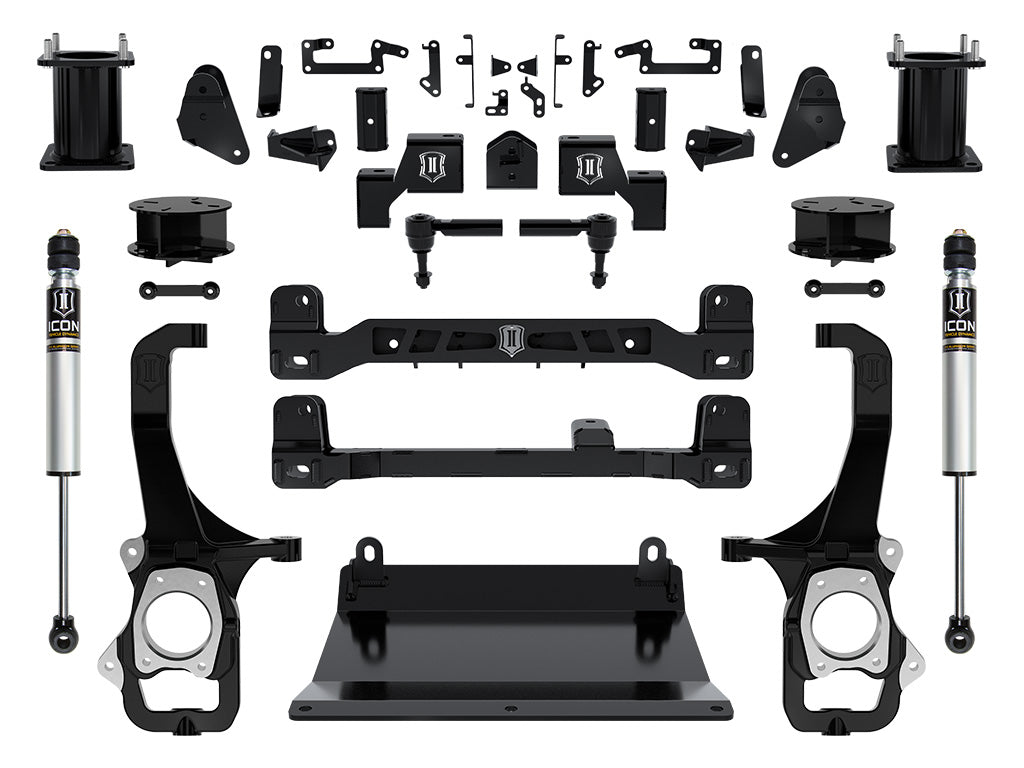

Features

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Front coilover spacer kit with heavy duty steel construction
• Provides 6" front suspension lift with only 4" of crossmember drop
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks to improve rear suspension performance
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Wheel & Tire Recommendations

• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• Not compatible with TRD Pro
• Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
• Not compatible with Tundra SR5 equipped with TRD Sport package
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Requires minimum of 20" diameter wheels
