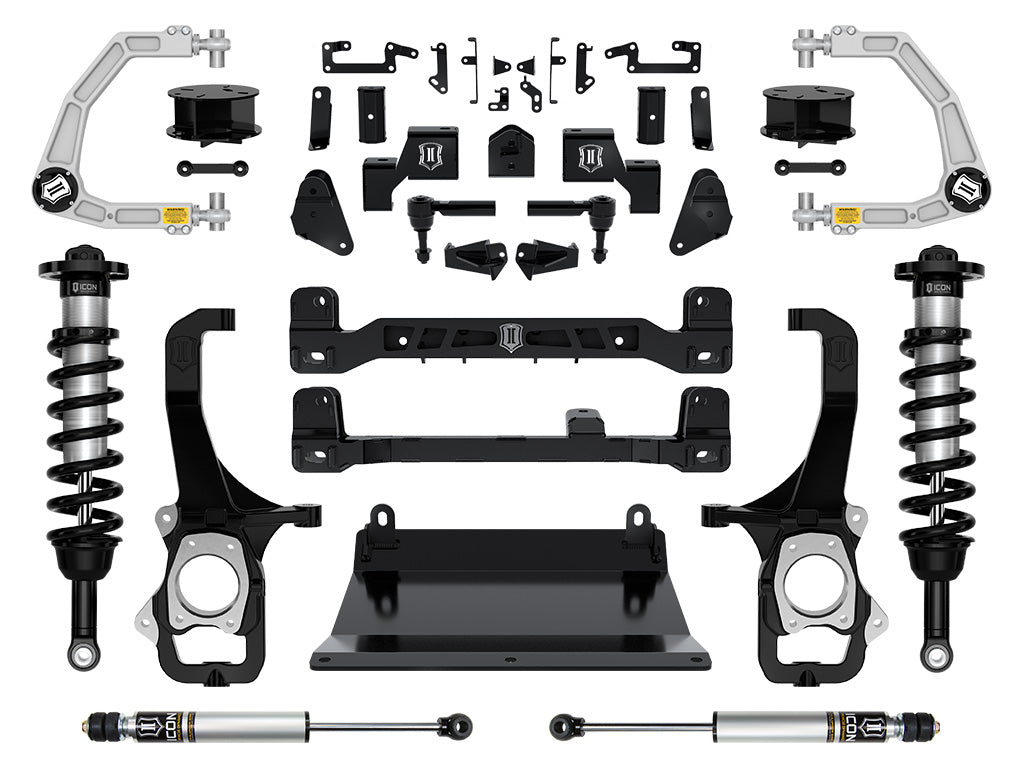

2022-2024 Tundra Front and Rear Lift Kit (ICOK53272)

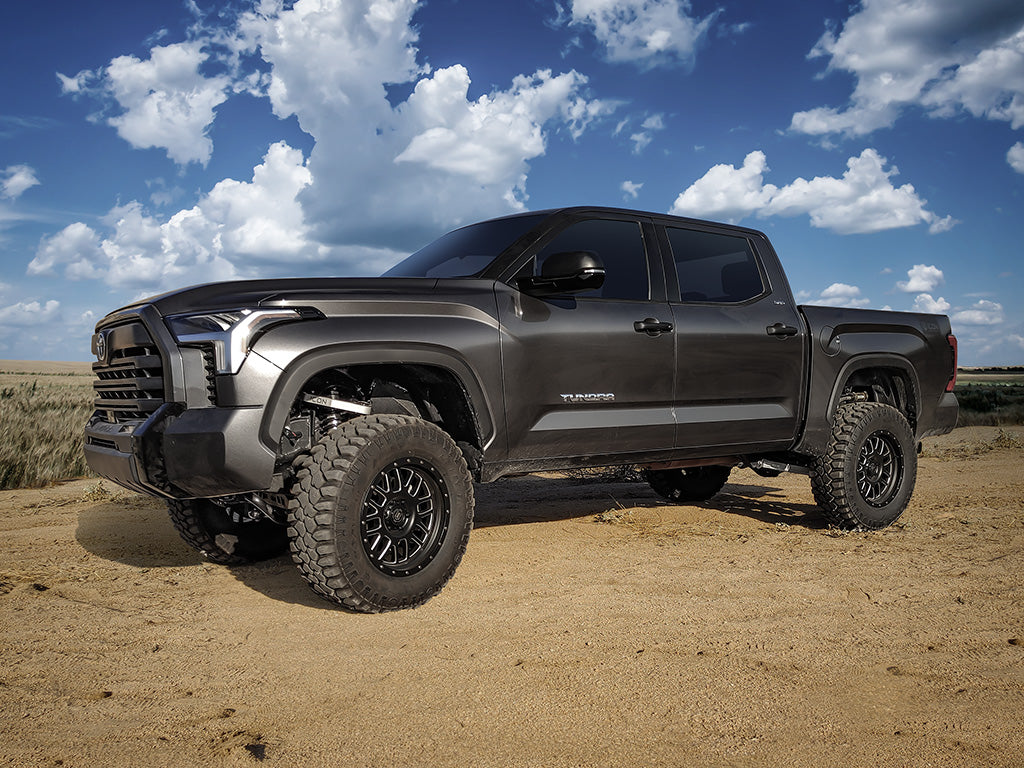

Level up your 2022-2024 Tundra with this complete ICON suspension system. 6" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6" of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets

Wheel & Tire Recommendations

• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Requires minimum of 20" diameter wheels
• Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
• Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
• Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
• Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
