2022-2026 Tundra 2.25" Lift FOX 3.0 Internal Bypass (BDS838FRS)

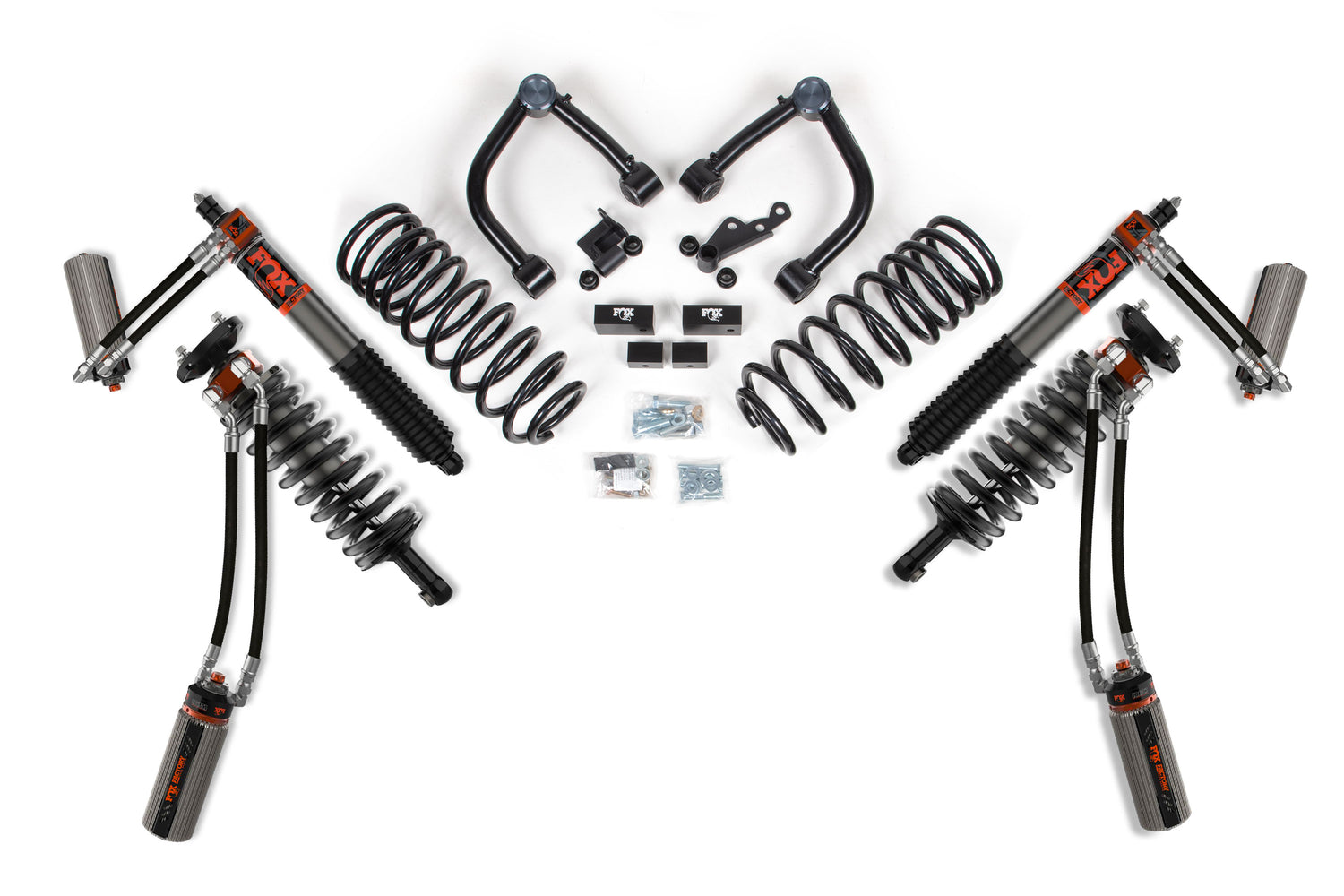

Elevate your Tundra's performance with this precision-engineered 2.25" suspension lift system from BDS Suspension. Built around the Legendary FOX 3.0 Internal Bypass Factory Race Coilovers, this kit delivers enhanced ground clearance, superior off-road articulation, and refined on-road handling characteristics. The complete package includes all mounting hardware and components needed for seamless installation, while accommodating larger tire fitment for increased capability and visual presence.

Features

• 3.0" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body
• Patented, internal bypass design
• Application-specific springs
• 7/8" stainless steel shafts
• Vehicle-specific tuning maximizes performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Finned reservoir, with DSC adjuster

Notes

• TRD Sports will achieve extra lift but will have the same stance as other models in the front
• Will not work with Adaptive Variable Suspension (AVS) System equipped vehicles

• Will not work with Air Ride models

• Will not work with TRD Pro models

• For regular off-road use, it is recommended to upgrade Non TRD Off-Road trucks half axles (CVs) to Toyota TRD's  (Driver Toyota Part# 434200C020, Passenger Toyota Part# 434100C020). Not including TRD Pro model

•  Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals
• For replacement ball joints, order BDS088200. Ball joints are directional and need to be positioned correctly when installed on the upper control arm.
• The ADAS system in some vehicles needs to be recalibrated

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 2.5"
• Rear Lift Method : Springs
• Rear Lift Height : 0"
• Shocks Included : Yes
• Lift Height : 2-3.5"

Tire Fitment

• 305 / 55 with 20 x 9 and 5 in. Backspace
• 295 / 65 with and Stock in. Backspace
• 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
