2022-2025 Tundra 2" SST Lift Kit w/ Diff Drops (69-52221)

The ReadyLIFT 2-inch SST Lift Kit for 2022-2025 Toyota Tundra trucks is specifically engineered for models equipped with Load-Leveling Rear Height Control Air Suspension and Adaptive Variable Suspension (AVS). This system provides a subtle yet effective 2-inch lift to all four corners, leveling the front of the vehicle with the rear for an improved stance. Featuring fabricated steel spacers and a front differential drop to maintain safe CV axle angles, this kit allows for larger tire fitment while preserving the full functionality and ride quality of the factory air suspension system.

Features

• Provides a level 2.0-inch lift across both front and rear axles.
• Fabricated steel front strut spacers and rear airbag spacers ensure structural durability.
• Includes a front differential drop kit to maintain optimal operating angles for CV joints.
• Polyurethane bushings in the differential drop prevent unwanted movement under load.
• Maintains the full operation and adjustment range of the OEM load-leveling air system.
• Includes rear shock extensions and rear brake line relocation brackets for proper suspension travel.
• Equipped with a slotted rear ride-height sensor bracket for personalized fine-tuning.
• Allows for a no-trim fitment of up to 34-inch tires (295-60R20 on 20x9 +18 wheels).
• 100% bolt-on installation requiring no cutting or welding.
• Load-Leveling Rear Height Control Air Suspension and Adaptive Variable Suspension (AVS)

Notes

• A professional wheel alignment is required after installation to ensure optimal handling and tire wear.
• Headlamp aim must be checked and adjusted for safety following the change in ride height.
• Advanced Driver Assistance Systems (ADAS) should be recalibrated to maintain proper monitoring and function.
• Installation by a certified mechanic is recommended due to the complexity of the air suspension components.
• To use the TRD Pro skid plate with this kit, the supplemental Skid Plate Drop Kit (PN: 67-52050) is required.
• ReadyLIFT High-Performance CV Axles (PN: 67-52420CV) are highly recommended for all lifted 2022-up Tundras to prevent 4WD drivetrain damage.

Compatibility Notes

• Fits 2022–2025 Toyota Tundra 2WD/4WD models equipped with factory rear air suspension and AVS.
• Covers i-Force Max V6 Hybrid models.
• Not compatible with Tundra models using rear coil springs.
• Not for use on TRD Pro models or 1794 Edition trucks equipped with Fox Shocks.

Specs

• Lift Height: 2.0 inches (Front and Rear).
• Max Tire Size: 34 inches.
• Material: CNC Laser-Cut Fabricated Steel.

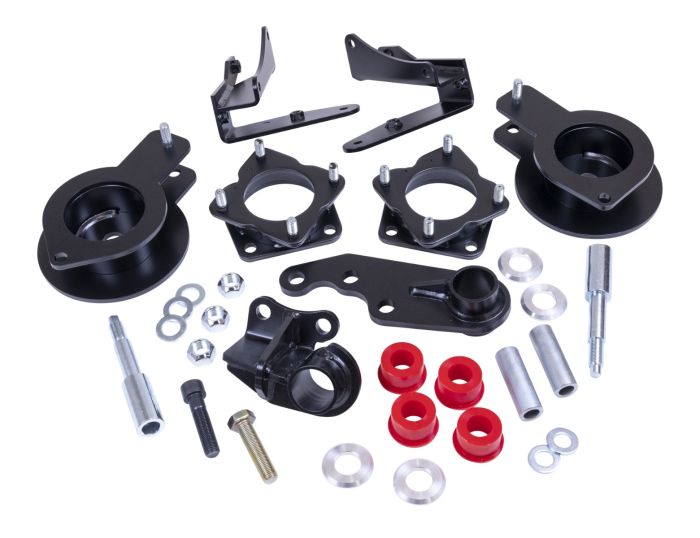

• Kit Contents: Front strut spacers, rear airbag spacers, rear shock extensions, rear brake line spacers/bracket, ride-height sensor brackets, differential drop spacers with polyurethane bushings, and hardware.
