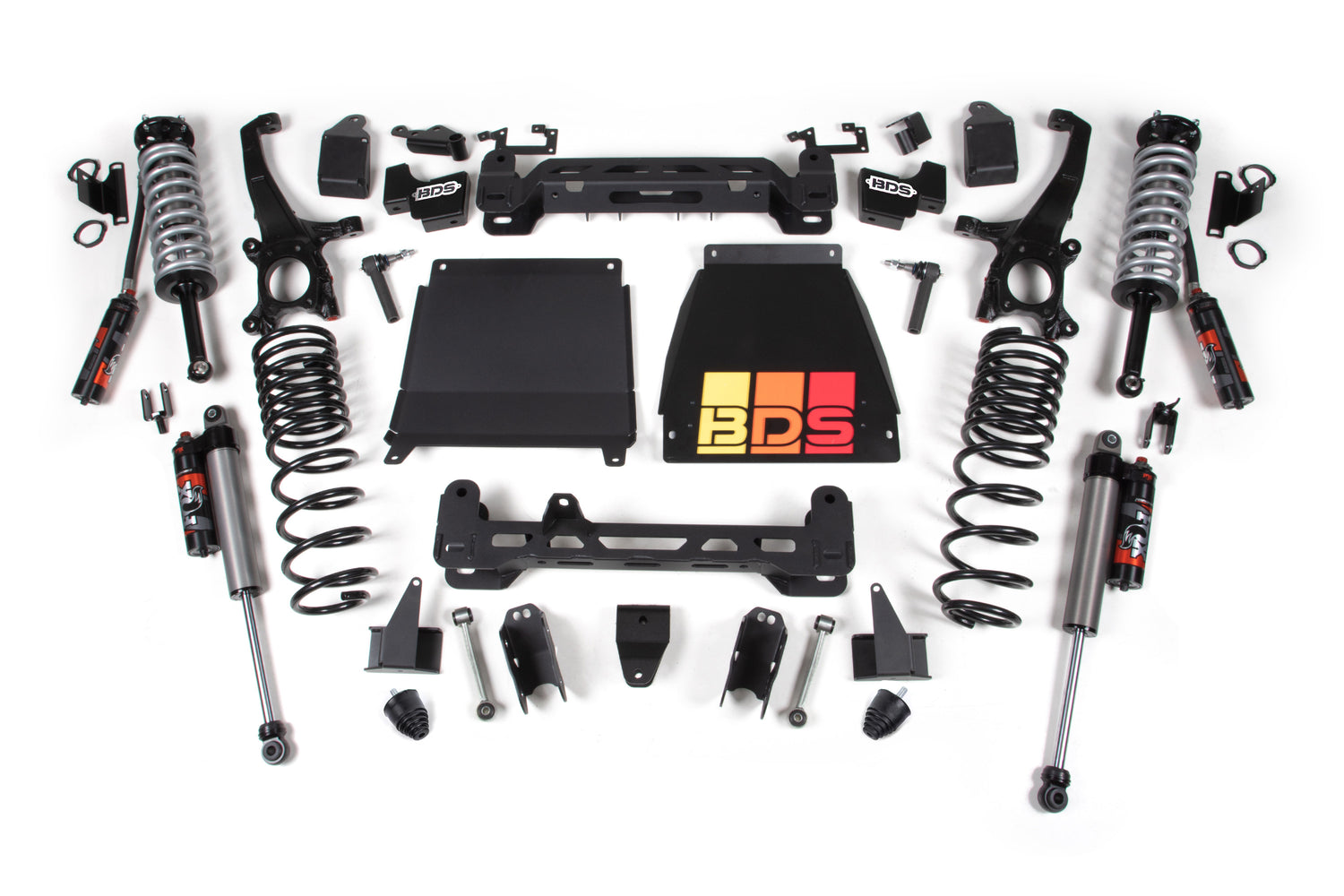

2022-2026 Tundra 4WD 5" Lift Fox 2.5 PE Coilover Kit (BDS839PES)

Engineered by BDS Suspension for Tundra 4WD models, this 5" lift kit combines FOX 2.5 Performance Elite coil-over shocks with optimized suspension geometry to deliver serious off-road performance without sacrificing street manners. The system accommodates up to 37-inch tires while maintaining responsive handling on pavement. Whether you're running a hybrid or gas powerplant, this kit elevates your Tundra's capability with increased ground clearance and refined damping characteristics that adapt to varied terrain. Built for trucks that demand both capability and composure.

Features

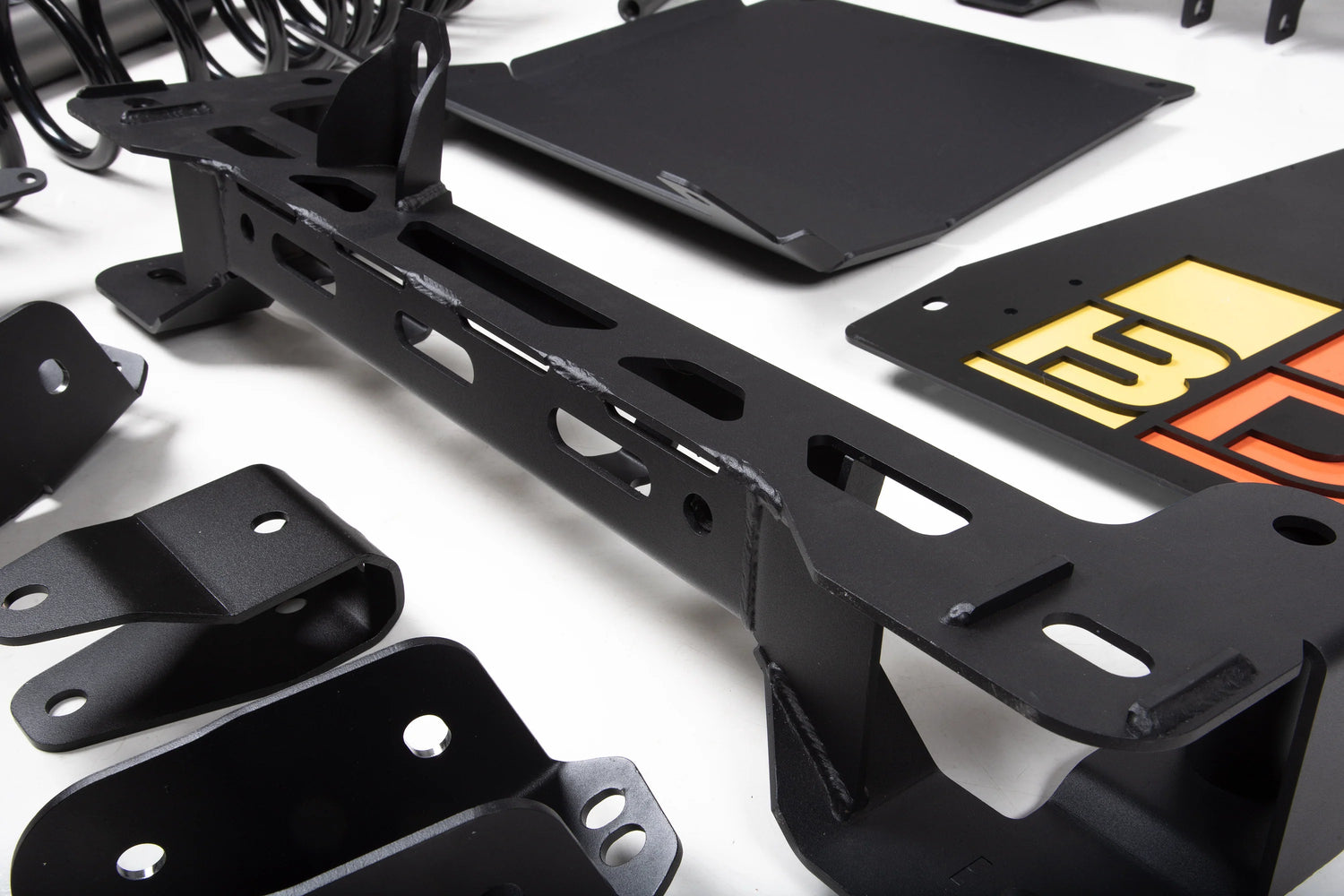

• High clearance crossmember design maximizes ground clearance

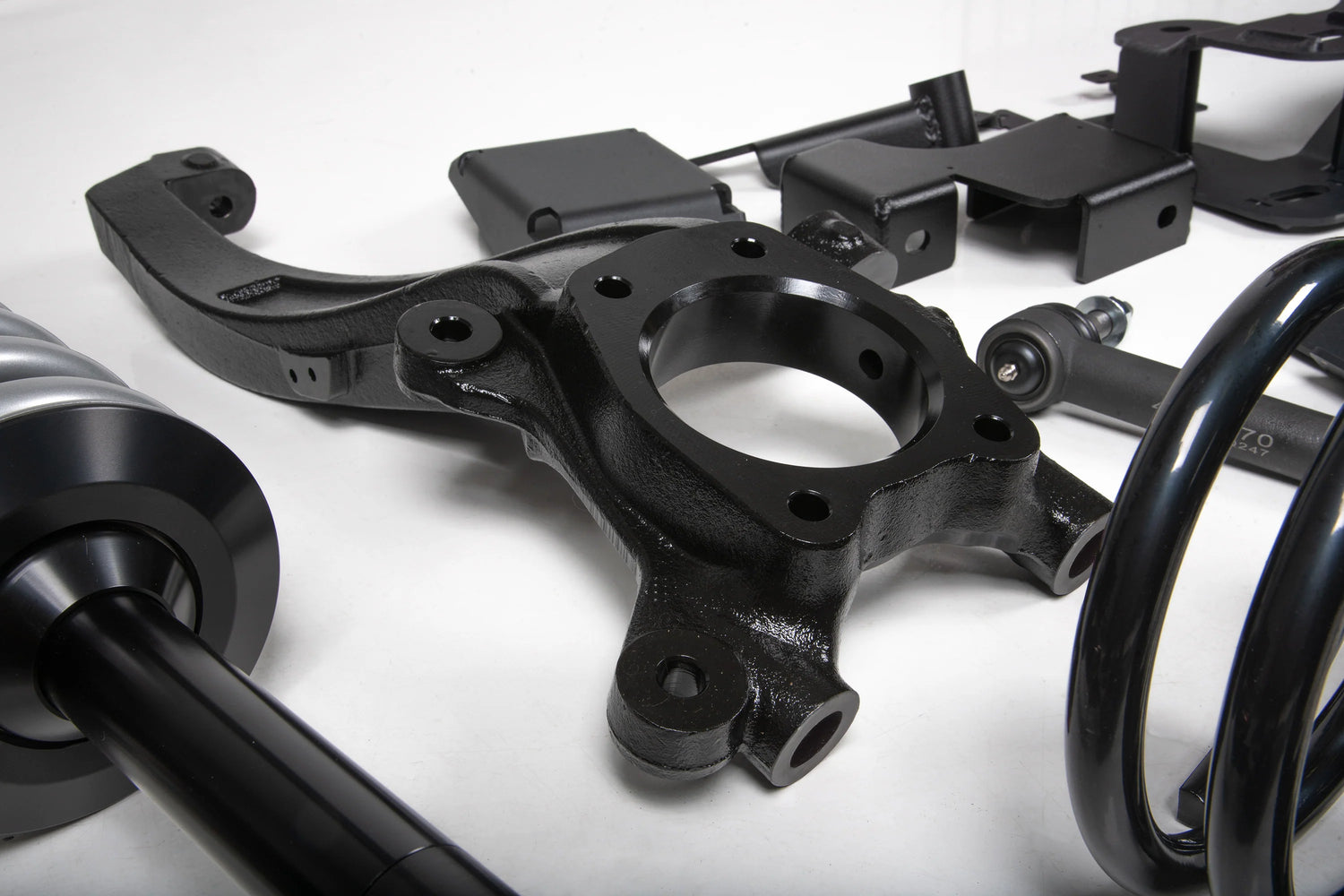

• Robust steering knuckles and tie rod ends maintain ESC system compliance

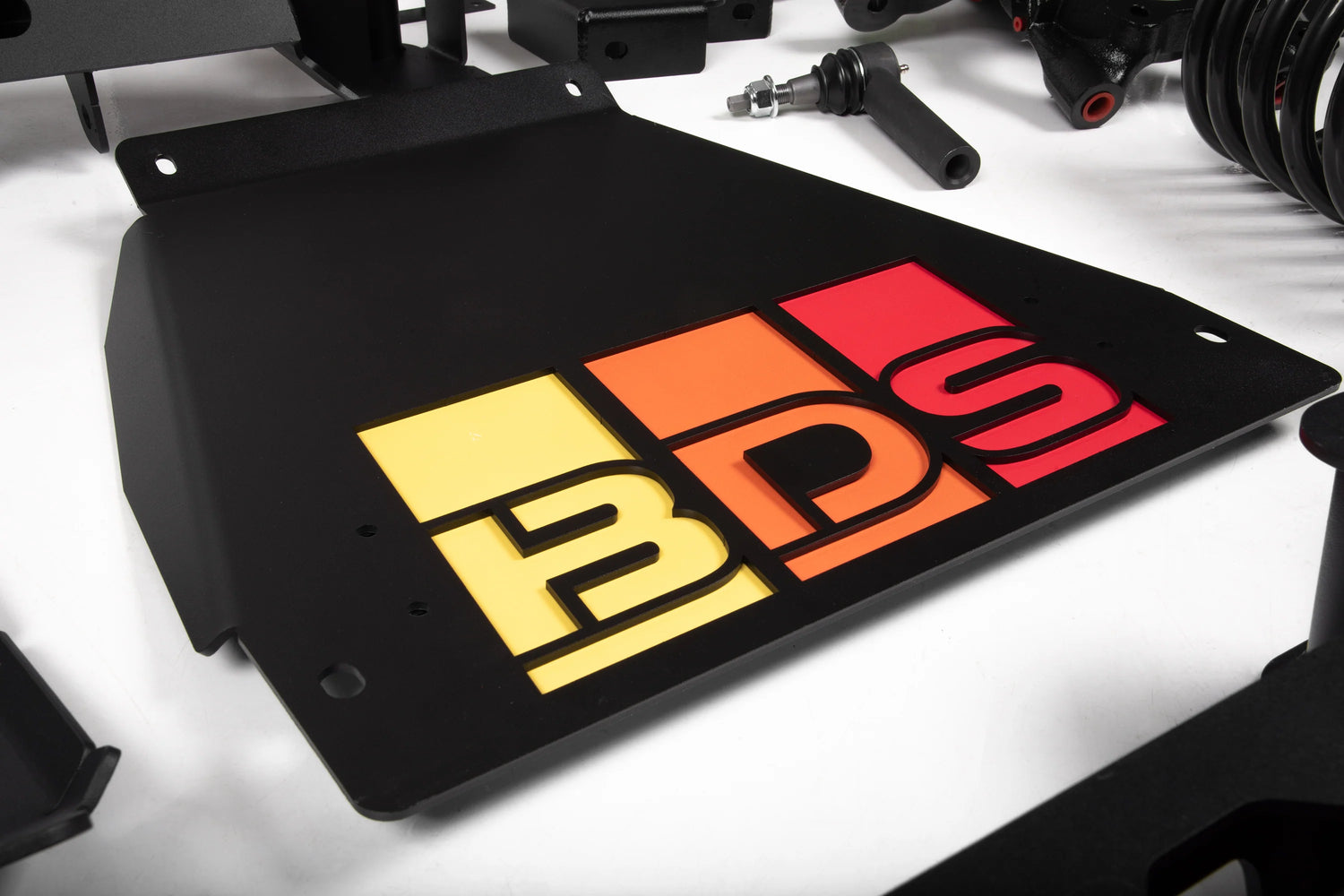

• Fullwidth mult-piece skid plate system improved offroad protection
• Progressive rate rear coil springs improve ride quality, load capacity and suspension travel
• Factory Protection Plus drivetrain warranty included

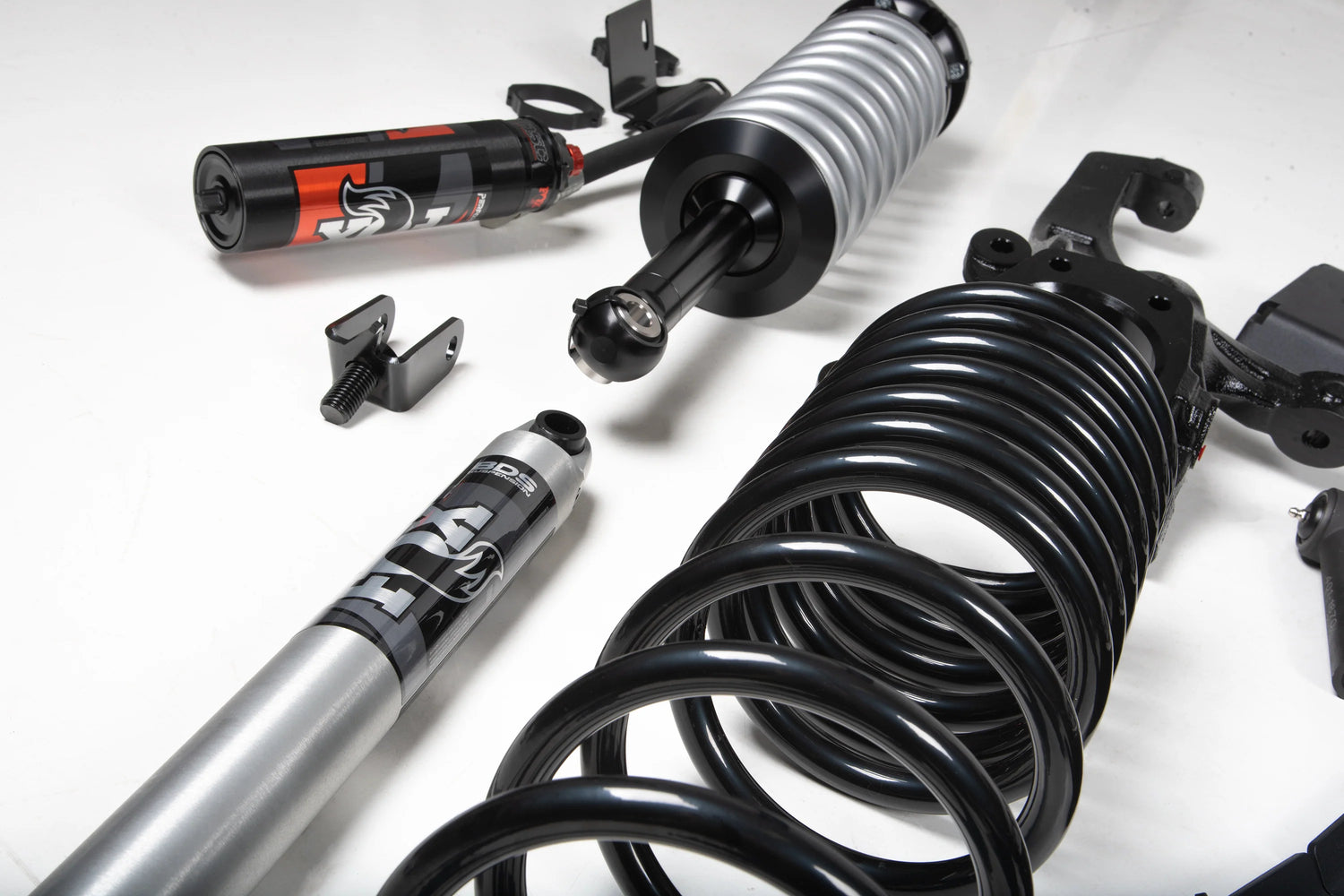

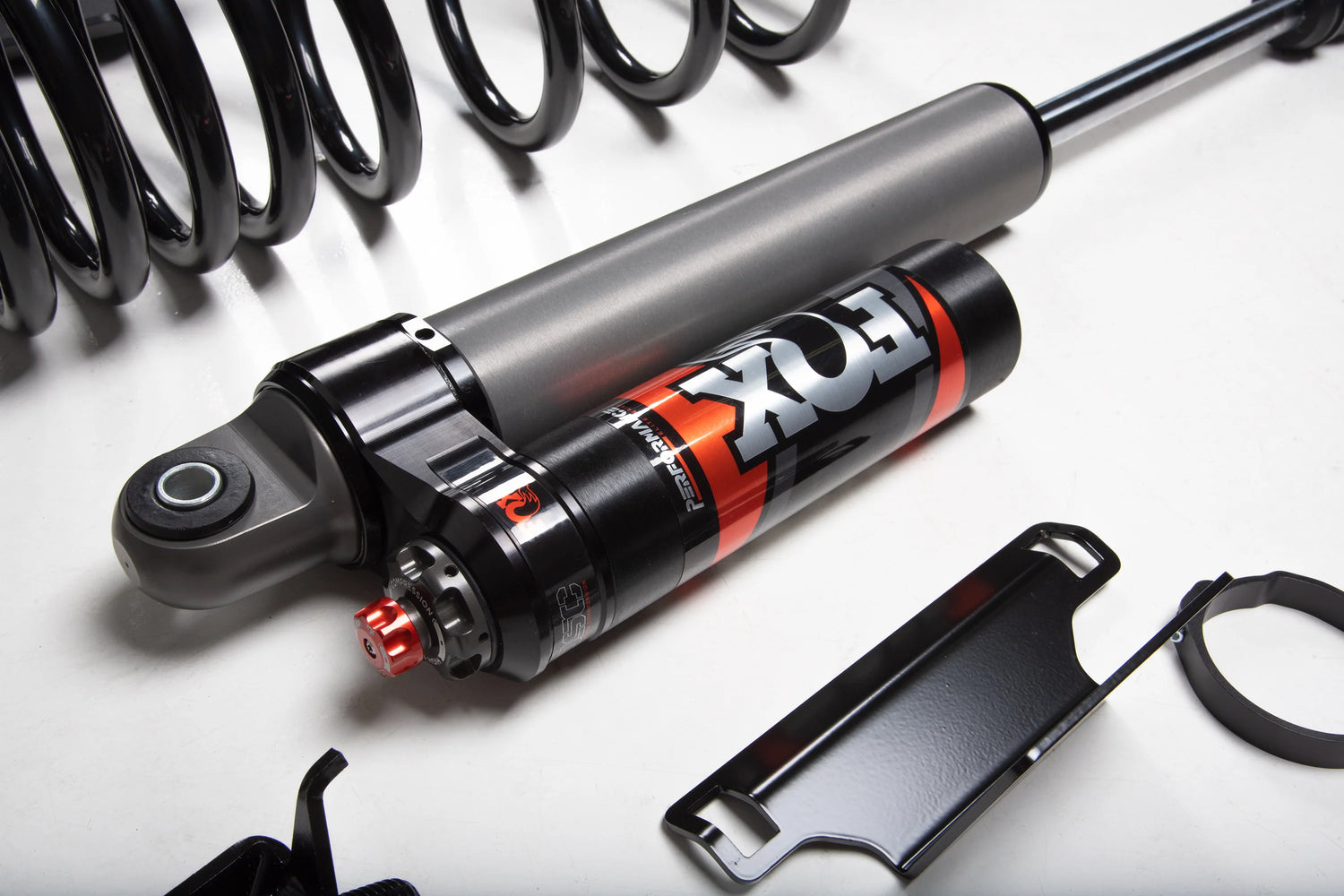

Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 5"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 4"
• Shocks Included : No
• Lift Height : 4-5.5"

Notes

• TRD Sports will achieve the same amount of lift but will have a lower stance than other models in the front
• Will not work with Adaptive Variable Suspension (AVS) System equipped vehicles
• Will not work with Air Ride models
• Will not work with TRD Pro models

Tire Fitment

• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5"-6" in. Backspace
• 37 x 12.5 with 20 x 9 and 5.6 in. Backspace
