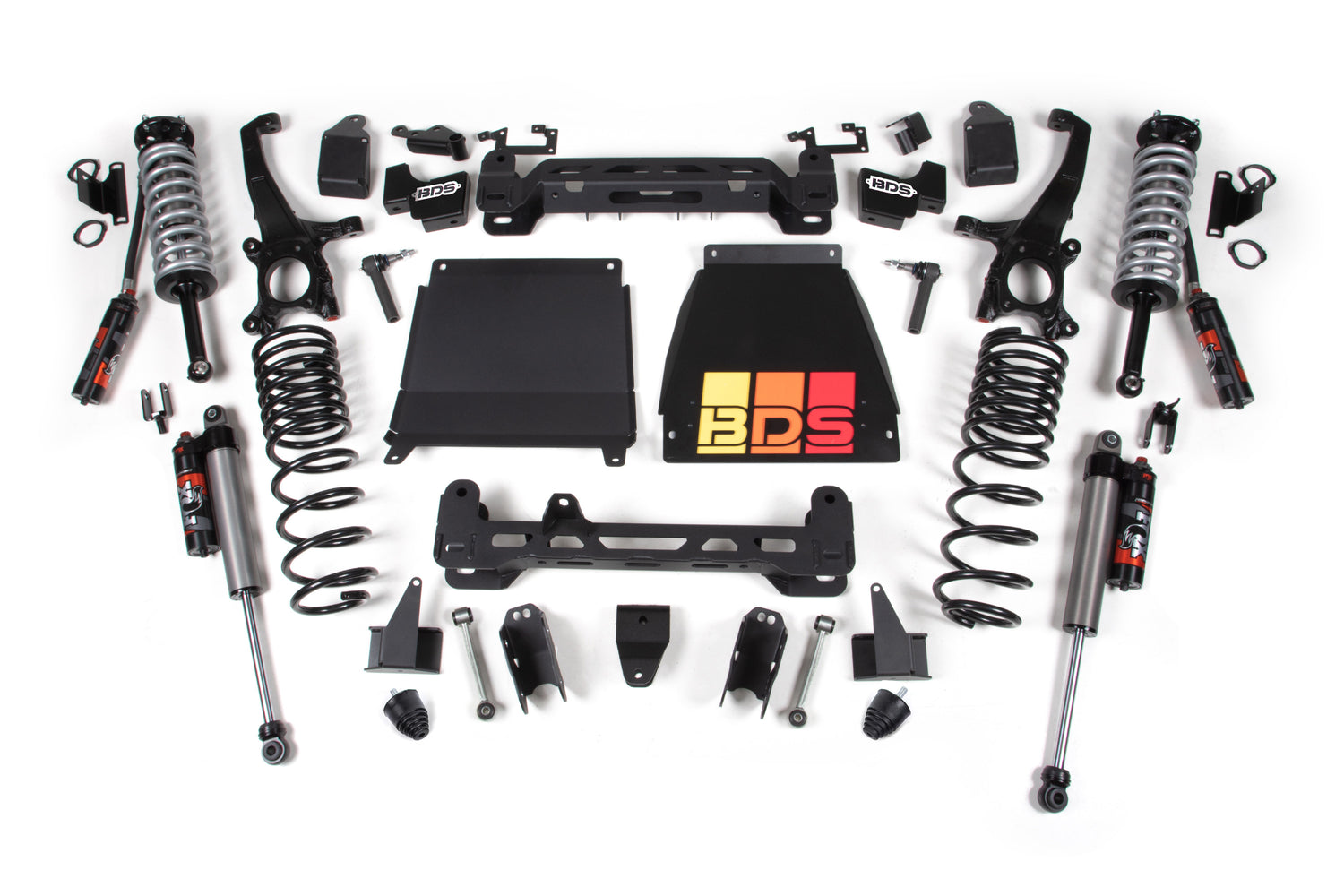

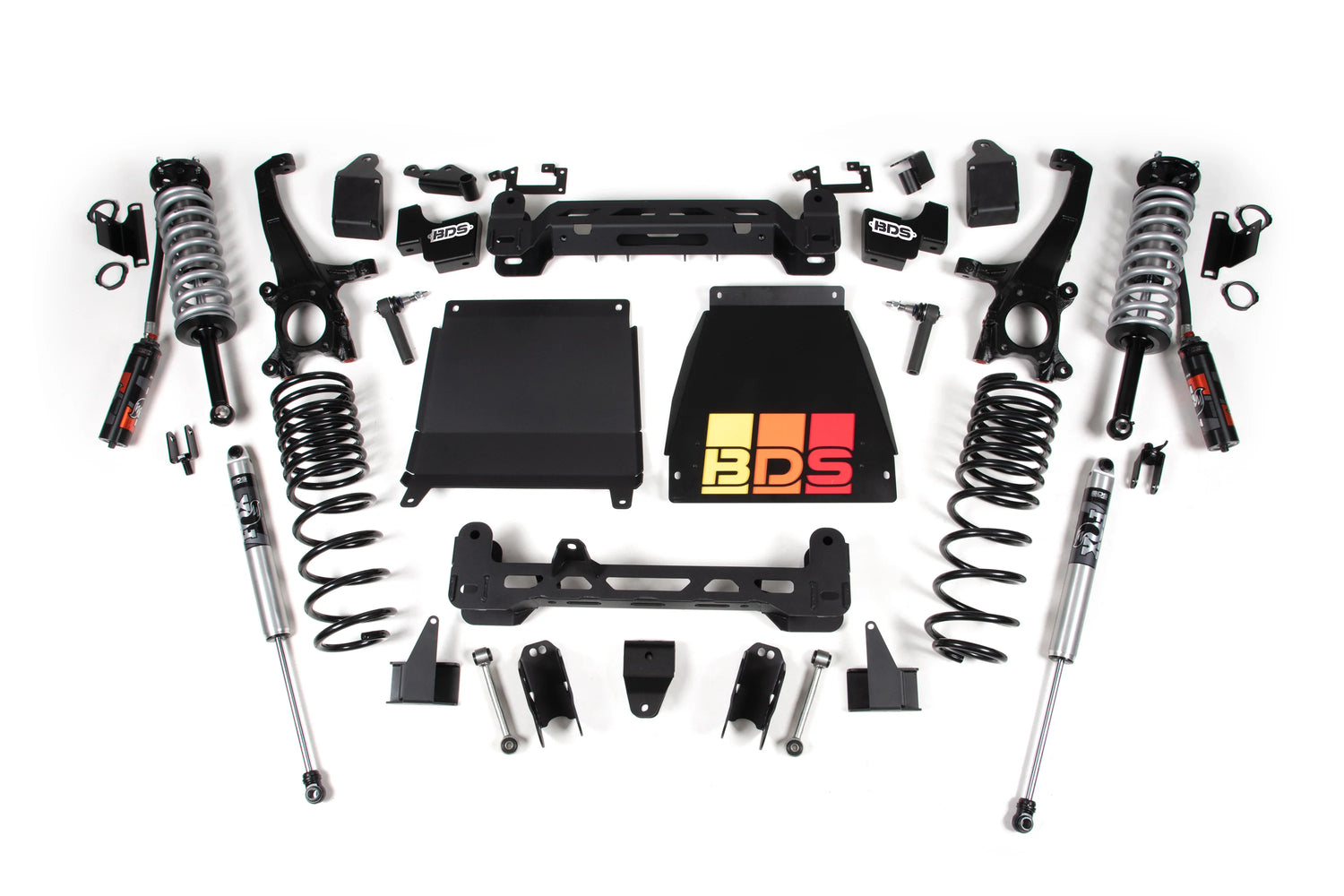

2022-2026 Tundra 4WD 5" Lift Fox 2.0 PE Coilovers (BDS839PSS)

Elevate your Tundra with this premium 5" suspension lift system featuring FOX 2.0 Performance Elite coil-overs. Built for 4WD models including hybrid and EV-gas variants this kit combines aggressive stance with refined handling dynamics. Experience enhanced ground clearance, improved articulation, and the confidence that comes with professional-grade damping technology engineered for Toyota's latest generation truck platform.

Features

• High clearance crossmember design maximizes ground clearance

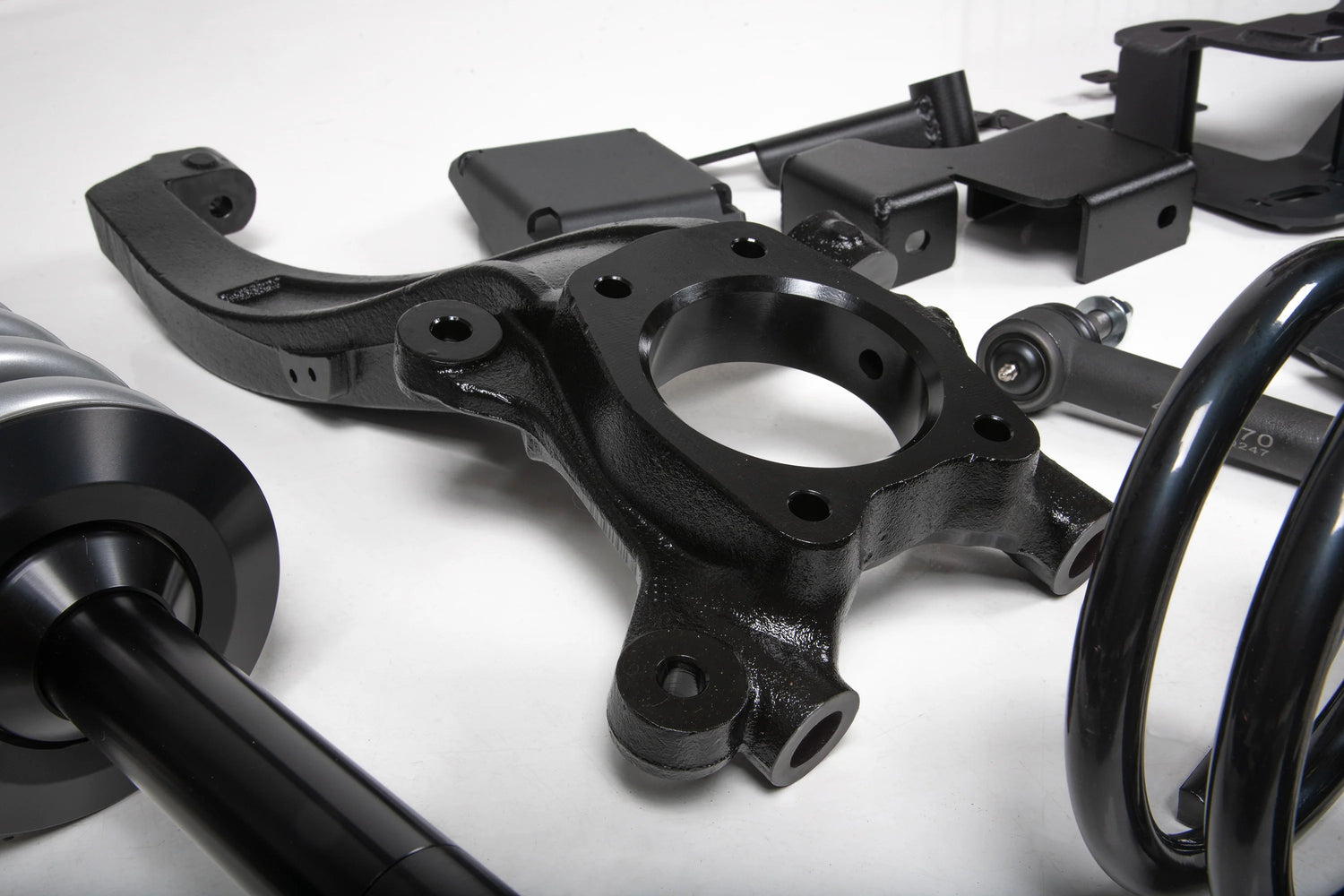

• Robust steering knuckles and tie rod ends maintain ESC system compliance
• Fullwidth mult-piece skid plate system improved offroad protection
• Progressive rate rear coil springs improve ride quality, load capacity and suspension travel
• Factory Protection Plus drivetrain warranty included

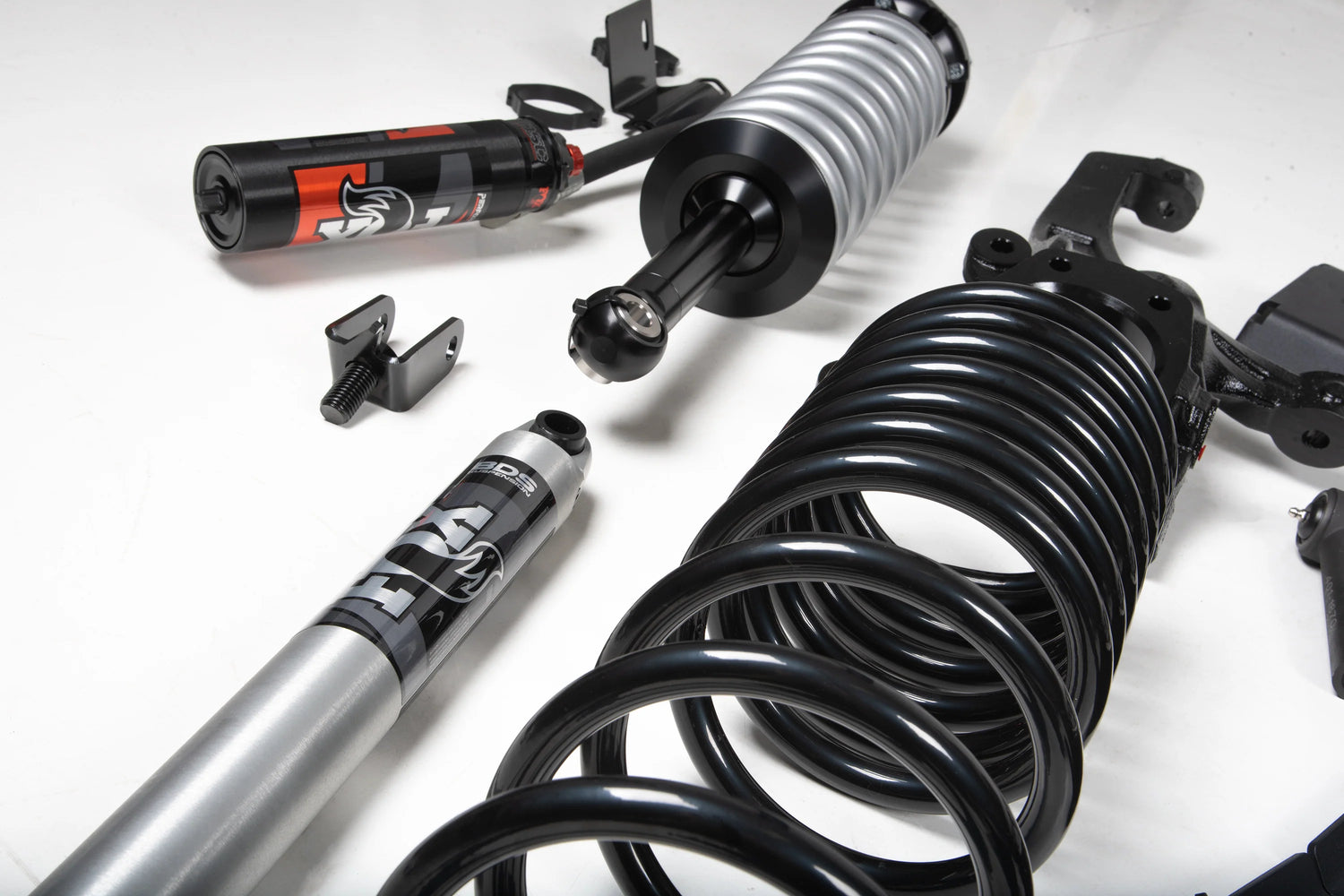

Shock Features

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Notes

• TRD Sports will achieve the same amount of lift but will have a lower stance than other models in the front
• The ADAS system in some vehicles needs to be recalibrated by a certified shop. The vehicle may warn the driver of potential collision from lower bridges, overhead signs/wires, and signs in windy conditions. Most windshield repair shops (Safelite) and dealers are capable of doing this

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 4"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 5"
• Shocks Included : Yes
• Lift Height : 4-5.5"

Tire Fitment

• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5"-6" in. Backspace
• 37 x 12.5 with 20 x 9 and 5.6 in. Backspace

Compatibility Notes

• Will not work with Air Ride models
• Will not work with TRD Pro models
• Will not work with Adaptive Variable Suspension (AVS) System equipped vehicles
