2022-2027 Tundra/Sequoia Heavy-Duty Cast Aluminum Transmission Pan Raw (728051000)

Description

Heat is what shortens transmission life. As fluid temperature climbs, viscosity drops and the lubricating film that protects the gears and bearings gets thinner. PPE's pan for the Toyota AWR10L65 10-speed is cast from A356.0-T6 aluminum and adds 3.5 quarts of fluid capacity for more thermal headroom.

Tall external cooling fins pull heat out of the fluid and stiffen the bottom of the pan against impacts. Internal baffles increase fluid contact with the aluminum and cut sloshing for consistent pickup, and together with the fins they form a cross-braced structure. A fluid level check standpipe is included, and both the drain and check plugs carry a high-temperature neodymium magnet to catch ferrous wear particles.

Features

• A356.0-T6 heat-treated cast aluminum, cast in permanent steel molds
• Adds 3.5 quarts of fluid capacity

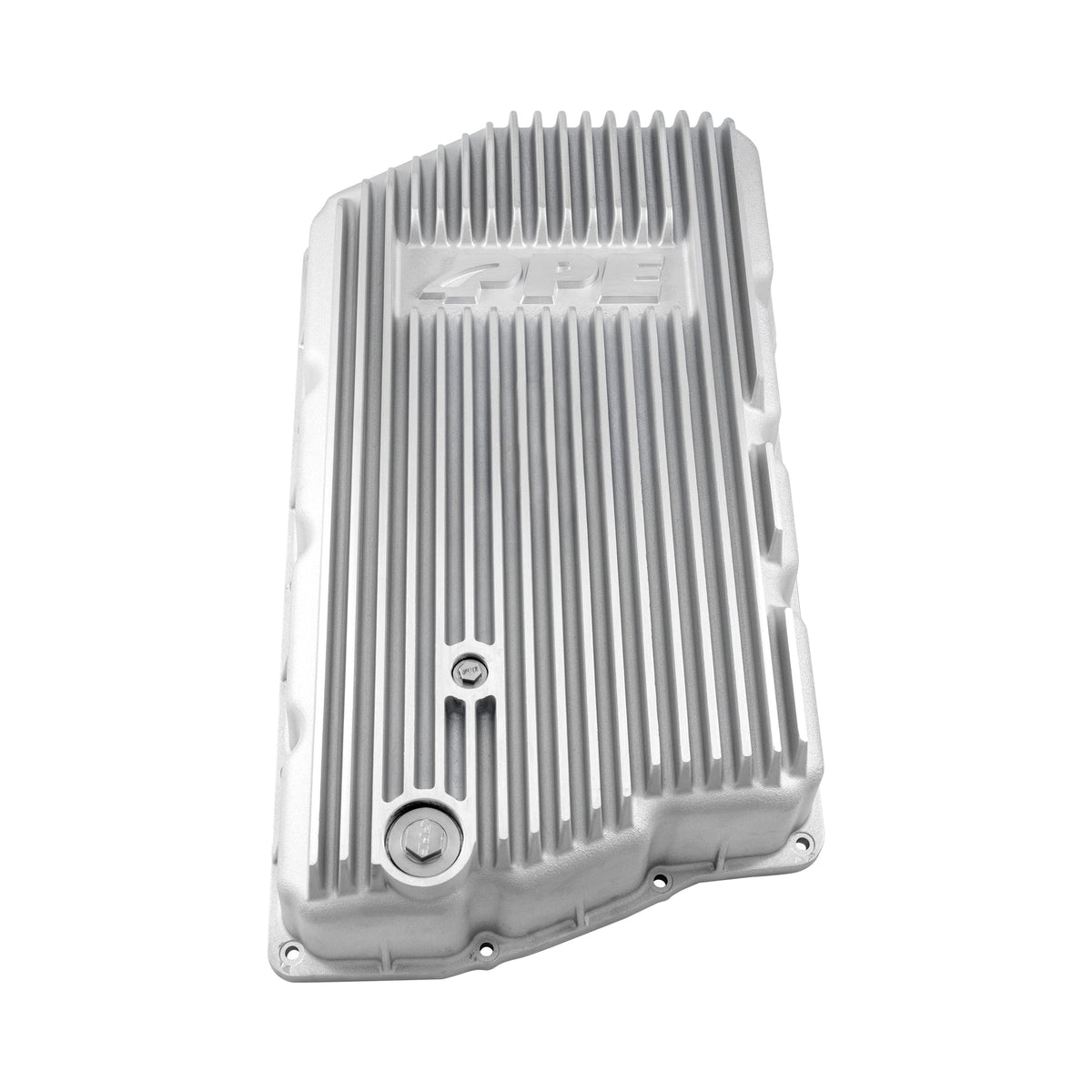

• Tall 3/4 inch external fins for heat dissipation and impact resistance

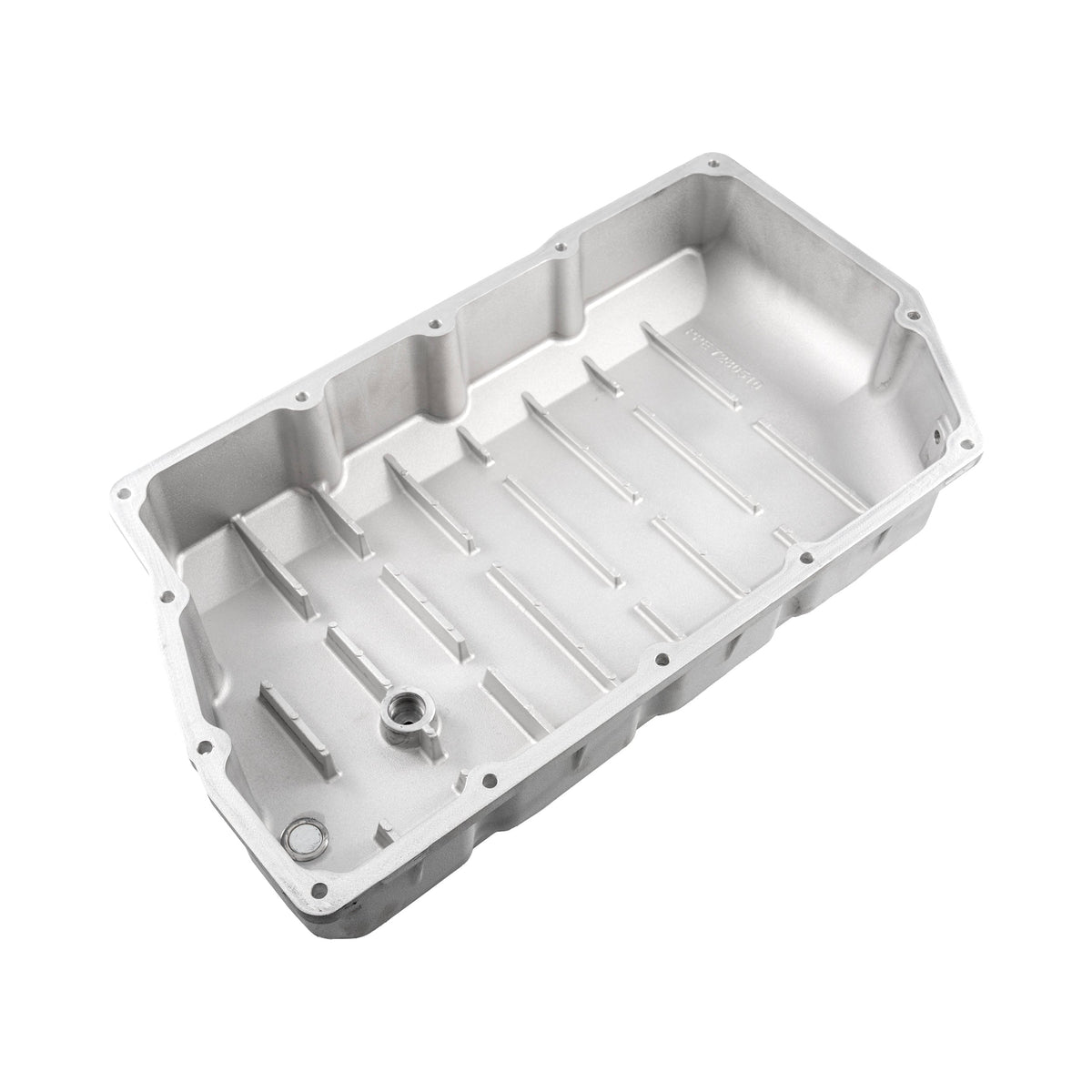

• Deep 3/4 inch internal baffles reduce sloshing and improve heat transfer
• Cast-in gussets support the transmission housing flange
• 304 stainless magnetic drain plug with Viton O-ring

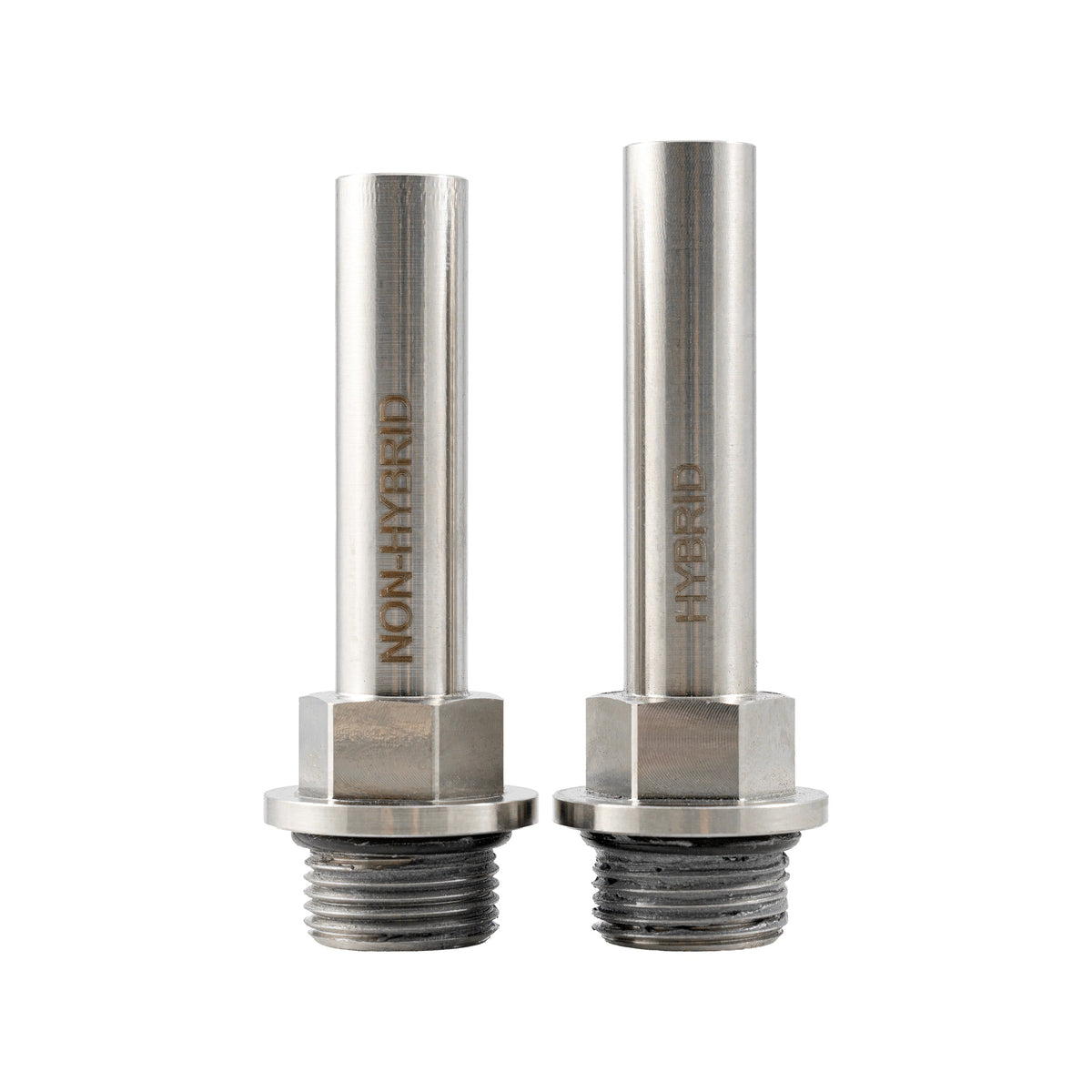

• Fluid level check standpipe included
• OEM P/N reference: Toyota 35106-0C050, 35106-0C060
