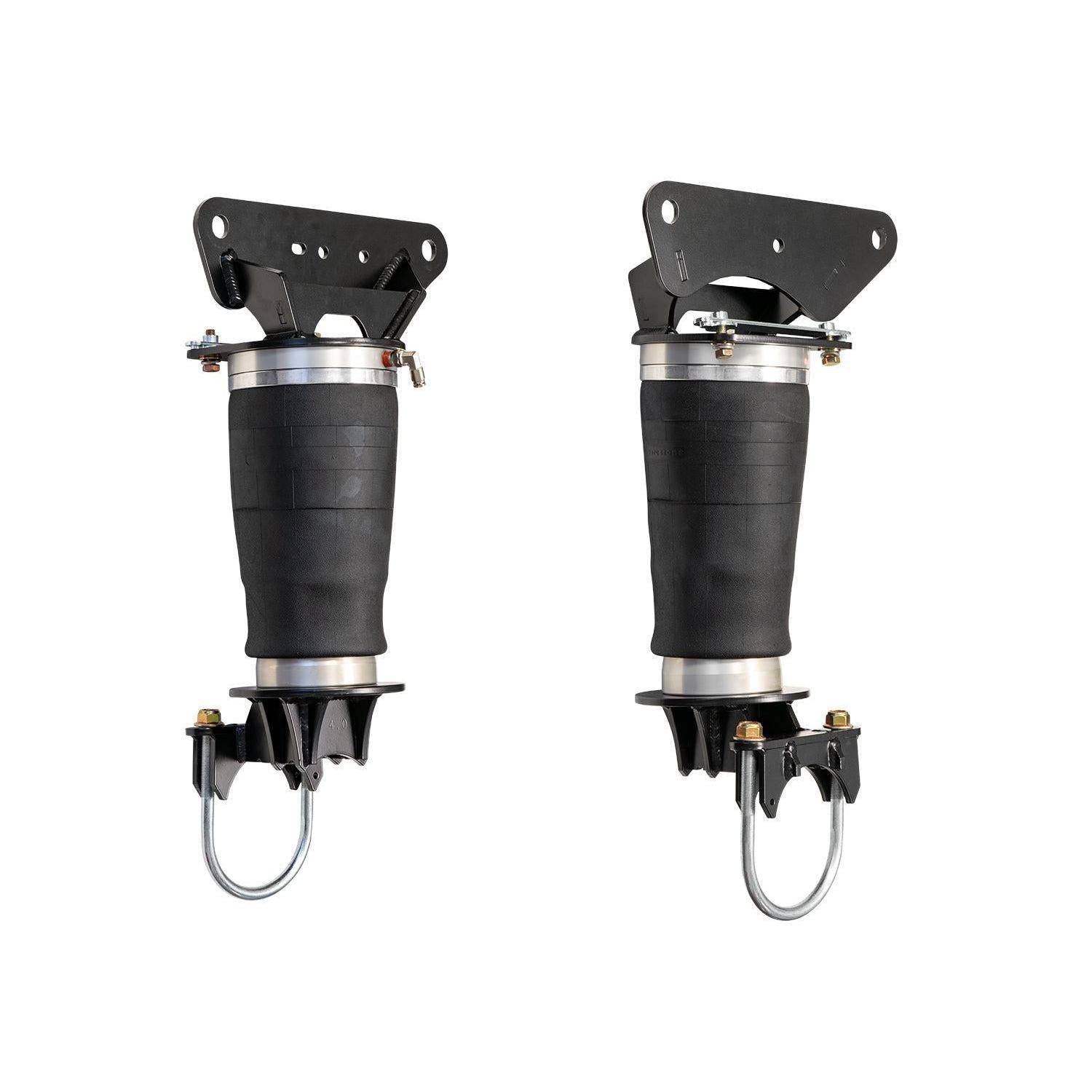

2023-2026 Superduty Tremor, High Cap Tow & F350 SRW Long Travel Airbags - 4.0" Axle Tube (CS-FLTB-23-40)

Description

These Long Travel Air Bags are perfect for those who still run the factory leaf springs and want improved ride quality without swapping springs or compromising payload capacity. Featuring a tapered piston and a folding sleeve bag to avoid any interference when deflated. Perfect for those who haul 5th wheels, campers, boats, and so on, these bags have an operating range of 0 to 100 psi (bags are rated to 2,000 lbs./ea. at 100psi).

Part Number: CS-FLTB-23-40

Features

• Supports up to 12" of rear travel
• 2,000lb capacity per bag at max 100psi
• Restores Factory payload to full progressive spring pack
• Fits trucks with 4.0" axle tube
• Can be used as a manual fill or with onboard air systems
• Mounting Hardware Included

Notes

• For single rear wheel applications and 4" axle tube trucks ONLY
• Ford Long travel airbags will ONLY work with rear lifts that level to a 5.5" Front lift. Carli recommends 2" of lift in the rear over trucks with 3" factory blocks
• These will also work with add-a-packs, but the factory bump-stop tang will need to be cut off the factory block
• This Axle is spec'd on the 2023+ F250 4×4, in Gas and Diesel configurations, with the Tremor or High Capacity tow package, and all F350 SRW
