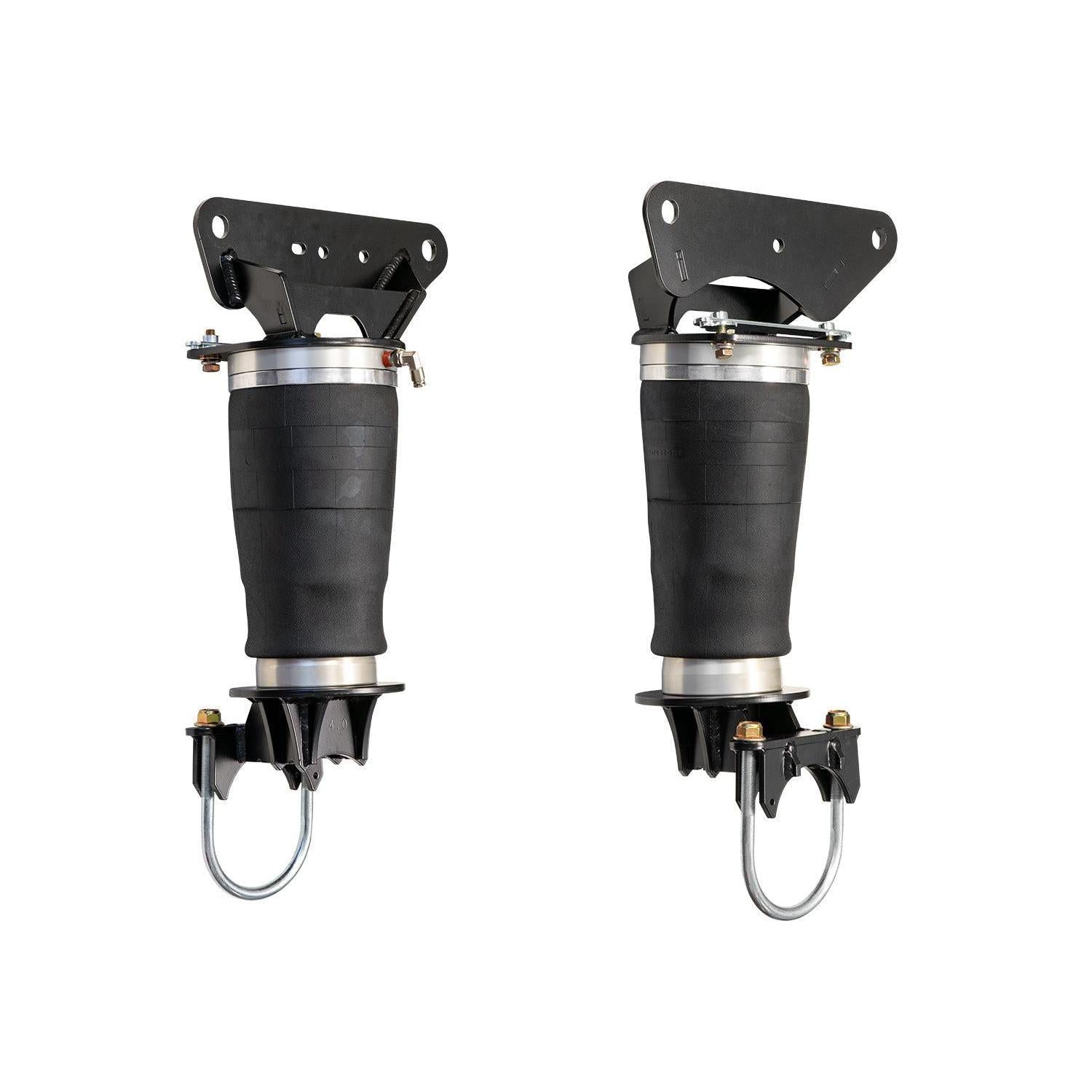

2023-2026 Superduty DRW Long Travel Airbags - 4.5" Axle Tube (CS-FLTB-23-45)

Description

These Long Travel Air Bags are perfect for those who still run the factory leaf springs and want improved ride quality without swapping springs or compromising payload capacity. Featuring a tapered piston and a folding sleeve bag to avoid any interference when deflated. Perfect for those who haul 5th wheels, campers, boats, and so on, these bags have an operating range of 0 to 100 psi (bags are rated to 2,000 lbs./ea. at 100psi).

Part Number: CS-FLTB-23-45

Features

• Supports up to 12" of rear travel
• 2,000lb capacity per bag at max 100psi
• Restores Factory payload to full progressive spring pack
• Fits trucks with 4.5" axle tube
• Can be used as a manual fill or with onboard air systems
• Mounting Hardware Included

Notes

• For dually applications with a 4.5" axle tube ONLY
• Compatible with Carli 5.5" Suspension Systems ONLY
• Ford Long travel airbags will ONLY work with rear lifts that level to a 5.5" Front lift. Carli recommends 2" of lift in the rear over trucks with 3" factory blocks
• These will work with add-a-packs as well, but the factory bump-stop tang will need to be cut off the factory block
• 4.5" Axle Tube should be confirmed before ordering. This Axle is spec'd on the 2023+ F350 DRW 4×4
