2023-2024 Super Duty Commuter 3" Leveling Kit (CS-FLVL-COM-CS-23-GAS)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$4,465.47 CAD
In stock - Ships right away

Build Your Kit

The perfect comprehensive suspension setup for your F-Series pickup, with front linear-rate coil springs that provide a tighter ride when cornering and react consistently throughout any compression range, making them more responsive and predictable. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways.

Front Sway Bars

Required

Rear Leaf Springs

Required

The Commuter System has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package). More information can be found in the description at the bottom of this page.More information is available in the long description at the bottom of this product page. Selecting "NO Rear Leaf Spring Selection" will result in an unknown ride quality and height result as all Carli Systems are optimized to either the Add-a-Pack or Progressive Leaf Springs.

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

2° Pinion Shim

Optional

*OPTIONAL BUT RECOMMENDED* - When modifying the rear leaf springs (add-a-pack or Full Spring Pack) of the 2017+ Super Duty platform, there's a small chance you'll induce a driveline vibration around 70mph when under power from the rear driveline. These pinion shims will correct the angle to 4°-5°, ideal for our lifted applications. Although these will not be "required" on every truck, we've found the 4°-5° spec to be superior in our applications and these are FAR easier to install initially than correctively

Radius Arms

Optional

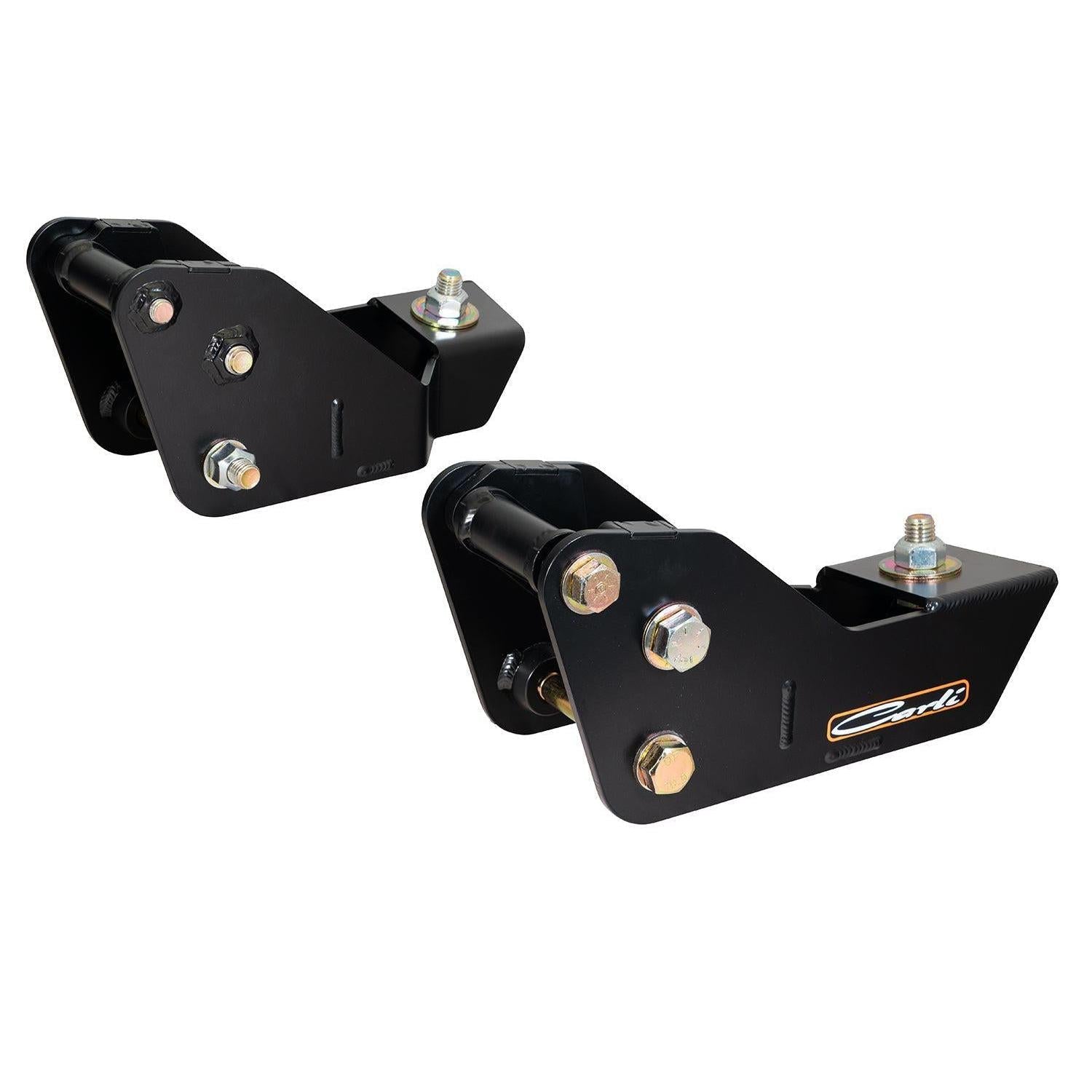

Icing on the cake, these arms have been completely redesigned for the 23+ Super Duty. They boast Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Steering Stabilizer - Low mount

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!
Part Specs
Description

The perfect comprehensive suspension setup for your F-Series pickup, with front linear-rate coil springs that provide a tighter ride when cornering and react consistently throughout any compression range, making them more responsive and predictable. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways.

Part Number: CS-FLVL-COM-CS-23-GAS

Features
  • Improved handling and stability

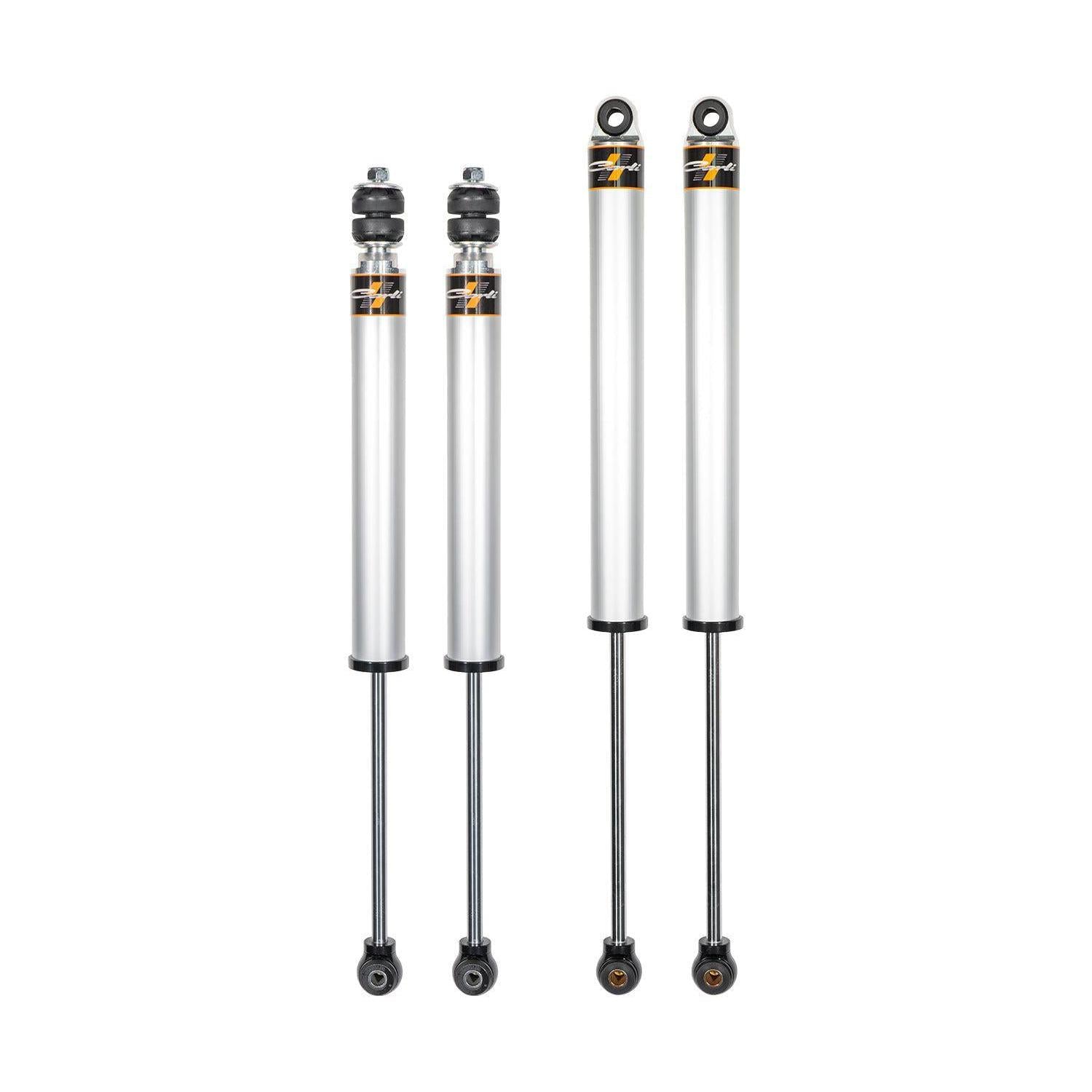

  • Carli-Tuned corrosion-resistant 2.0 IFP shocks

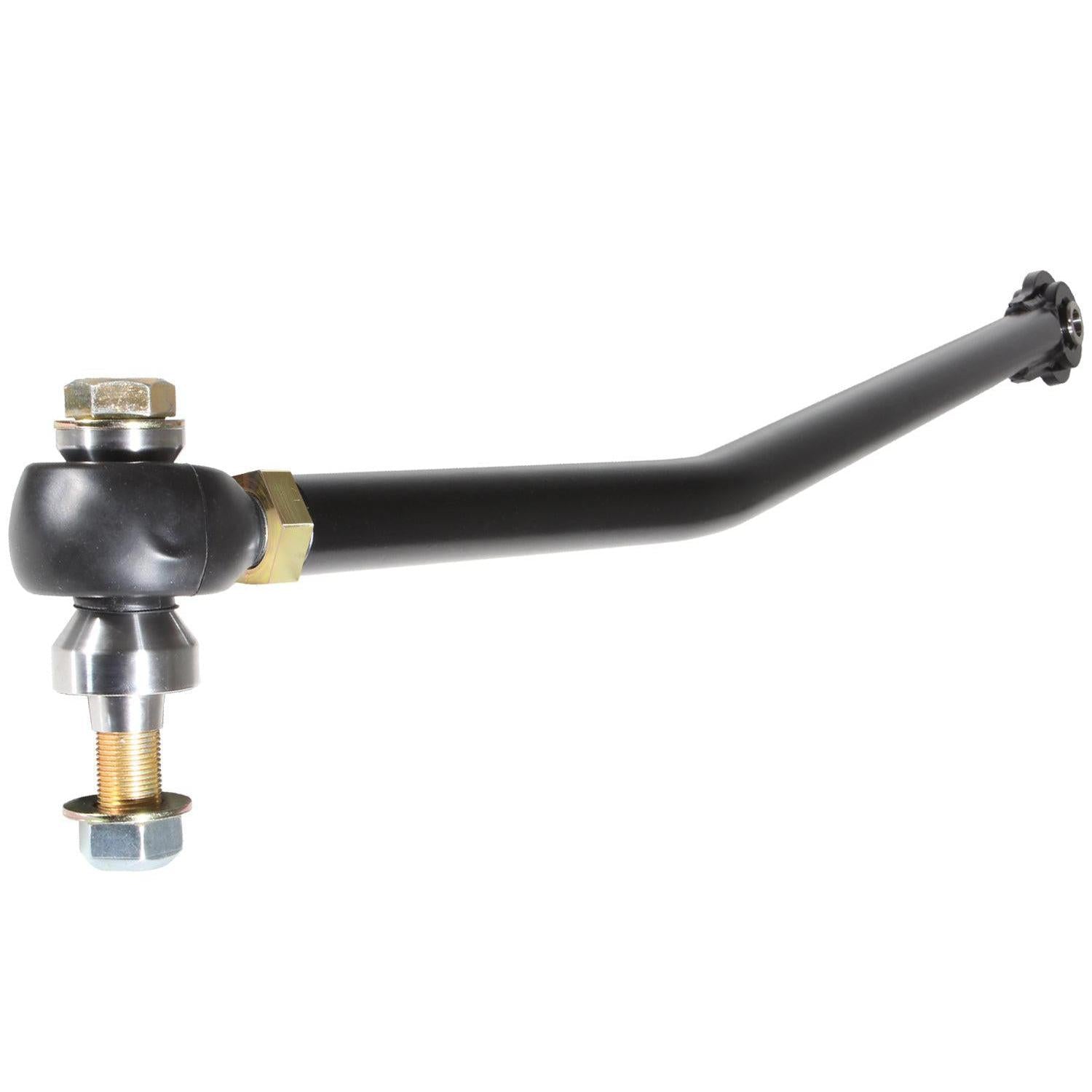

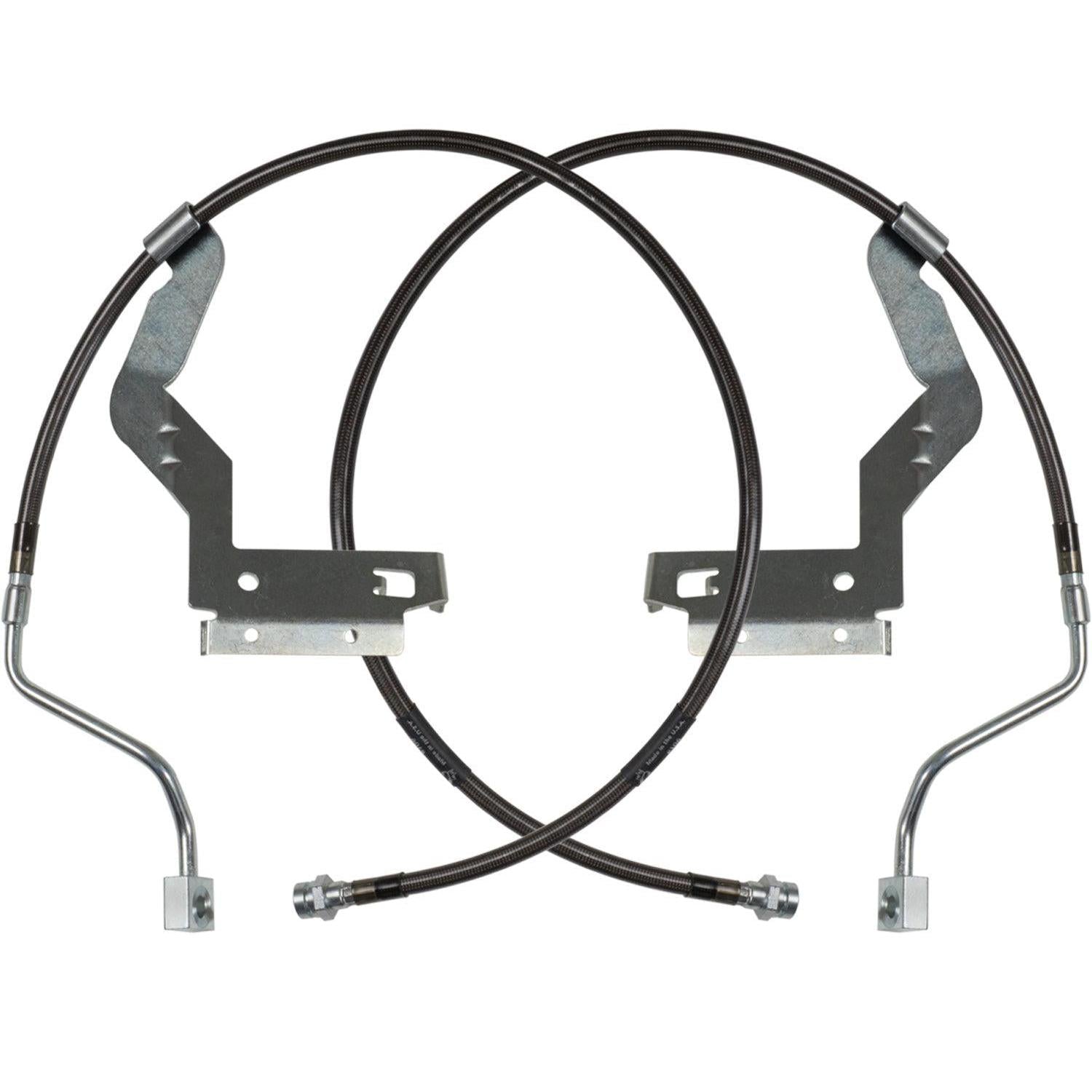

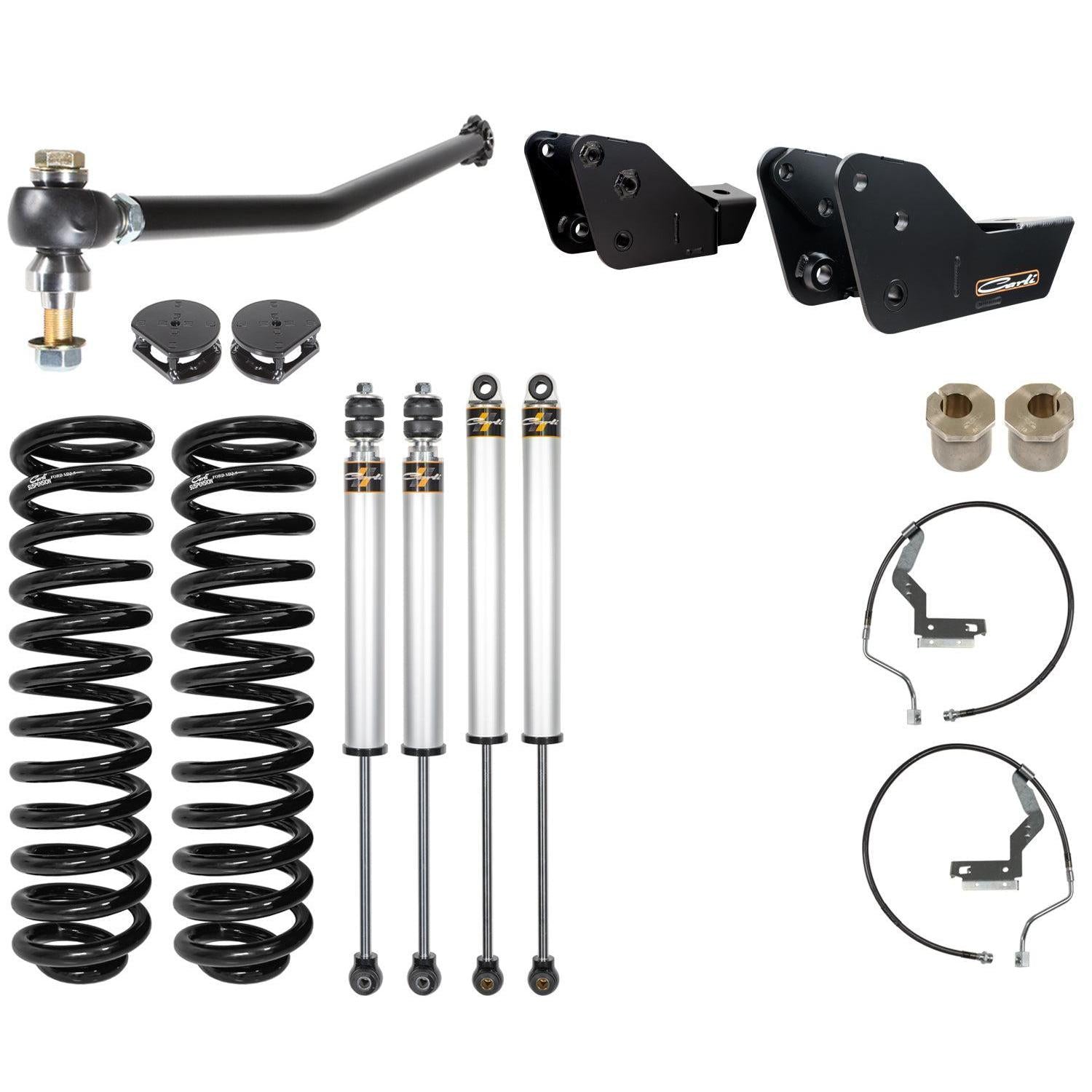

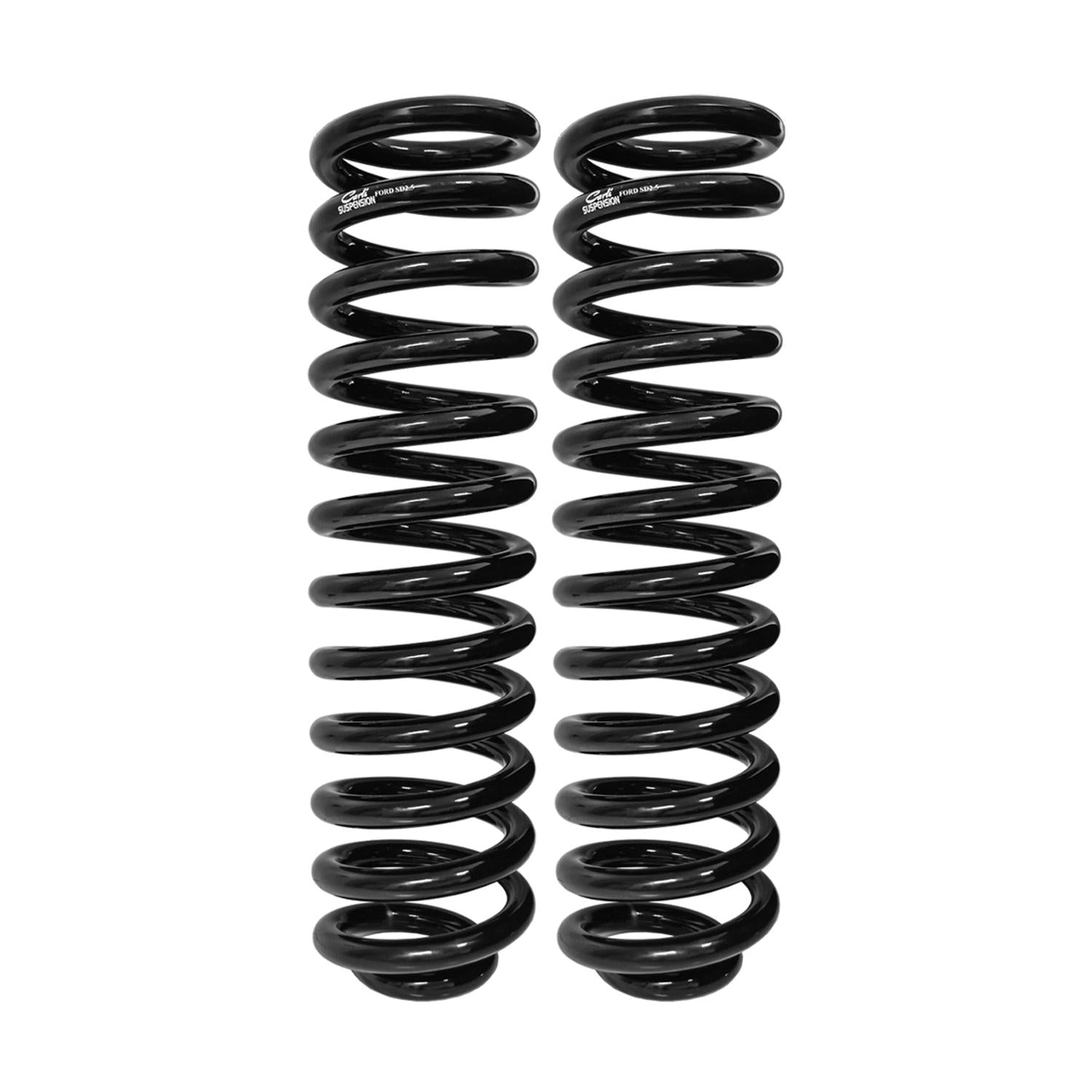

  • Linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, radius arm drop brackets, and adjustable track bar
  • Increases wheel travel to 9" front and 13" rear
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
Note
  • Will NOT fit diesel application
  • This System is not compatible with the ONBOARD SCALES/SMART HITCH. Modifying the ride height or spring rate will interfere with this system’s performance.

Fitment:

  • 3" Lift - 2023-2024 F250/350 4x4 7.3L Gas
  • 1" Lift - 2023-2024 F250/350 4x4 7.3L Gas Tremor

Vehicle Fitment

Part Specifications

  • Part No.
    CS-FLVL-COM-CS-23-GAS
  • Vendor
    Carli Suspension
  • Shipping Weight
    157.0 lb
  • Placement
    • Front
