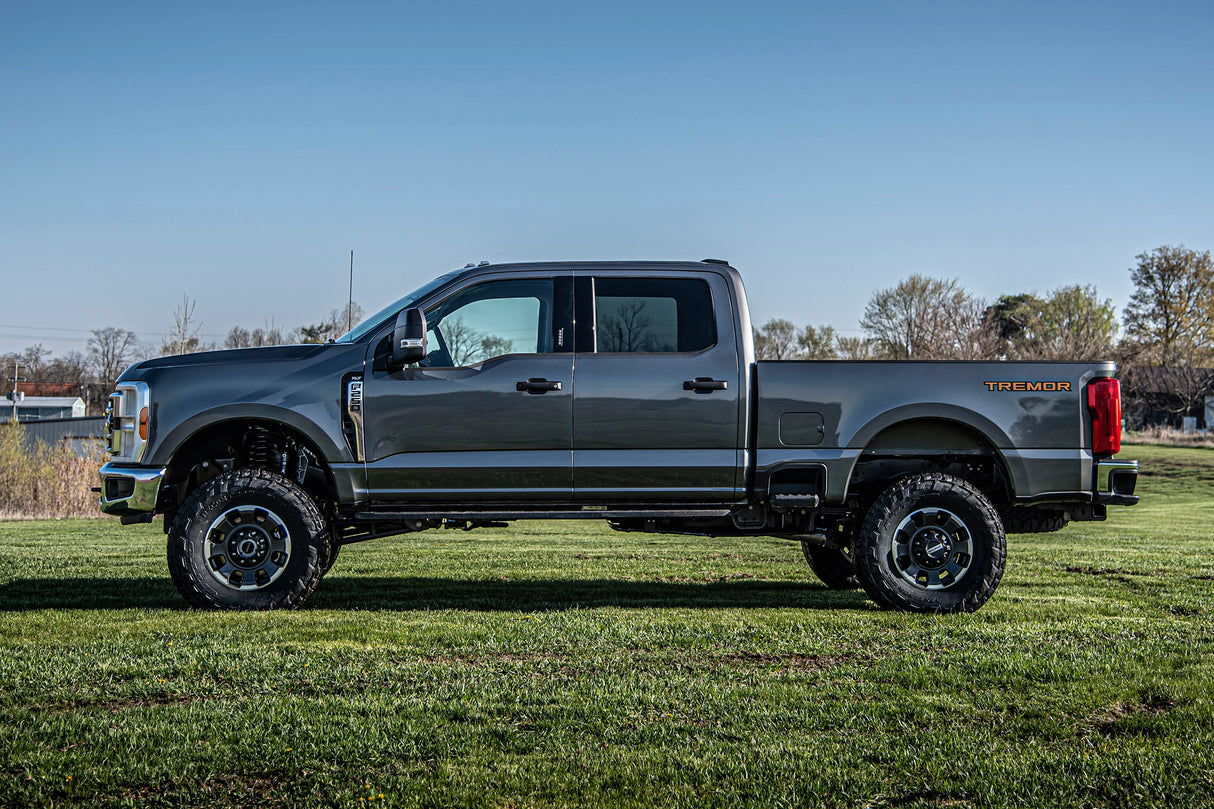

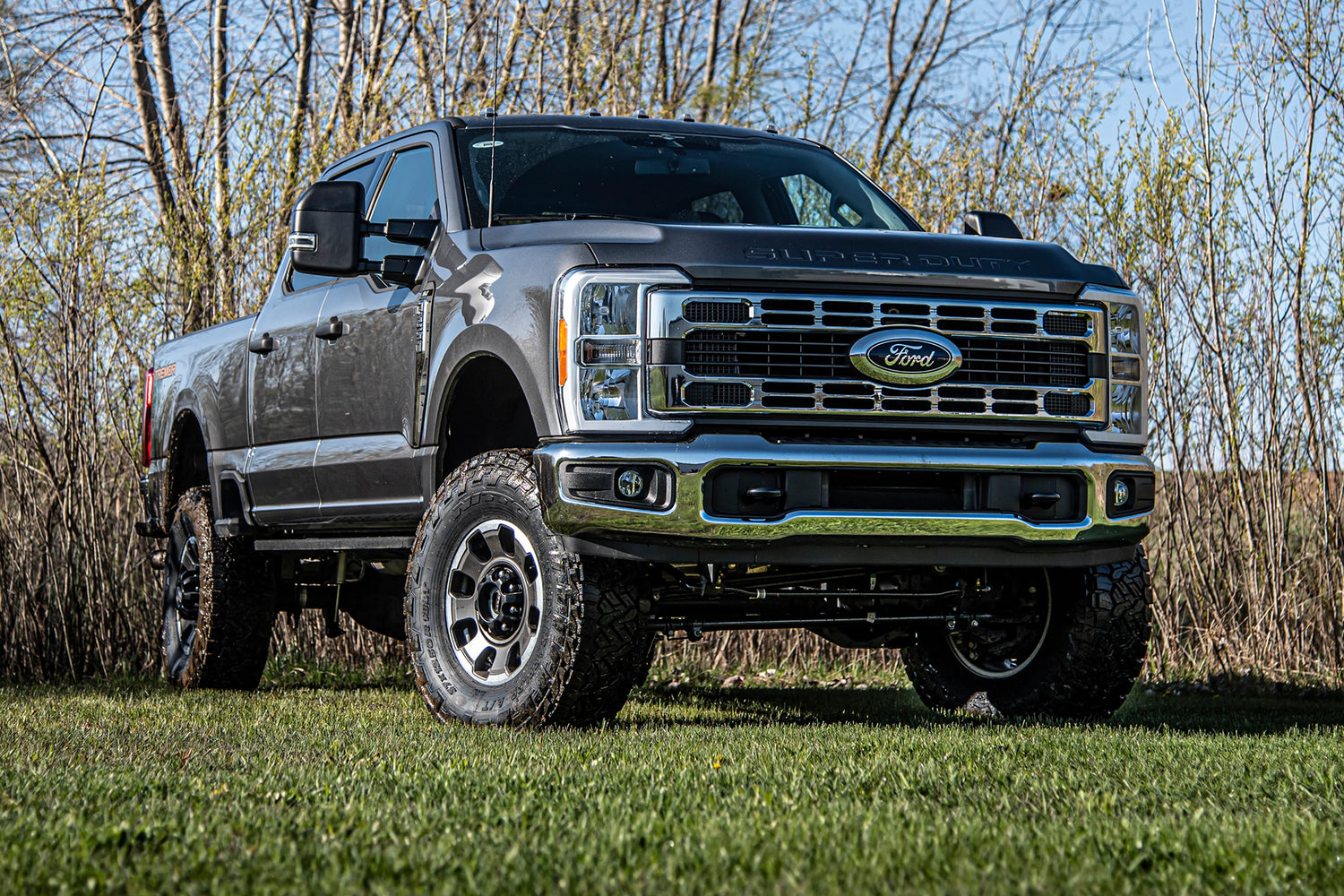

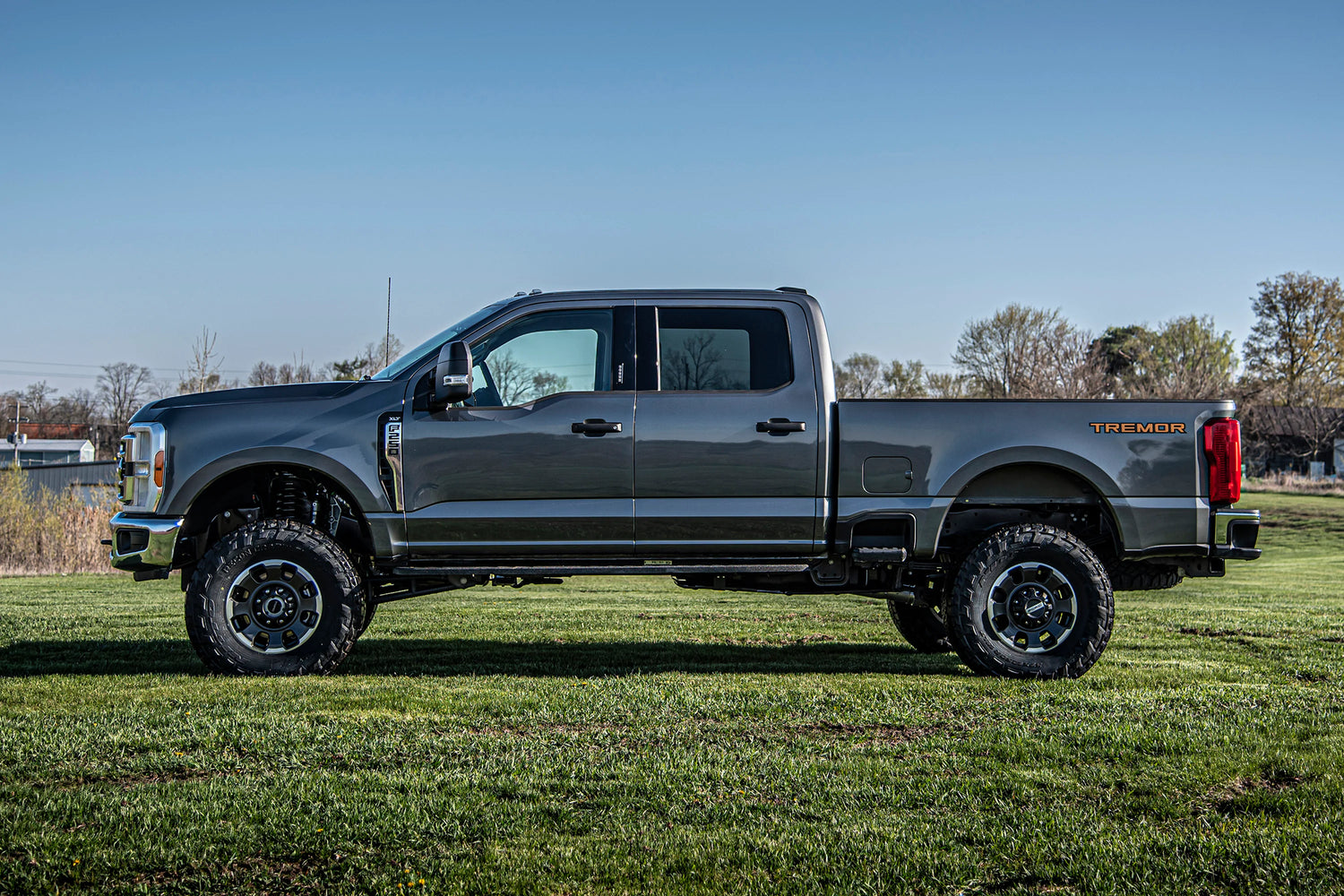

2023-2025 Superduty 5" Lift Kit with FOX 2.0 Performance Shocks (BDS2243FS)

Improve the ride on your 2023-2025 Ford Super Duty gas truck with this 5" radius arm lift kit from BDS, with clearance for up to 37" tires. Up front it includes gas-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms with caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision tuned FOX 2.0 Performance shocks. The rear uses a high-strength fabricated lift block, longer u-bolts, brake line brackets, and a matching set of NX2 Nitro or FOX Performance shocks.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 2-inch impact extruded aluminum body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• This kit is not compatible with trucks equipped with radius arm mounted ride height sensors
• Ford recommends replacement of the pitman arm nut each time it has been removed
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402
• Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar; use recommended specs in the wheel and tire fitment section
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups
• Installation requires a torque wrench capable of 406 ft-lbs
• Trucks without top mounted overload springs will require (4) UBT4028

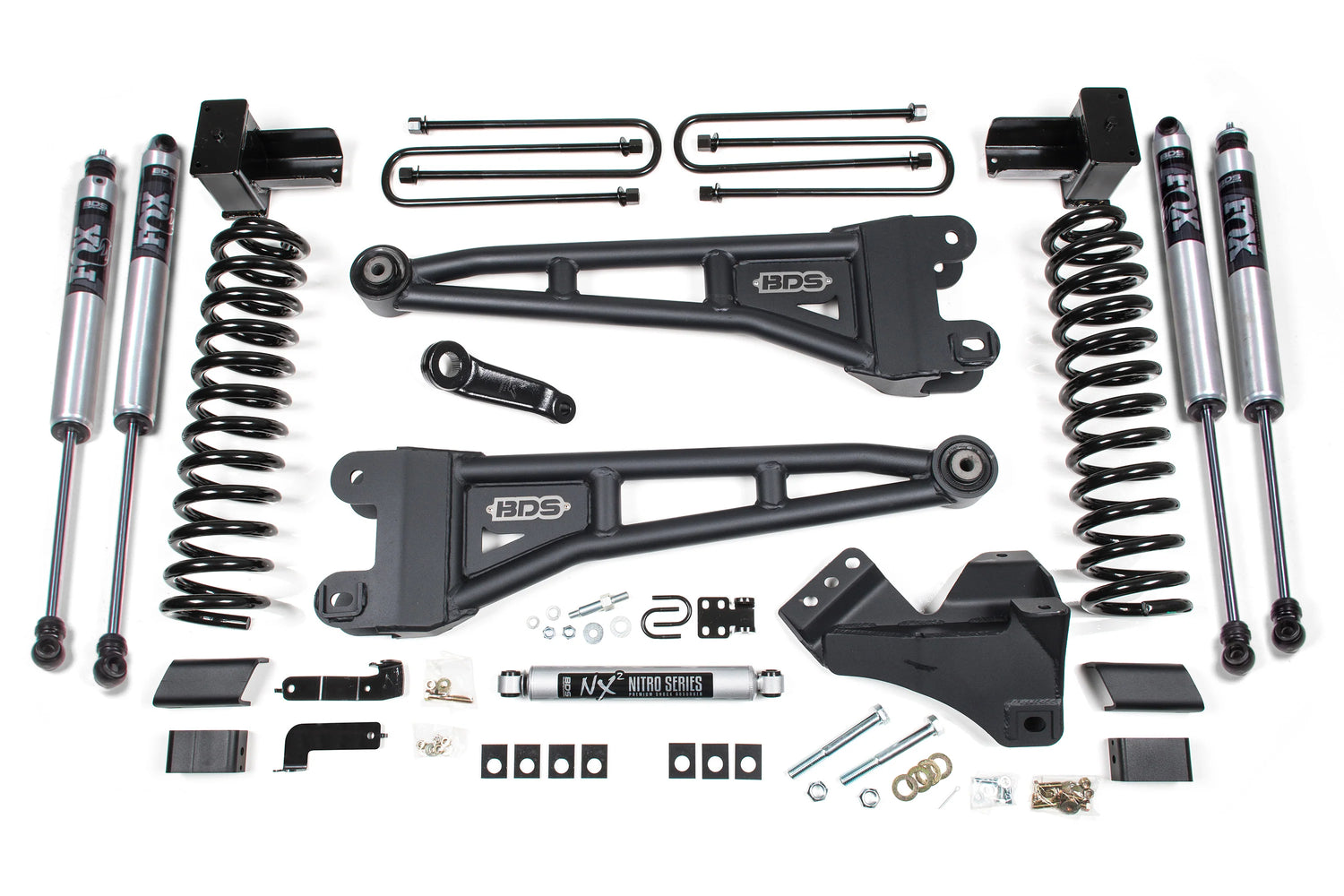

Includes

• BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit (UPC 658848613458)
• BDS013517, 2017-2024 F250 5 inch Rear Block Kit - 2 Leaf Main (W/O Overload Springs) (UPC 658848613601)
• BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit (UPC 658848616534)
• BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair (UPC 711745612709)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
