2023-2026 Superduty 2.5" Radius Arm Lift Kit FOX 2.5 PES (BDS1307FPE)

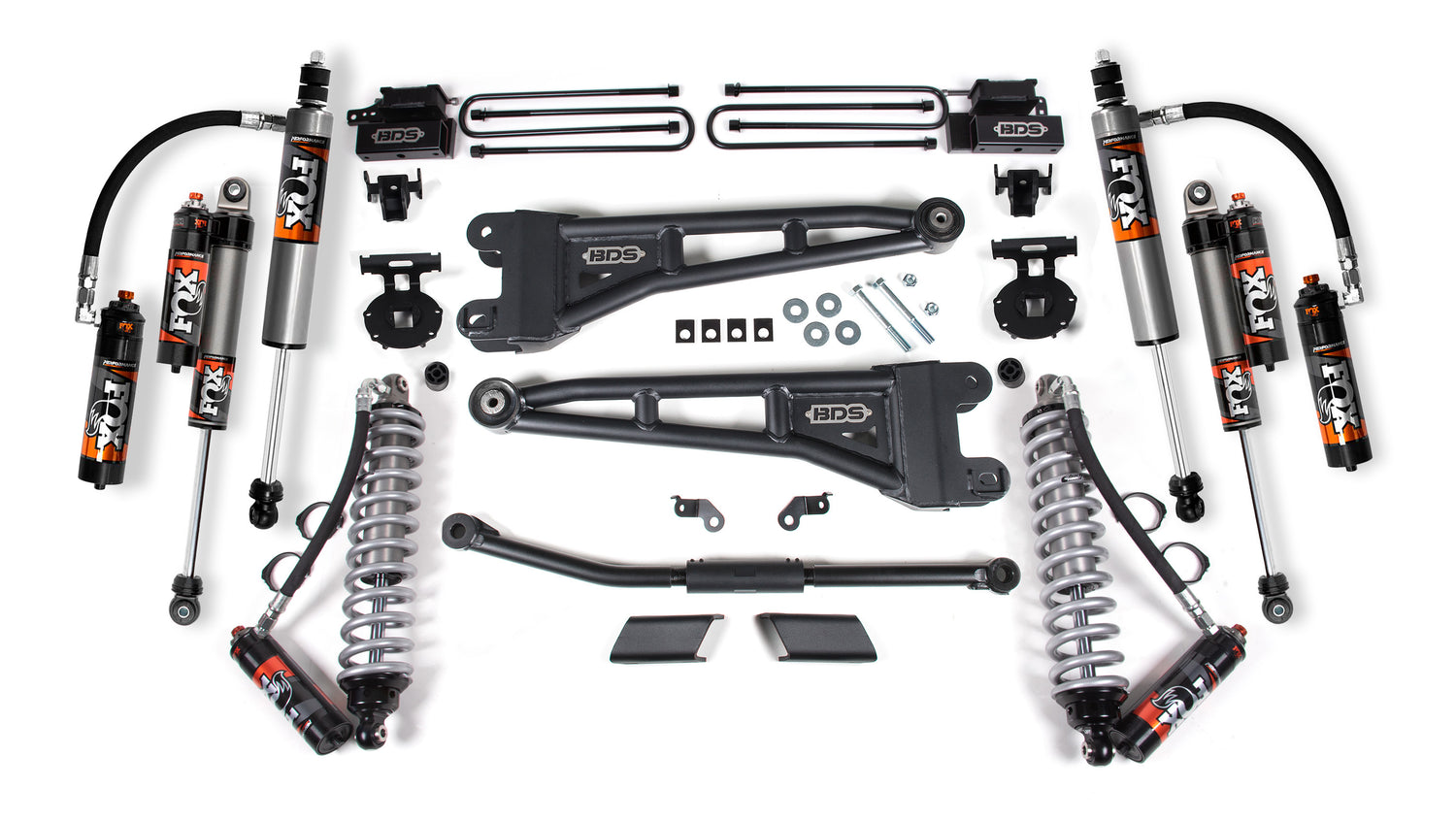

BDS Suspension's F-450 2.5" Radius Arm Lift with FOX 2.5 PE delivers professional-grade suspension enhancement for your Ford F450 Super Duty diesel. This complete system pairs FOX Performance Elite coil-over shocks with reinforced radius arms to maximize articulation and stability on challenging terrain. The kit accommodates up to 35" tires while maintaining composed handling across varied surfaces. Engineered for serious off-road demands, it combines elevated ground clearance with the precision damping control that separates quality suspension from basic lifts. All mounting hardware included for straightforward installation.

Features

• FOX 2.5 Coilover mounts in factory coil bucket location
• Adds additional secondary FOX 2.5 Performanc Elite shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.


Notes

• Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
• Installation requires a torque wrench capable of 405 ft-lbs.

• Specialty Tools Needed : 30mm Socket, Basic Hand Tools, Torque Wrench, Jack / Jack Stands, Pitman Arm Puller

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 2.5"
• Rear Lift Method : Block
• Rear Lift Height : 1"
• Shocks Included : Yes
• Lift Height : 2-3.5"

Tire Fitment

• Max Tire Size: 35x12.50
• Front Wheel: 20x8.25, 8.76" BS
• Rear Outer: 20x8.25, -3.33" BS
• Rear Inner: 20x8.25, 9.11" BS
