2023-2024 Superduty 2.5" Lift Kit with NX2 Nitro Shocks (BDS1306H)

Level out your 2023-2024 Ford Super Duty diesel with this 2.5" radius arm lift kit from BDS, with clearance for up to 35" tires. Up front it includes diesel-specific Pro-Ride coil springs, heavy duty tubular replacement radius arms with caster adjustment, a high-strength 1-3/8" solid steel adjustable track bar to recenter the front axle, sway bar relocation, brake line brackets, and precision tuned NX2 Nitro shocks. The rear uses a high-strength fabricated lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 2.5 inch
• Rear Lift Height: 1 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.50

Notes

• Diesel vehicles with radius arm mounted ride height sensors will require BDS123303
• This kit does not work with gas models equipped with ride height sensors
• Designed for diesel models but can be installed on gas models (will achieve an additional 1/2" front ride height)
• Larger tires on stock wheels are not recommended due to brake line clearance required; use recommended specifications in the tire and wheel fitment section
• Installation requires a torque wrench capable of 405 ft-lbs

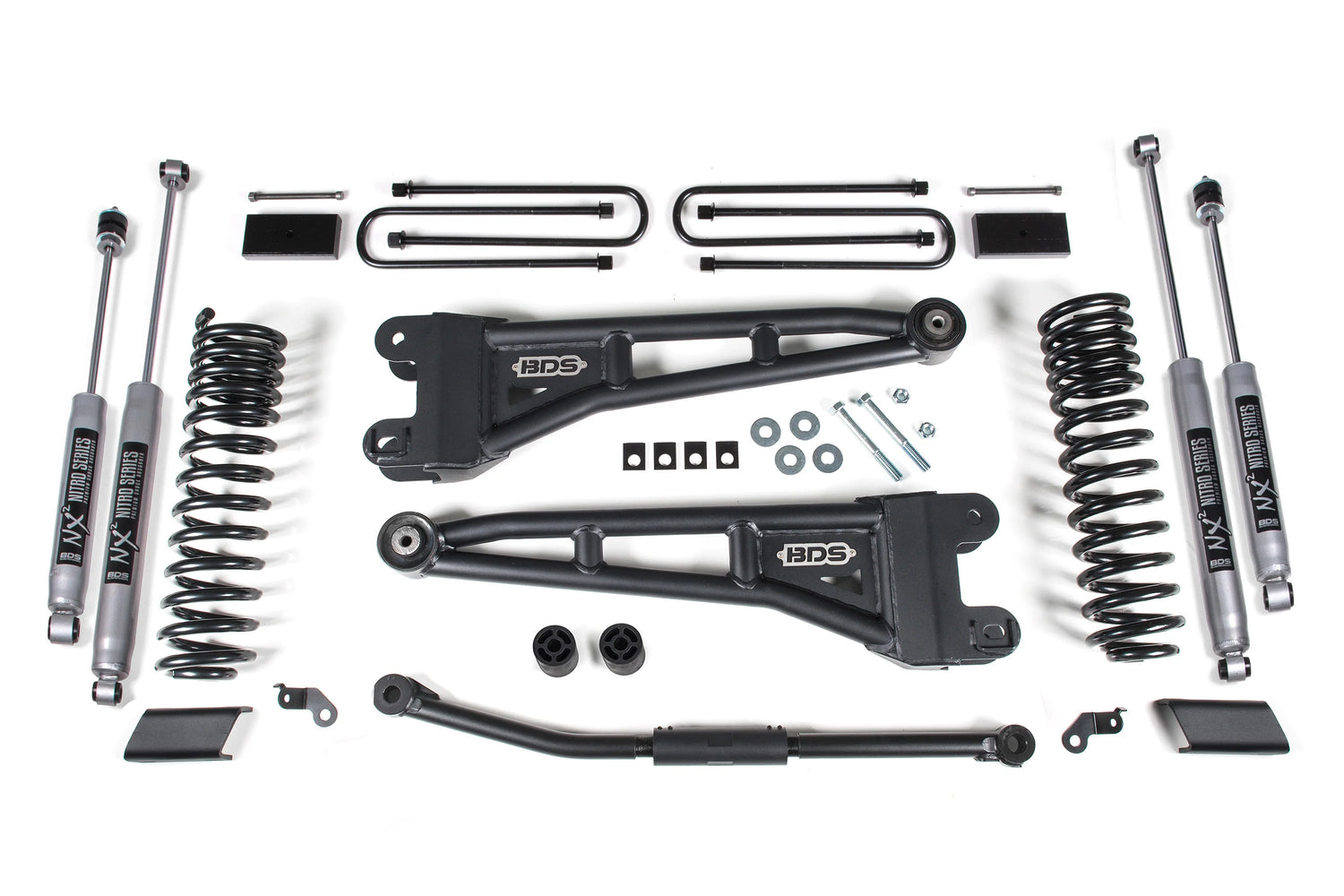

Includes

• BDS013207, 2020-2022 Ford F-450 4wd 2 inch Rear Block Kit (UPC 658848613137)
• BDS013263, 2020-2022 Ford F-450 Super Duty 4wd 2.5 inch Front Box Kit (UPC 658848613250)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair (UPC 711745612709)
• BDS85717, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 (UPC 711745609556)
• BDS85720, Shock- 24.00 x 14.50 x 2-3/8 - S50/EB2 (UPC 711745609587)
