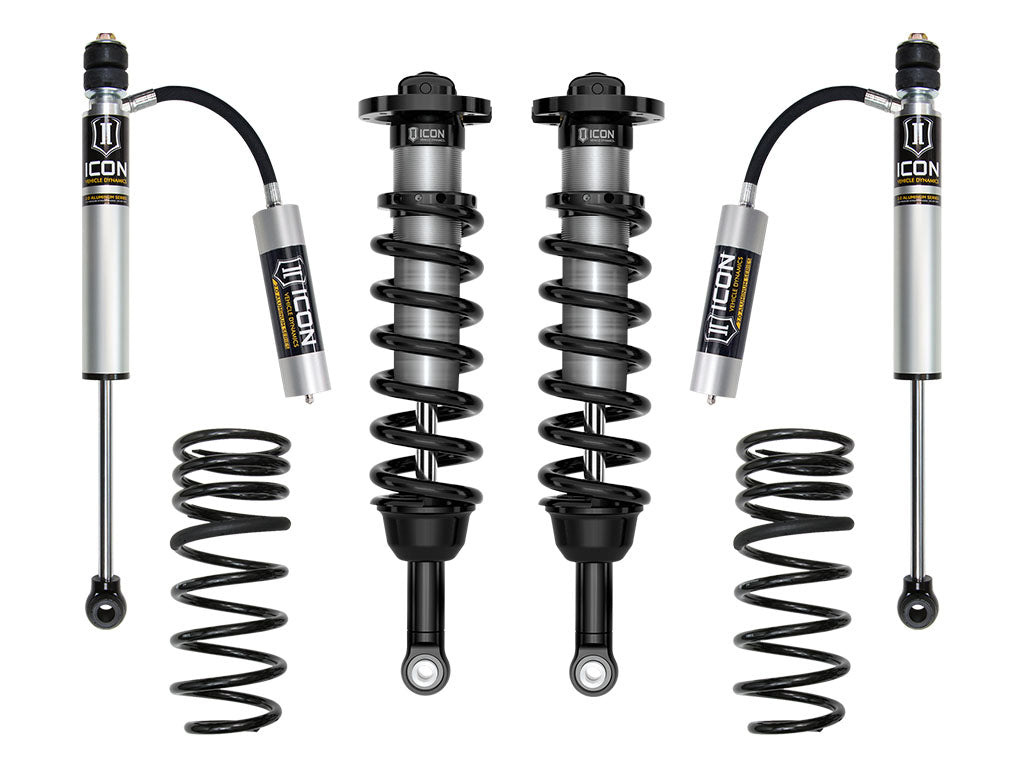

2023-2025 Sequoia 2.5 Front and Rear Lift Kit (ICOK53392)

Level up your 2023-2025 Sequoia with this complete ICON suspension system. 1-2.5" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Vehicle specific design for 2023-2025 Toyota Sequoia TRD Pro
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 1-2.5" of front lift over stock
• Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
• Allows for increased wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• ICON Alloys - 18x9" w/ 6" Backspace / 25mm Offset
• Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)

Important Notes

• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• For Sequoia TRD Pro ICON diff drop (part# 55156) is recommended but not required. If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.
• Designed for use with stock billet TRD front upper control arms

Manufacturer Description

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2023-2025 Toyota Sequoia TRD Pro is specifically designed to retain the stock billet aluminum front upper control arms found on Sequoia TRD Pro while providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features 2.5 Series coilover shocks for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear. This Stage 2 system features the 2023-2025 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers with a vehicle specific shock length to allow compatibility with the stock front upper control arms found on the Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5" of front lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible with the OE front upper control arms along with superior ride quality and suspension performance both on- and off-road. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 2" of rear lift over stock on a Sequoia TRD Pro, allowing for level a stance front to rear. Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
