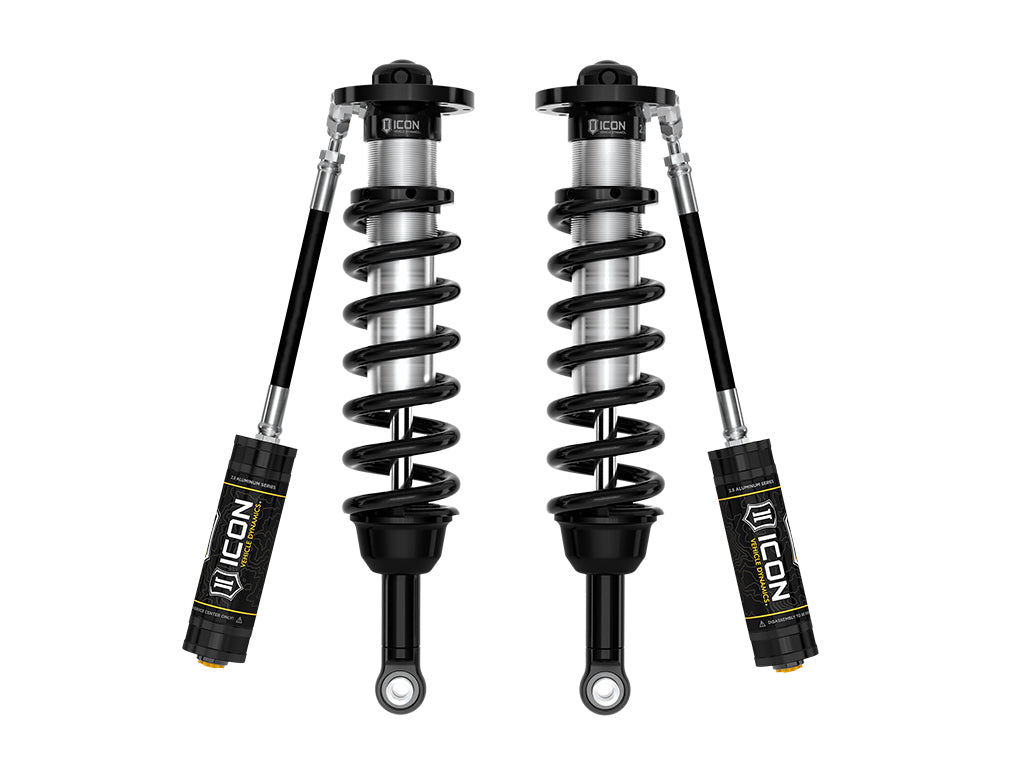

2023-2025 Sequoia 2.5 RR Front Coilover Kit (ICO58772)

Drop in serious suspension performance on your 2023-2025 Sequoia with ICON 2.5 Series coilovers. Remote reservoirs keep temps down and damping consistent when you push hard. Adjustable from 1-2.5" of lift over stock.

Features

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
• Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5 with 5.75" Backspace / 25mm Offset
• ICON Alloys - 18x9 with 6.00" Backspace / 25mm Offset
• Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)

Important Notes

• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• For Sequoia TRD Pro ICON Diff Drop (part# 55156) is recommended but not required. If installing ICON Diff Drop, ICON Skid Plate Spacer Kit (part# 55164) is also required.
• Designed for use with stock billet TRD front upper control arms

Manufacturer Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2023-2025 Toyota Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5" of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.
