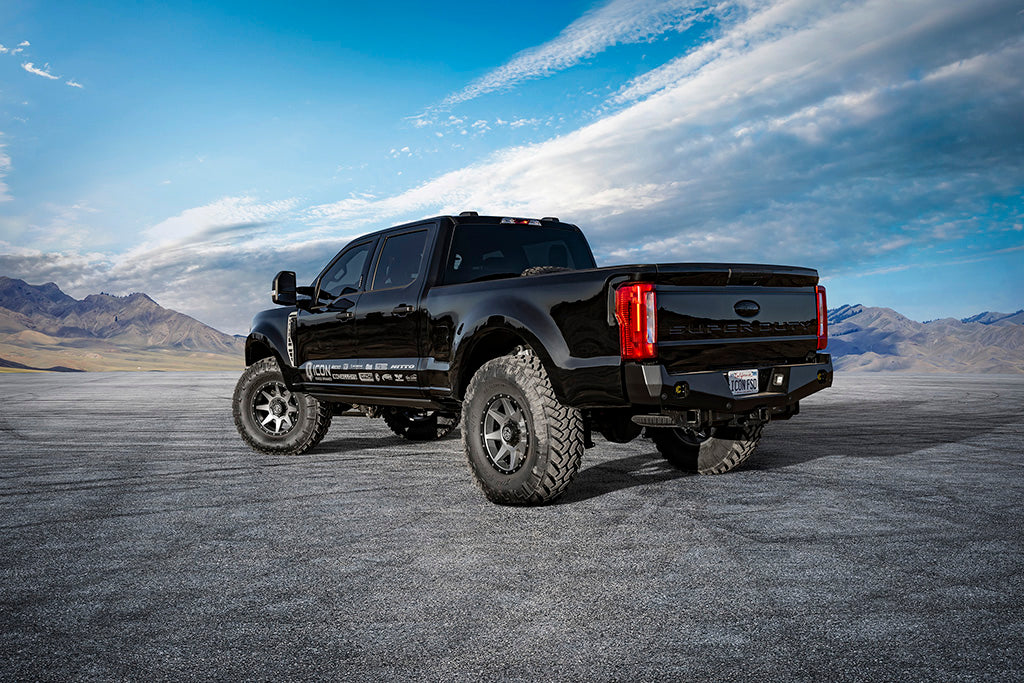

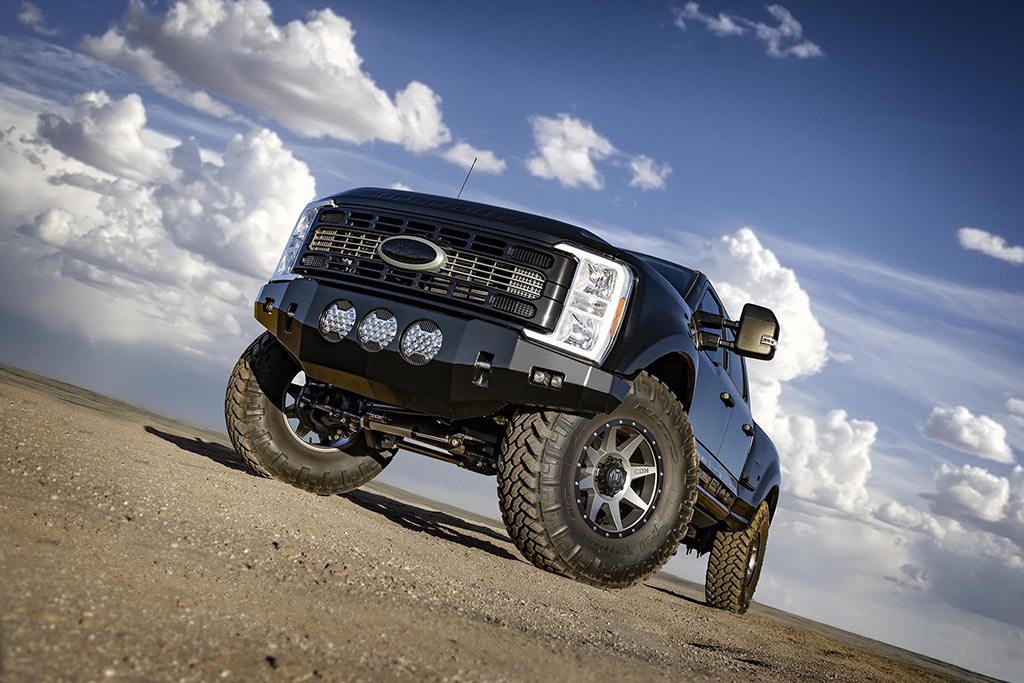

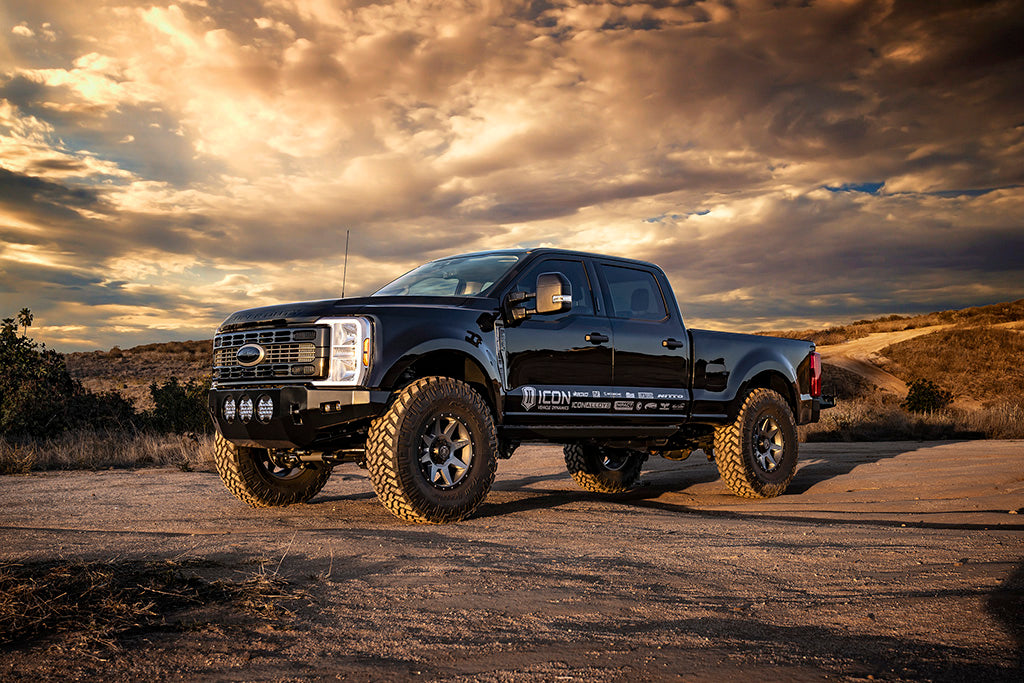

2023-2025 Superduty Front and Rear Lift Kit (ICOK64548L)

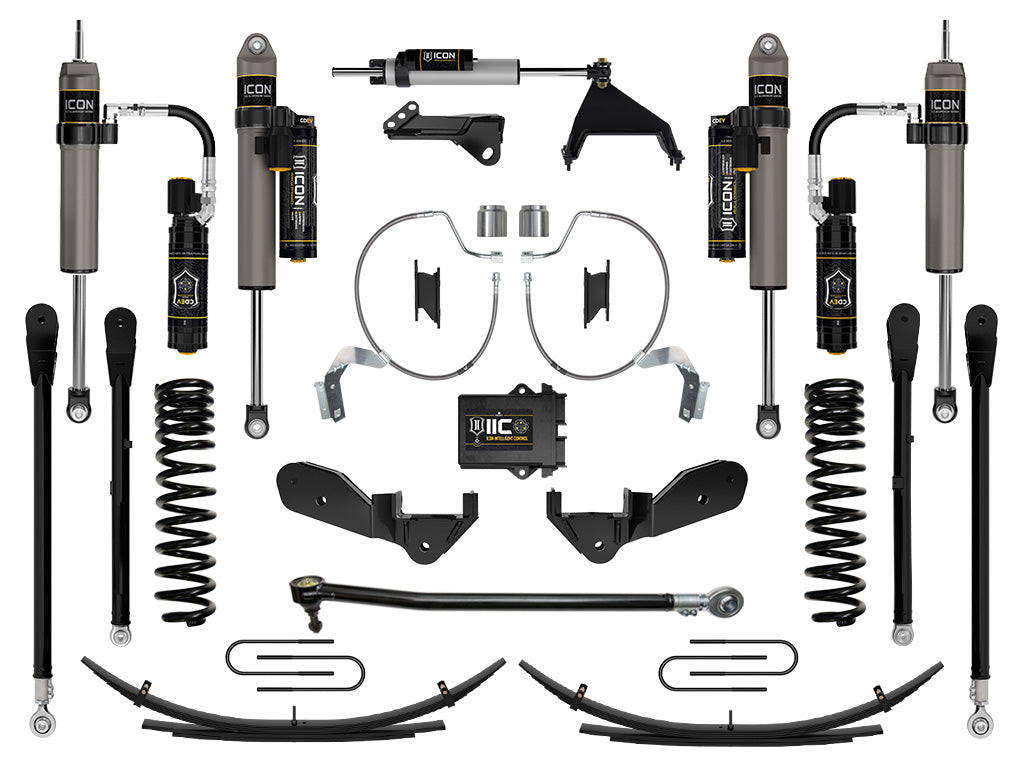

Level up your 2023-2025 Superduty with this complete ICON suspension system. 4.5" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Fits 2023-2025 F-250 / F-350 4WD diesel applications
• ICON engineered dual rate coil springs deliver 4.5" of front lift with exceptional vehicle control over varying terrain
• ICON 2.5 Aluminum Series remote reservoir shocks feature vehicle specific tune for superior performance and ride quality
• Remote reservoirs maintain cooler operating temperatures and consistent performance during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Approximately 50% increased front wheel travel over stock
• ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
• ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
• Stainless steel braided front brake lines

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• Only fits 4WD models
• Will not fit F-350/F-450 Cab & Chassis models
• Springs are rated for diesel engines only
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Lift heights based on 4WD crew cab diesel
• Fits single rear wheel models only
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• If equipped with Dynamic Bending Headlamps and/or Onboard Scales part # 611081 is also required
• An iOS operated device is required to run ICON Intelligent Control App
• Reduction in rear spring rate may reduce accuracy of Onboard Scales, if equipped
• Trucks equipped with Tremor package with have front lift height of 3.5" over stock

Manufacturer Description

This ICON Vehicle Dynamics 4.5" suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 8 system is perfect for on-road and towing use, as well as job site duty washboard gravel roads, and more aggressive off-road use. ICON's 4.5" Stage 8 System is comprised of 4.5" lift coil springs optimized for trucks equipped with diesel engines with a dual rate design that allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up" of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics. ICON’s Centerline steering stabilizer kit features a 2.5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series remote reservoir CDEV front and rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines. This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.
