2023-2026 Sprinter 2500/3500XD AWD Rocker Guards (4106)

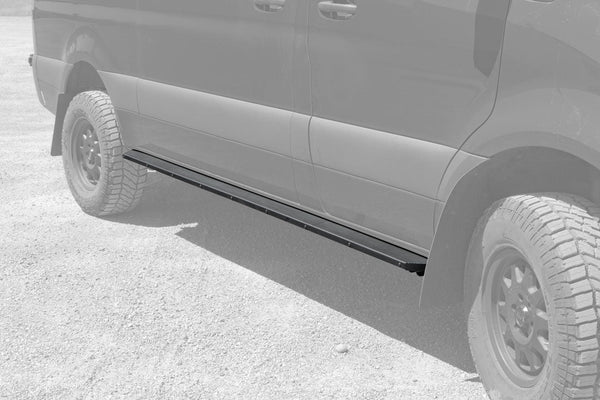

More than just a step, the Van Compass Rocker Guards add functional protection, chassis rigidity, and easy access to your 144" wheelbase AWD Sprinter. Signature stealth styling creates an attractive 4" wide step, while integrated Hi-Lift jack slots make trail recovery and tire changes quick and safe. Robust frame mounts tie directly into the chassis in three locations to boost torsional rigidity.

Features

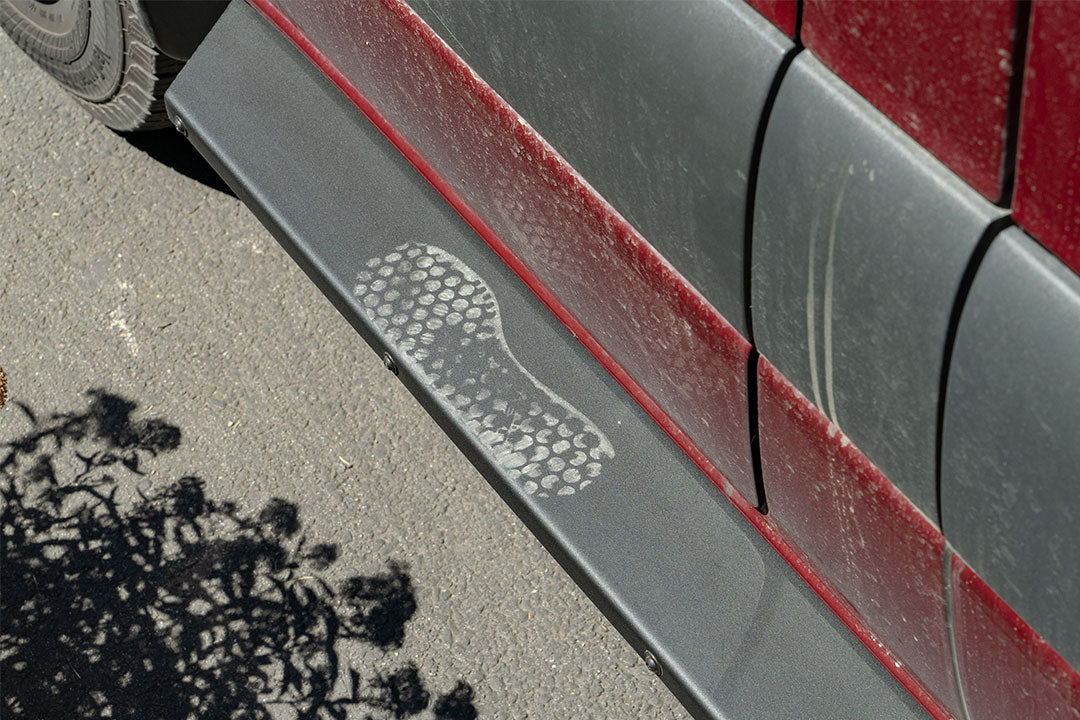

• Signature stealth design with a 4" wide step surface for easy entry
• 1/8" steel step surfaces attach to the pinch seam with stainless hardware

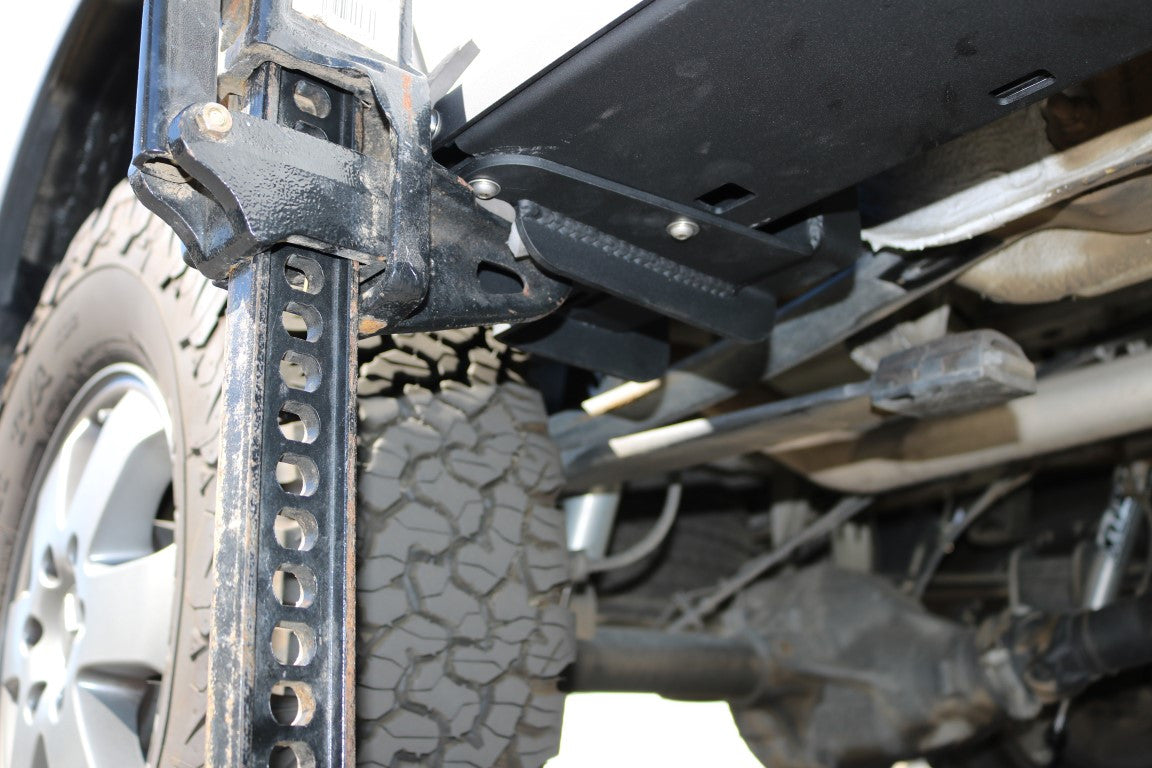

• 3/16" steel frame mounts bolt to the chassis in three locations
• Adds easy-to-access vehicle lifting points and chassis rigidity

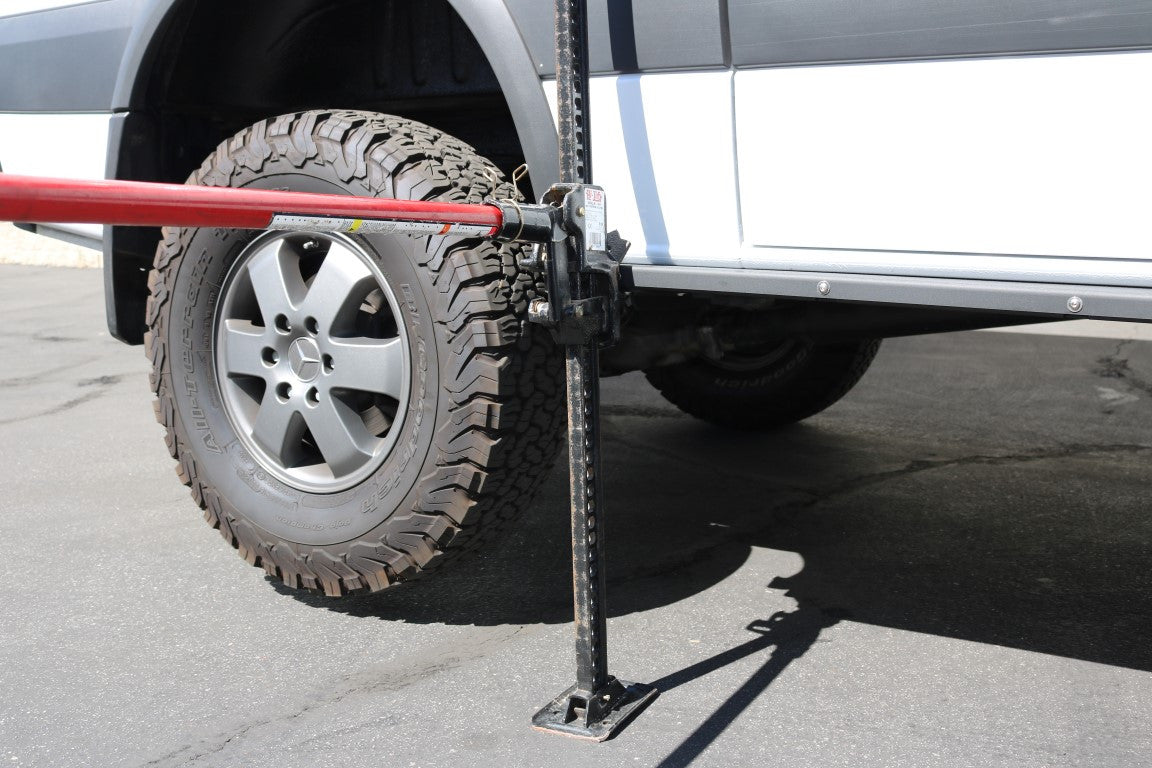

• Integrated Hi-Lift jack slots for fast, safe recovery and tire changes
• Drilling at the pinch seam and underbody gussets required for installation
• Units produced after 8/22/2024 fit both lifted and non-lifted vans

Included Components

• 3/16" Steel - Front, Middle and Rear Frame Mounts - Matte Black Textured Powder Coat Finish
• 1/8" Steel - Steps - Matte Black Textured Powder Coat Finish
• Stainless Steel Mounting Hardware, coated with AL2000 black finish for a stealth look
• Front subframe tie in mounts are specific to lift height, please choose the correct lift height when ordering.

Important Notes

• Stock Ride Height Only
• Not compatible with 2" Van Compass Striker lift.
• May be installed on a 2WD when equipped with a Striker lift kit. Select non-lifted AWD height sliders.
• Not compatible with Storyteller MODE or Winnebago Revel

Installation Instructions

• 2023+ Sprinter rocker guard installation instructions (Production date after 8/22/2024)
• 2023+ Sprinter rocker guard installation instructions

Labor Time

Recommended shop labor time: 6 hours.

Specifications

• Attachment Type: Bolt On
• Color: Black
• Configuration: One Piece
• Material: Steel
