2023-2026 Sprinter 2500/3500XD AWD Rocker Panel Guard (4109)

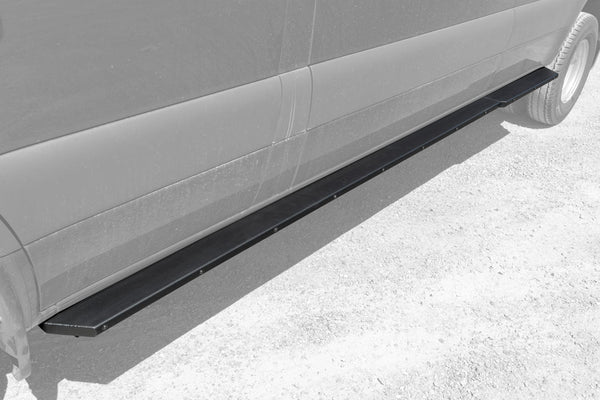

More than just a step, these Van Compass Rocker Guards add functional protection, chassis rigidity, and easy access to your 170" wheelbase AWD Sprinter in sleek style. The signature stealth design creates an attractive 4" wide step, while integrated Hi-Lift jack slots make off-road recovery and tire changes quick and safe. Robust construction protects the body and adds easy-to-access vehicle lifting points.

Features

• 4" wide step with an additional 1" of width at the rear for tight-trail protection
• Main step surfaces built from 1/8" steel; frame mounts from 3/16" steel
• Mounts to the chassis in three locations to increase torsional rigidity
• Integrated Hi-Lift jack slots for safe recovery and tire changes
• Stainless steel hardware at the pinch seam
• Drilling at the pinch seam and underbody gussets required for installation

Included Components

• Rocker Guard step plates, 1/8" Steel, Black Powdercoat
• Front, 2x Middle and Rear Chassis Tie In Brackets, 3/16" Steel, Black Powdercoat
• Stainless Mounting hardware with AL2000 black finish for step plates

Important Notes

• NOT COMPATIBLE with Winnebago Boldt, water tanks are in the way.
• These ship in a very long crate; non-commercial addresses may be subject to additional delivery fees.
• Not compatible with Winnebago BOLDT
• Fits lifted and non-lifted applications.

Labor Time

Recommended shop labor time: 6 hours.

Specifications

• Attachment Type: Bolt On
• Color: Black
• Material: Steel
