2023-2026 Sprinter 2500 AWD Striker Complete 2" Lift Kit (7219)

Push deeper into the backcountry with the Van Compass complete Striker 2" lift kit for the AWD Sprinter. Developed to lift the van with as few compromises as possible, it uses machined and welded spacers to relocate the front subframe so the CVs, tie rods, and control arms all cycle in their factory geometry, while a taller Mini Leaf Spring pack, longer sway bar links, shock relocation brackets, and bump stop spacers keep the rear working cleanly. With the right wheel offset and fender trimming you can run a 35x12.50 tire for a huge gain in traction and ground clearance.

Features

• Complete front and rear bolt-on system for the AWD Sprinter
• Machined and welded spacers relocate the front subframe to preserve factory CV, tie rod, and control arm geometry
• Taller Mini Leaf Spring pack with longer sway bar links, shock relocation brackets, and bump stop spacers in the rear
• Clears up to a 35x12.50 tire with proper offset and fender trimming
• 2" of lift front and rear for added clearance and a more capable stance

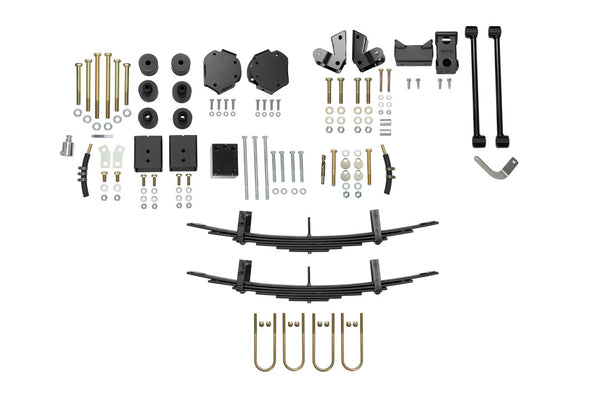

Included Components

• Front 2" strut spacers
• Front 2" subframe drop spacers
• Engine and transmission mount 2" lift spacers
• Front differential re-clocking¬¨‚Ćcams
• CNC Machined 2" steering shaft extension
• Low pressure power steering hose extension
• Front brake line relocation brackets
• 6-leaf Mini Leaf Spring pack
• Extended rear sway bar links
• Rear lower shock relocation brackets
• Rear bump stop drop brackets
• Wind assist or headlight leveling sensor bracket
• All necessary hardware and detailed instructions

Important Notes

• Up to 315/70R17 Tire with fender trimming
• 38 mm Offset Wheels Recommended
• Up to 35x12.50 Tire with fender trimming
• Raises Front 2"
• Raises Rear 2"
• +38 mm Offset Wheels Recommended
• 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.

Installation Instructions

• 2023+ VS30 AWD Striker 2" Front Kit Installation Instructions
• 2019+ VS30 4x4 and AWD Striker 2" Rear Kit Installation Instructions

Labor Time

Recommended shop labor time: 12 hours.

Specifications

• Grade Type: Regular
• Maximum Lift: 2.0 IN
• Maximum Lift Front: 2 IN
• Maximum Lift Rear: 2 IN
