2023-2026 Sprinter 2500 AWD Suspension Lift Kit (7222-LM)

The Van Compass Stage 6.3 system sits at the top of the Sprinter AWD lineup, combining adjustability, stability, compliance and clearance in one apex package. The Striker 2" lift kit raises the van while preserving the original suspension geometry, so you get every benefit of a lifted vehicle, room for larger tires, a more aggressive stance and improved ground clearance, with no penalty to handling, stability or comfort.

Features

• Aggressive 2" taller stance for larger tires and improved approach, breakover and departure angles
• VC-tuned Falcon 3.3 adjustable shocks with 10 intuitive firmness settings via an easily accessed Fast Adjust knob
• Mini leaf spring pack adds 2" of rear lift, increases spring rate and restores ride height while keeping factory wheel position
• Included U-bolts and friction-reducing glide pads ensure a quick, quiet install just like the OEM springs
• Progressive foam Bump Buddy jounce bumpers add smoother spring progression and bottom-out resistance
• For users who want the most capability and adjustability from their van

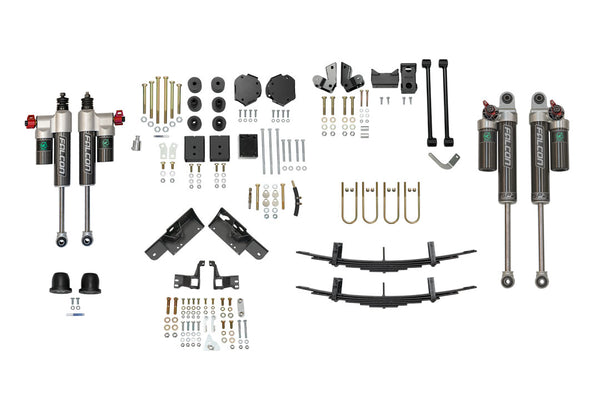

Included Components

• Striker 2" Front and Rear Lift Kit
• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 3.3 Fast Adjust Rear Shocks with SP2
• Rear Mini Leaf Spring Pack
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Up to 35x12.50 Tire
• Raises Front 2"
• Raises Rear 2"
• +38 mm Offset Wheels Recommended
• Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• 2023+ VS30 AWD Striker 2" Front Kit Installation Instructions
• 2019+ VS30 4x4 and AWD Striker 2" Rear Kit Installation Instructions
• 2015+ VS30 4x4 Falcon Front Shock Installation Instructions
• NCV3, VS30 Falcon 3.3 Rear Shock Installation Instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 17 hours.

Specifications

• Maximum Lift: 2.0 IN
