2023-2026 Sprinter 3500XD AWD Suspension Lift Kit (7235-MH)

The Van Compass Stage 6.3 Dually system sits at the top of the Sprinter 3500XD AWD lineup, combining adjustability, stability, compliance and clearance in one apex package. The Striker 2" lift kit raises the van while preserving the original suspension geometry, so you get every benefit of a lifted vehicle, room for larger tires, a more aggressive stance and improved ground clearance, with no penalty to handling, stability or comfort.

Features

• Aggressive 2" taller stance for larger tires and improved approach, breakover and departure angles
• VC-tuned Falcon 3.3 adjustable shocks with 10 intuitive firmness settings via an easily accessed Fast Adjust knob
• Opti-Rate leaf spring pack restores ride height and corrects sag while fitting multiple rear axle weights
• Maintains factory wheel position and leaf spring geometry while restoring up-travel on a heavy van
• Included U-bolts and friction-reducing glide pads ensure a quick, quiet install just like the OEM springs
• Progressive foam Bump Buddy jounce bumpers add smoother spring progression and bottom-out resistance

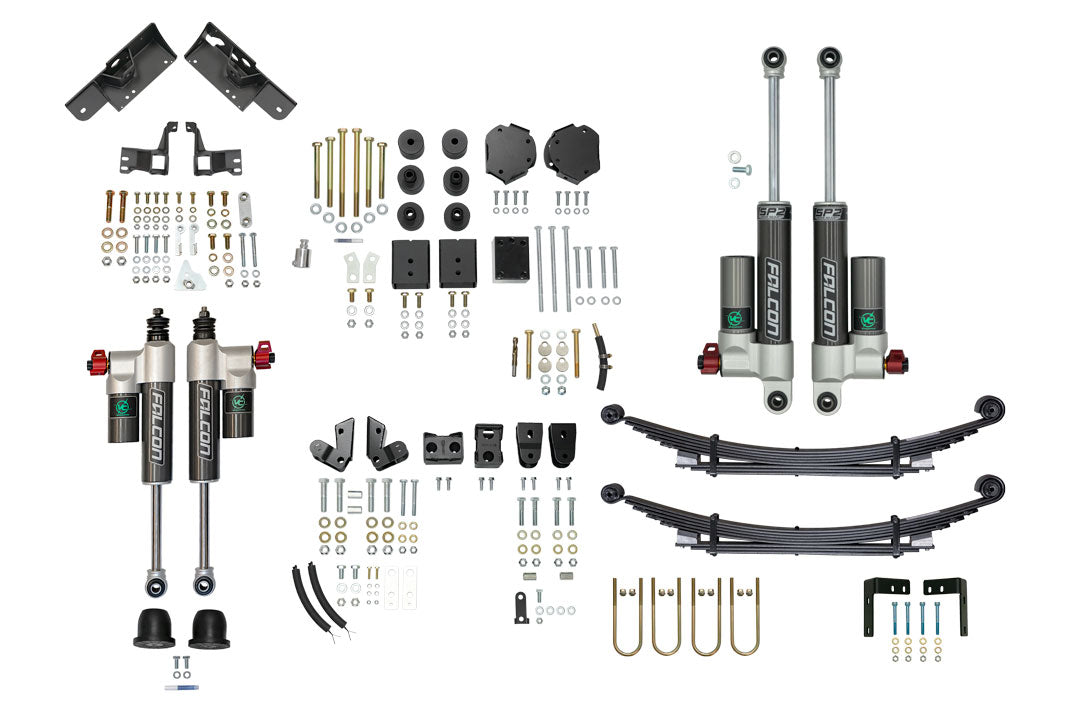

Included Components

• Striker 3500 4x4 2" Lift Front and Rear
• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 3.3 Fast Adjust Rear Shocks with SP2
• Opti-Rate Full Replacement Rear Leaf Spring System
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Raises Front 2"
• Raises Rear 2"
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• 2023+ VS30 Striker AWD Front Lift Kit Installation Instructions
• 2007+ Sprinter 3500 4WD Rear Lift Kit Installation Instructions
• 2019+ VS30 4x4 Falcon Front Shock Installation Instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions
• Falcon 3.3 DRW Rear Shock Installation Instructions
• Falcon 3.3 Shock Settings Guide
• Sprinter 3500 4WD Rear Spring Installation Instructions

Labor Time

Recommended shop labor time: 17 hours.

Specifications

• Grade Type: Performance
• Maximum Lift: 2.0 IN
