2023-2025 Superduty 3.5" SST Lift Kit (69-23350)

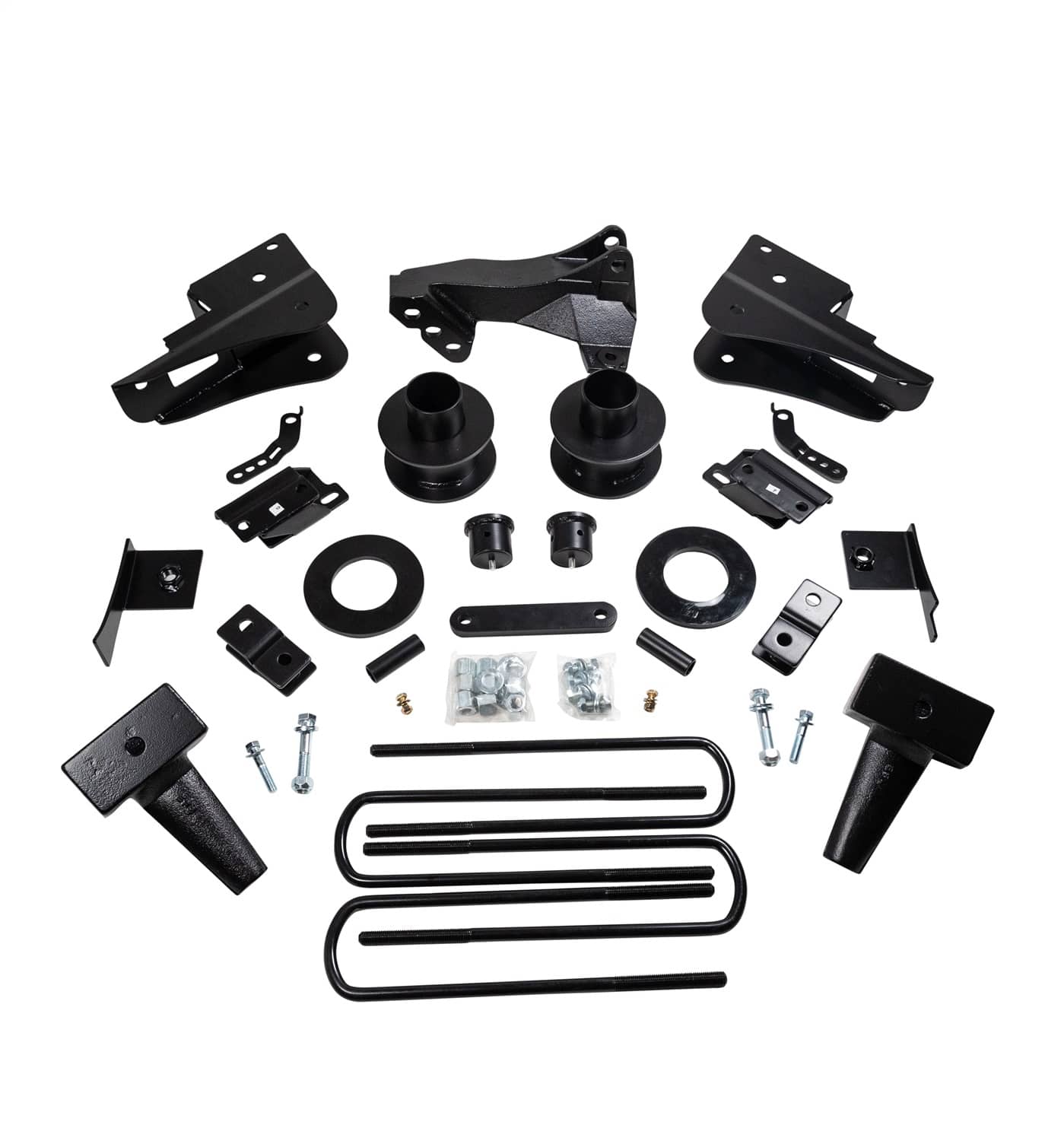

ReadyLIFT Suspension proudly announces our all-new 3.5" SST Lift Kit engineered specifically for the Ford Super Duty trucks. This lift kit raises the vehicle 3.5 inches in the front, allowing for wheel and tire combinations up to 37 inches while keeping the smooth original equipment manufacturer (OEM) ride, drivability, and off-road performance. The kit includes 3.5 inch coil spring extensions with sound isolators, an OEM-style track bar drop bracket, front bump stop extensions, shock extension brackets, and a pair of the all-new radius arm drop brackets to maintain proper axle geometry. The kit includes 4 inch tall OEM-style rear blocks with integrated bump stop landings to maintain a slight rake for towing or hauling. This bolt-on SST lift kit is simple to install without frame modifications, offering the cleanest way to run a 37 inch tire while maintaining OE components and ride quality.

Features

• 3.5 inch front lift and rear lift blocks provide a lifted stance
• Includes all-new radius arm drop brackets to maintain proper axle geometry
• Features an OEM-style track bar relocation bracket for improved steering
• Includes heavy-duty ReadyLIFT coil spring spacers with spring isolators and retains the factory springs
• Includes sway bar drop brackets, bump stop extensions, and brake line brackets
• OEM Style Cast Rear Blocks with integrated bump stop landings
• No cutting of OEM parts or welding required
• Allows for wheel and tire combinations up to 37 inches

Specs

• Front Lift: 3.5 inches
• Rear Lift: 2.0 inches (from OEM block equivalent - 4 inch tall blocks provided)
• Coil Spring Spacers: 3.5 inches (with sound isolators)
• Rear Blocks: OEM Style Cast Rear Blocks (4 inches tall)

Compatibility Notes

• Fits Ford Super Duty F250 and F350 4WD models from 2023 to 2025.
• Does not fit dually applications.
• Does not fit trucks with overload springs (you will need to source new overload-length U-bolts to fit).
• Does not fit Tremor models (For Tremor models, please see 69-23250 or 69-23251).
• 2023-2025 Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket (PN: 67-23410).
• Recommended tire size: 37" - 12.5" on a 17" and up x 9" wide wheel with +18 offset / 6" backspacing (minor trimming of the front valance may be necessary).

Notes

• The product is backed by a ReadyLIFT ReadyGuard Powertrain warranty.
• Your vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
