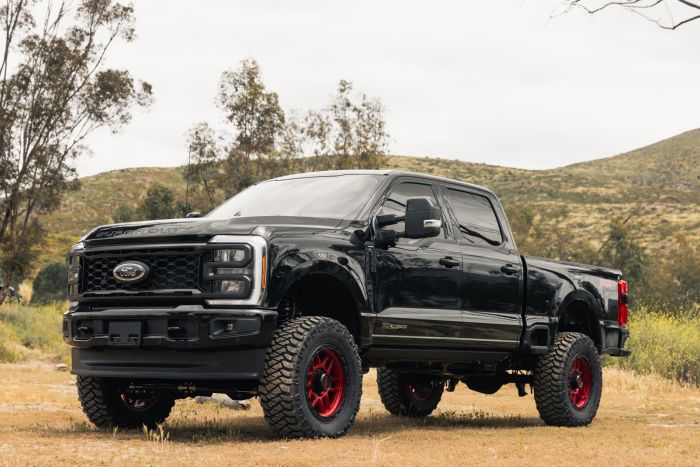

2023-2025 Superduty 4WD 6" Coil Spring Lift Kit w/ Falcon Shocks (49-23620)

The ReadyLIFT 6-inch Coil Spring Lift Kit is a comprehensive suspension system designed to lift the front of the truck by 6 inches and includes premium high-performance Falcon 1.1 Monotube series shocks on all four corners. This system is engineered to deliver a smooth and controlled ride while allowing for larger tires. It features Radius Arm Drops for correct caster angle and a track bar relocation bracket to maintain proper suspension geometry. The kit is a bolt-on solution that requires no structural modifications.

Features

• Provides 6 inches of front coil spring lift.
• Includes four Falcon 1.1 Monotube shocks (front and rear).
• Features Radius Arm Drops for correct caster angle.
• Includes a Track Bar Relocation Bracket.
• Bolt-on lift kit, requiring no structural modifications.

Notes

• Tremor versions will not gain the full 6 inches over stock ride height.
• Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket (PN 67-23410).
• Currently does not have mounting hardware to work with smart hitch and auto headlight adjuster equipped vehicles.

Compatibility Notes

• Designed for diesel applications only (Power Stroke 4WD).
• Not recommended for 2WD or gas trucks.
• Works for trucks with rear single-wheel only.
• Single Cab configuration has not been validated for fitment and drivability.

Tire Fitment

• Allows for up to 37-inch tall tires on 9-inch wide wheels with +18 offset.
• Recommended tire size is 37 inches by 12.5 inches.
• Recommended wheel: 17 inches and up x 9 inches wide, +25 offset / 6 inches backspacing (minor trimming of the front valance may be necessary).

Specs

• Front Lift: 6.0 inches (maximum)
• Maximum Tire Diameter: 37 inches
• Shock Type: Falcon 1.1 Monotube Front and Rear Shocks

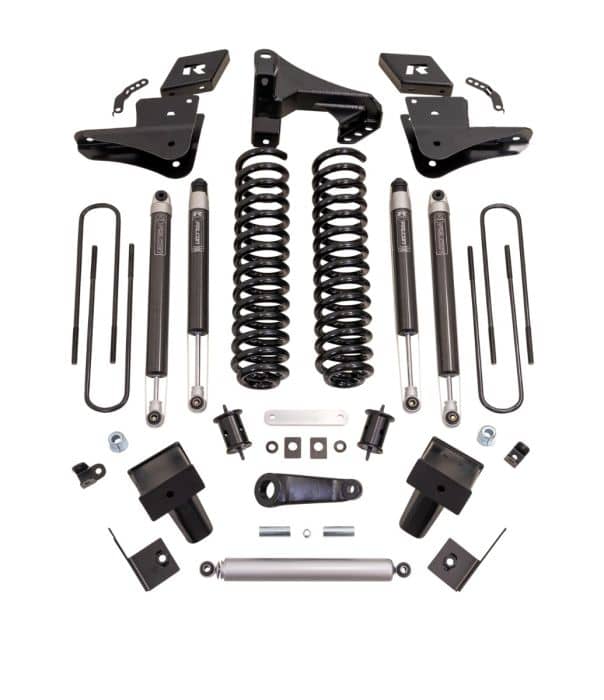

• Kit Contents: 6-inch Lift Springs, Falcon 1.1 Monotube Front and Rear Shocks, Track Bar Relocation Bracket, Radius Arm Drops, Sway Bar Drops, Bump Stop Extensions, Carrier Bearing Drop, Front Brake Line Brackets, Fabricated Rear Lift Blocks, and a Hardware Pack.
