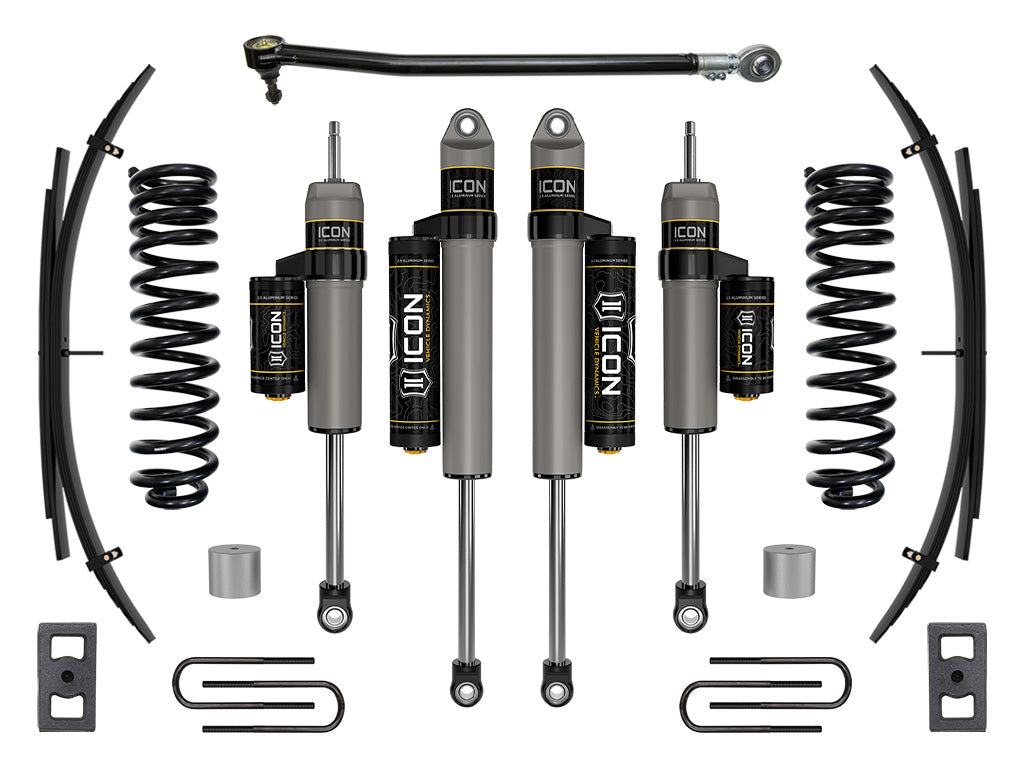

2023 Superduty 2.5 Front and Rear Lift Kit (ICOK62593L)

Level up your 2023 Superduty with this complete ICON suspension system. 2.5" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• ICON engineered dual rate coil springs provide 2.5" of front lift over stock
• Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series shocks
• On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
• Application specific alignment cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won’t sag or break
• No drive shaft modifications required
• Shocks are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting or welding necessary for install

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)

Important Notes

• Only fits 4WD models
• Will not fit F-350/F-450 Cab & Chassis models
• Rare Cases Require A 2.6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split
• Fits Single Rear Wheel Models Only
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Springs Are Rated For Gasoline Engines
• Lift Heights Based On 4WD Crew Cab Gas
• If equipped with Dynamic Bending Headlamps and/or Onboard scales part # 611081 is also required
• Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
• Will not fit 2024 models
• Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
• Trucks equipped with Tremor package with have front lift height of 1.5" over stock
• Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry

Manufacturer Description

The ICON 2.5" suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 3 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, 2.5 Aluminum Series piggyback reservoir front and rear shocks, adjustable front track bar with massive FK rod end, alignment cams for adding caster, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap. ICON 2.5" piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
