2023-2025 Superduty 3" Lift Kit with FOX 2.0 Performance Shocks (BDS2200FS)

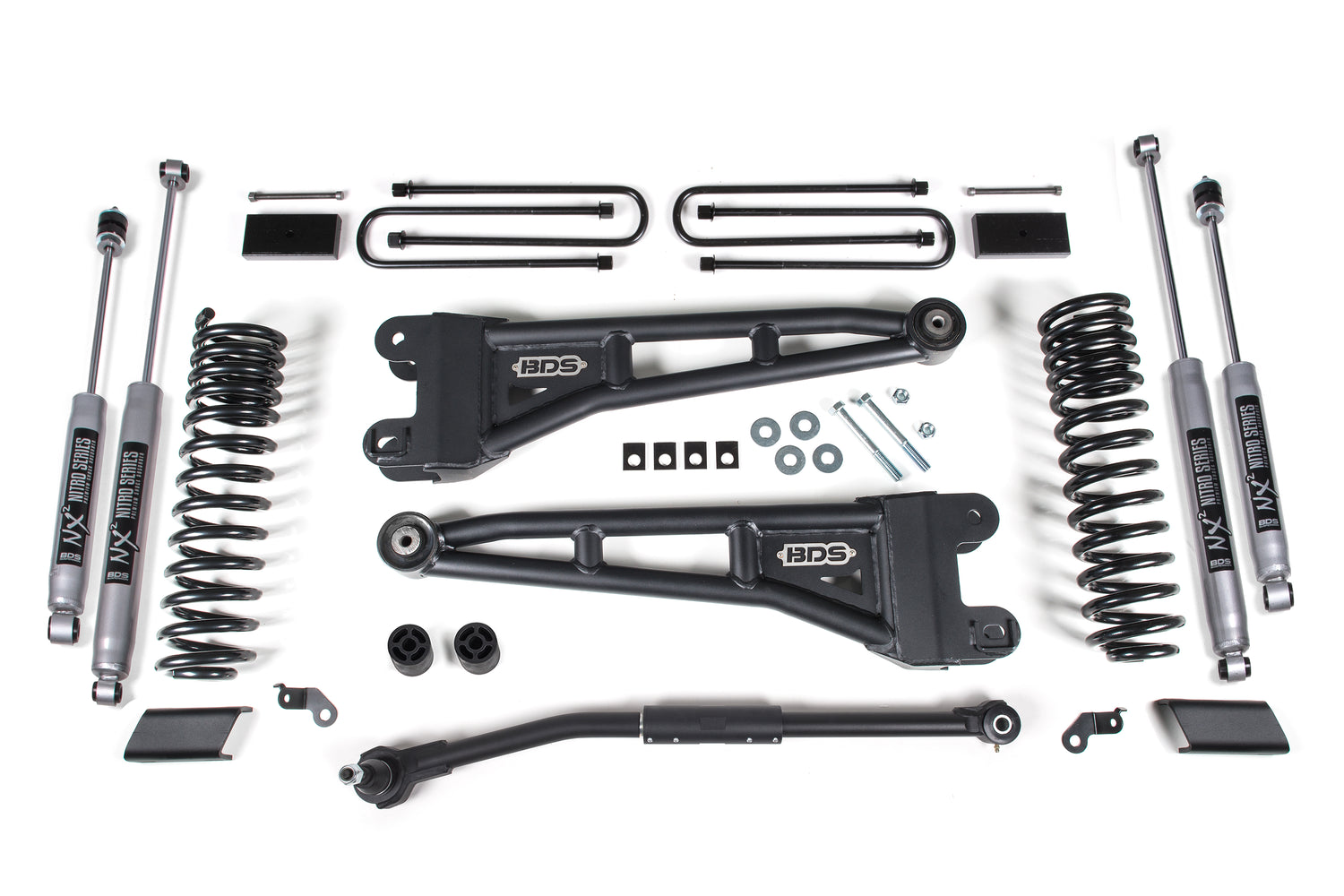

Level out your 2023-2025 Ford Super Duty diesel with this BDS Suspension 3" radius arm lift kit, with clearance for up to 35" tires. Up front it runs diesel-specific Pro-Ride coil springs, heavy-duty tubular radius arms with caster adjustment, a high-strength 1-3/8" solid steel adjustable track bar to recenter the front axle, sway bar relocation, brake line brackets and tuned FOX 2.0 Performance shocks. The rear uses a high-strength fabricated lift block, longer u-bolts and matching shocks.

Features

• Easy, 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Adjustable solid steel track bar recenters the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance
• 2-inch Impact extruded aluminum shock body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 1 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Vehicles with radius arm mounted ride height sensors require BDS123303.
• Designed for diesel models; can be installed on gas trucks but will achieve an additional 1/2 inch front ride height.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Due to taller factory ride height, Tremor models will not net full advertised lift; final ride height matches standard models.
• Larger tires on stock wheels are not recommended due to interference with brake line, radius arm and sway bar. Use the specs in the wheel and tire fitment section.
• Trucks without a top-mounted overload spring require (x4) UBT4031, sold separately.

Includes

• BDS013108, 2017-2024 F250/F350 1 inchRear Block Kit (UPC 658848613052)
• BDS013261, 2020-2024 F250/350 2.5 inch Front Box Kit (UPC 658848613236)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair (UPC 711745612709)
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
• FOX98224717, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
