2023-2025 Superduty 3" FOX 2.5 Coilover Conversion Kit (BDS2201FPE)

Take your 2023-2025 Ford Super Duty diesel to the next level with this BDS Suspension 3" radius arm lift kit with FOX 2.5 Performance Elite coil-over conversion, with clearance for up to 35" tires. Up front it runs the FOX 2.5 coil-overs, heavy-duty tubular radius arms with caster adjustment, a high-strength 1-3/8" solid steel adjustable track bar to recenter the front axle, sway bar relocation and brake line brackets. The FOX 2.5 shocks add a remote reservoir for cooling and a Dual Speed Compression adjuster with 10 low-speed and 12 high-speed settings. The rear uses a high-strength fabricated lift block, longer u-bolts and matching shocks.

Features

• Easy, 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Adjustable solid steel track bar recenters the front axle
• Fabricated steel blocks provide level stance from front to rear
• FOX 2.5 Performance Elite coil-overs with remote reservoir and Dual Speed Compression adjuster (10 low-speed / 12 high-speed settings)

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 1 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Vehicles with radius arm mounted ride height sensors require BDS123303.
• Designed for diesel models; can be installed on gas trucks but will achieve an additional 1/2 inch front ride height.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Due to taller factory ride height, Tremor models will not net full advertised lift; final ride height matches standard models.
• Larger tires on stock wheels are not recommended due to interference with brake line, radius arm and sway bar. Use the specs in the wheel and tire fitment section.
• Trucks without a top-mounted overload spring require (x4) UBT4031, sold separately.

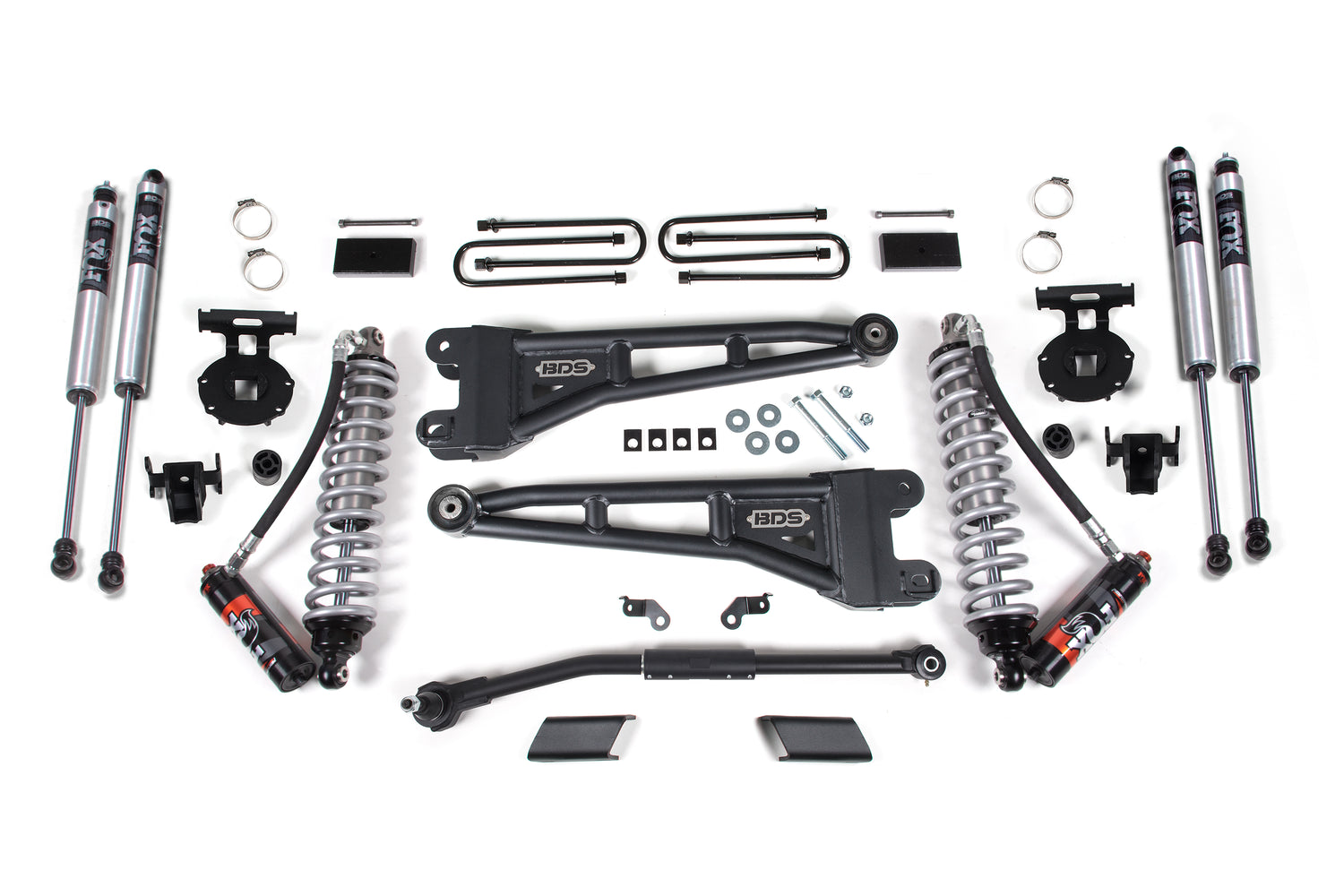

Includes

• BDS013108, 2017-2024 F250/F350 1 inchRear Block Kit (UPC 658848613052)
• BDS013261, 2020-2024 F250/350 2.5 inch Front Box Kit (UPC 658848613236)
• BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair (UPC 711745612709)
• BDS123613, 2017-2024 Super Duty Coil-over Mount Kit (UPC 711745604407)
• FOX88406426, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2.5 inch Lift, Dual Speed Compression Adjust
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
• FOX98224717, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
