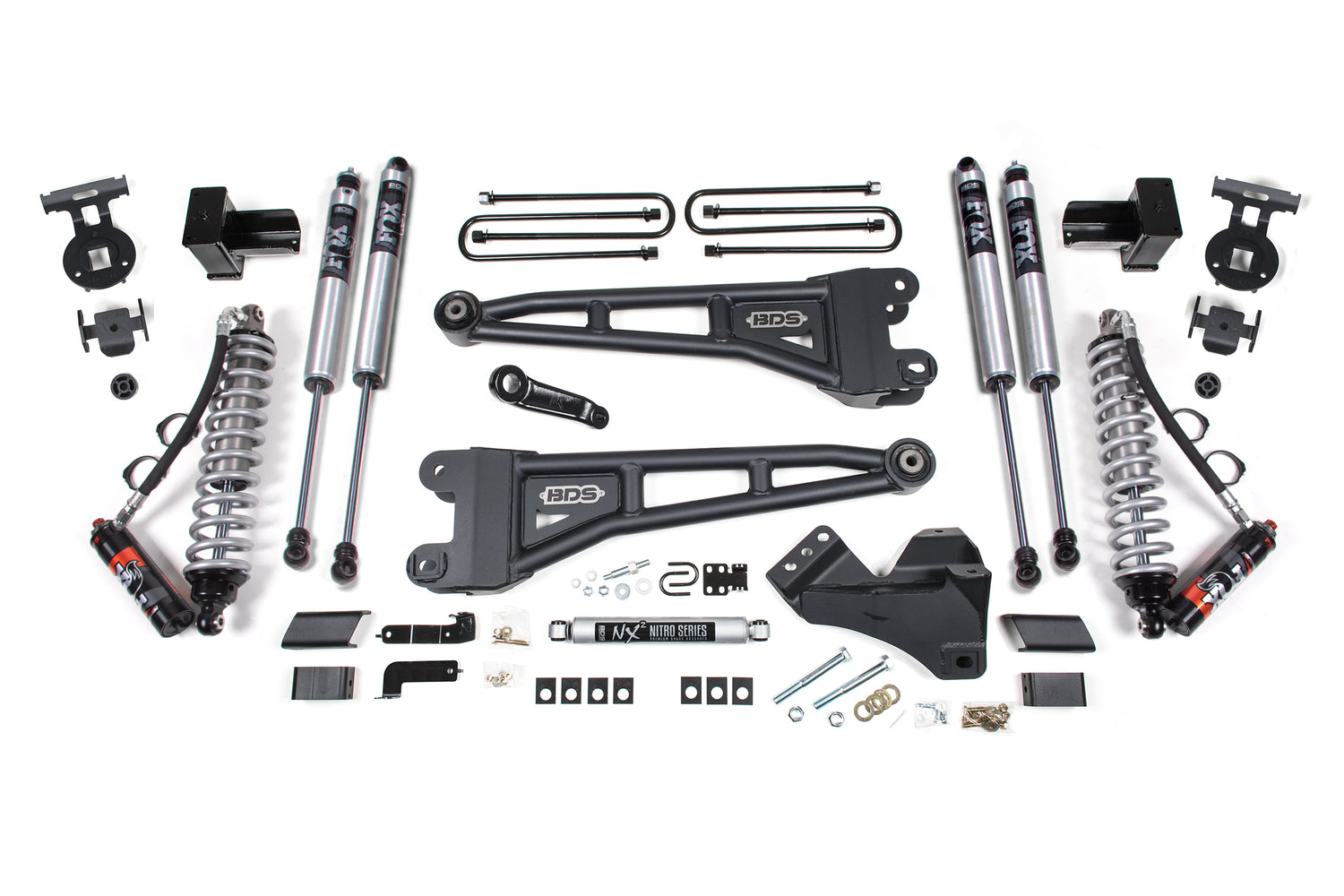

2023-2025 Superduty 5" FOX 2.5 Coilover Conversion Kit (BDS2203FPE)

Upgrade your 2023-2025 Ford F250/F350 Super Duty diesel dually with this BDS Suspension 5" radius arm lift kit and FOX 2.5 Performance Elite coil-over conversion, with clearance for up to 37" tires. Up front it runs the FOX 2.5 coil-overs, heavy-duty tubular radius arms with caster adjustment, a forged drop pitman arm and track bar drop bracket for steering correction, sway bar relocation and brake line brackets. The FOX 2.5 shocks add a remote reservoir for cooling and a Dual Speed Compression adjuster with 10 low-speed and 12 high-speed settings. The rear uses a high-strength fabricated lift block, longer u-bolts, brake line brackets and matching FOX shocks.

Features

• FOX 2.5 coil-over mounts in the factory coil bucket location
• Adds a secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments
• Fabricated steel construction for high strength; designed for correct pinion angles
• 2-inch Impact extruded aluminum shock body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Vehicles with radius arm mounted ride height sensors require BDS123303.
• Ford recommends replacing the pitman arm nut each time it is removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• Trucks with a 2-piece rear driveshaft may require carrier bearing drop kit BDS123402.
• Due to taller factory ride height, Tremor models will not net full advertised lift; final ride height matches standard models.
• Larger tires on stock wheels are not recommended due to interference with brake line, radius arm and sway bar. Use the specs in the wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Trucks without top-mounted overload springs require (4) UBT4028.
• Vehicles with leaf spring ride height sensors must select the rear block option.

Includes

• BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit (UPC 658848613458)
• BDS013516, 2017-2024 F250 5 inch Rear Block Kit -3 Leaf Main (UPC 658848613595)
• BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair (UPC 711745612709)
• BDS123613, 2017-2024 Super Duty Coil-over Mount Kit (UPC 711745604407)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX88406427, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 4 inch Lift, Dual Speed Compression Adjust
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
