2023-2025 Superduty 5" Lift Kit with NX2 Nitro Shocks (BDS2208H)

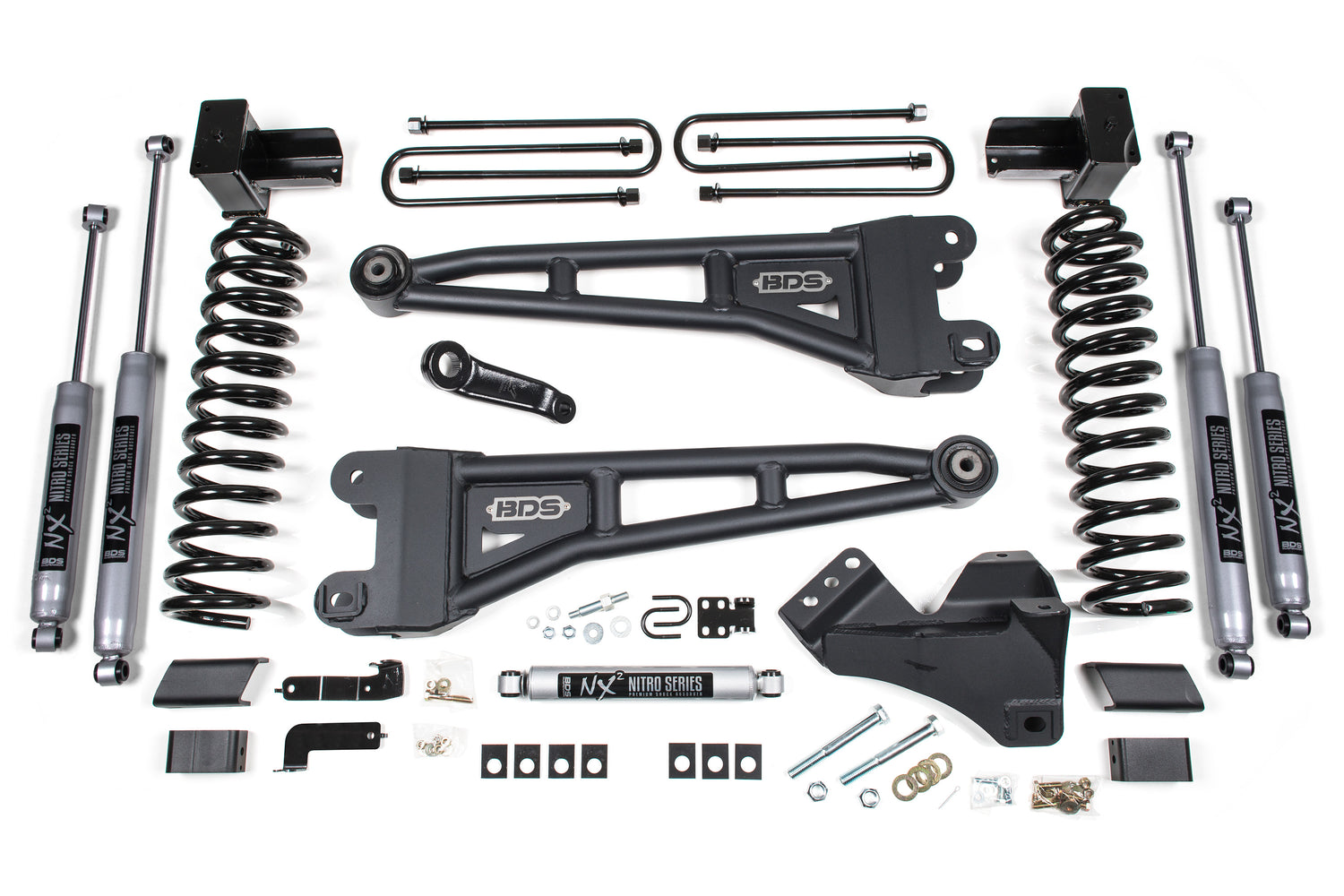

Improve the ride on your 2023-2025 Ford Super Duty diesel with this BDS Suspension 5" radius arm lift kit, with clearance for up to 37" tires. Up front it runs diesel-specific Pro-Ride coil springs, heavy-duty tubular radius arms with caster adjustment, a forged drop pitman arm and track bar drop bracket for steering correction, sway bar relocation, brake line brackets and tuned NX2 Nitro shocks. The rear uses a high-strength fabricated lift block, longer u-bolts, brake line brackets and matching shocks.

Features

• Easy, 100 percent bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance
• Add-a-leaf reduces axle wrap for a more controlled, stable feel
• Multi-leaf progressive design for a smooth ride; maintains factory payload weight ratings
• Anti-friction pads provide a smooth, quiet ride
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Vehicles with radius arm mounted ride height sensors require BDS123303.
• Ford recommends replacing the pitman arm nut each time it is removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• Trucks with a 2-piece rear driveshaft may require carrier bearing drop kit BDS123402.
• Due to taller factory ride height, Tremor models will not net full advertised lift; final ride height matches standard models.
• Larger tires on stock wheels are not recommended due to interference with brake line, radius arm and sway bar. Use the specs in the wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Vehicles with leaf spring ride height sensors must select the rear block option.

Includes

• BDS003639, 2017-2024 Super Duty 6 inch Rear Leaf Spring (UPC 658848611409)
• BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit (UPC 658848613458)
• BDS013438, 2017-2024 Ford F250/F350 4 inch Rear Leaf Spring Box Kit (UPC 658848613540)
• BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel (UPC 658848616527)
• BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair (UPC 711745612709)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 (UPC 711745609495)
• BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609563)
